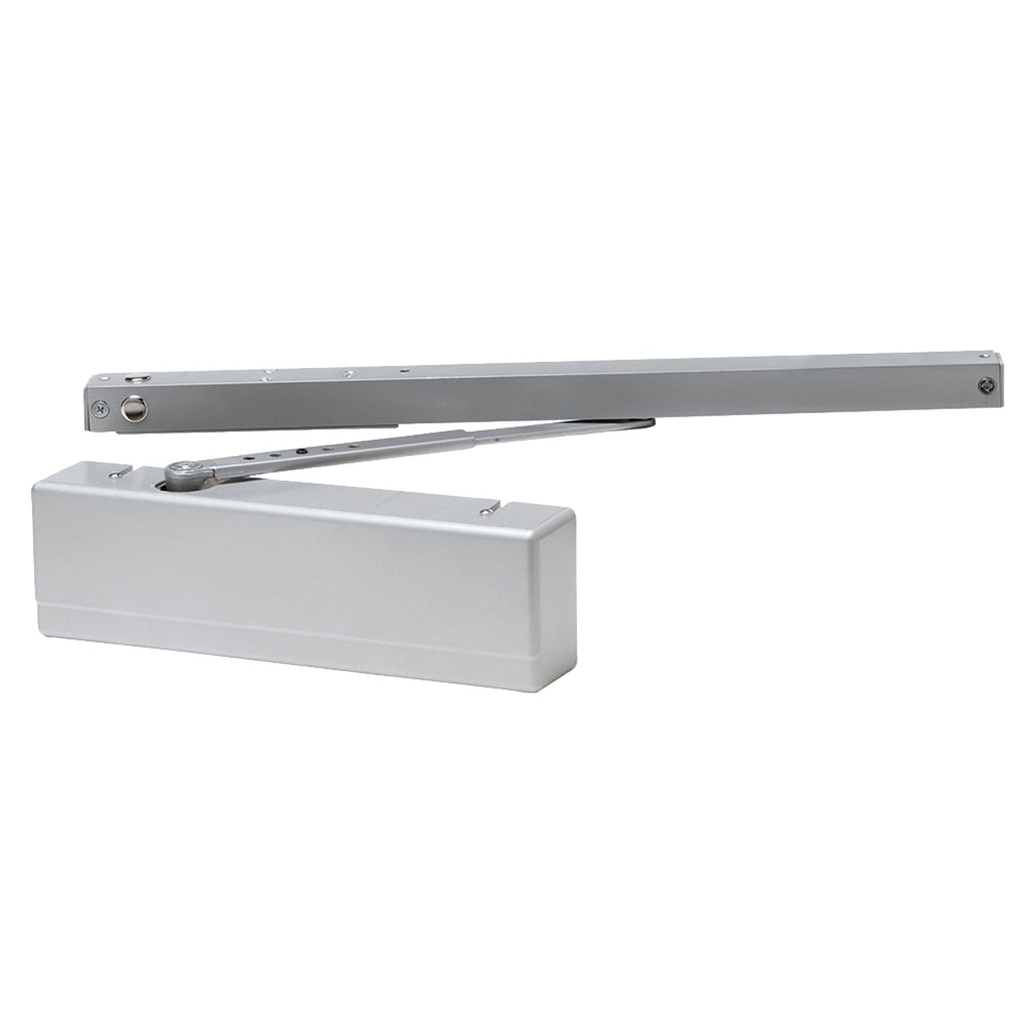

Sargent 351 PHTB Powerglide® Door Closer | Push Side Hold Open Track Arm with Bumper

The Sargent 351 PHTB Door Closer is the ultimate heavy-duty solution for high-traffic commercial openings that require a clean, low-profile aesthetic without compromising on control. Part of the world-class Powerglide® series, the 351 PHTB features a Push Side Hold Open Track Arm with an integrated Track Bumper. This specialized track system mounts directly to the frame stop, providing a sleek appearance by eliminating traditional projecting arms while offering a variable hold-open range (85° – 95°) and a cushioned bumper to assist the hydraulic backcheck.

Constructed from a unique 14% silicon aluminum alloy, the one-piece die-cast body offers superior strength and wear resistance, certified to ANSI/BHMA Grade 1 standards. This non-handed closer features adjustable spring power from Size 1 to 6, making it a versatile choice for interior doors up to 5'0" wide. While the track design is aesthetically superior, please note that Push Side Track applications generally do not meet ADA accessibility requirements due to the increased opening force required.

Advanced Architectural Performance & Safety

• Integrated Track Bumper: The PHTB track includes a specialized bumper that assists the backcheck by cushioning the door near its maximum opening angle (95°). This protects the door and hardware from damage during forceful opening cycles.
• Variable Hold Open Function: The adjustable holder mounted within the track allows the door to be secured in an open position, which is ideal for high-frequency transition periods or moving equipment.

• Precision Hydraulic Control: A massive 1-1/2" diameter piston provides industrial-strength control. Separate, low-sensitivity brass valves allow for independent regulation of closing speed, latching speed, and backcheck intensity.

• Extreme Temperature Reliability: Pre-filled with all-weather hydraulic fluid, ensuring consistent operation in temperatures ranging from sub-zero winters to scorching summers without manual adjustment.

• Vandal Resistant Engineering: All adjustment valves are controlled by an 1/8" Allen wrench and are captivated within the body to prevent unauthorized removal or tampering.

Technical Specifications

Installation & Architectural Compatibility

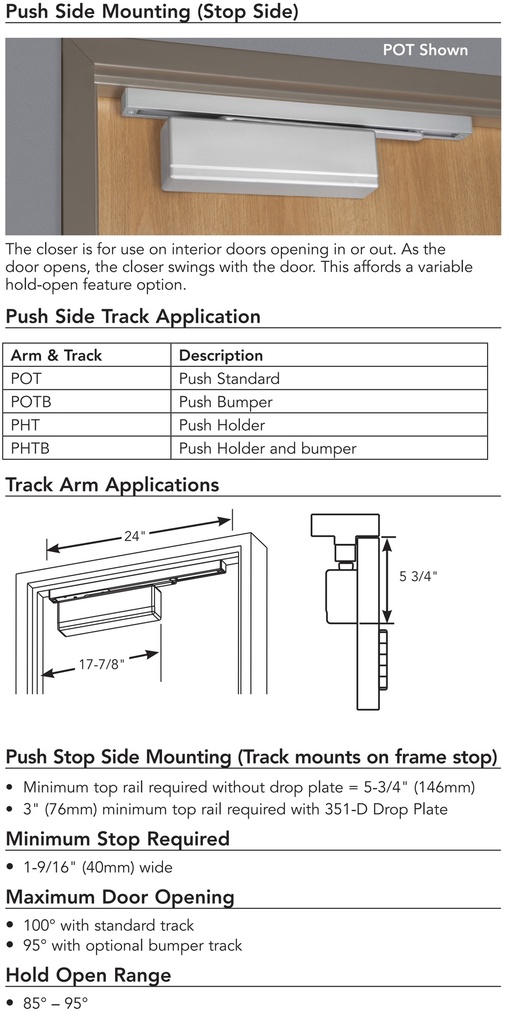

The Sargent 351 PHTB is designed for Push Side Mounting, where the track is installed on the frame stop. This application requires a minimum top rail of 5-3/4"; however, it can be installed on rails as narrow as 3" when using a 351-D Drop Plate. To ensure a rock-solid attachment to wood or mineral core doors, this unit is supplied with Sargent thru bolts.

• Standard Finishes: Available at DoorwaysPlus.com in high-durability architectural enamel: Aluminum (EN), Dark Bronze (EB), and Brass (EAB). Additional powder-coated finishes (ED, EP) are available for all exposed surfaces.

• MicroShield® Technology: Available with an optional antimicrobial silver-based finish that permanently suppresses the growth of bacteria, algae, fungus, and mold.

• Safety Compliance: UL/cUL listed for use on fire-rated doors (up to 3 hours) and compliant with UL10C and UBC 7-2 positive pressure standards.
