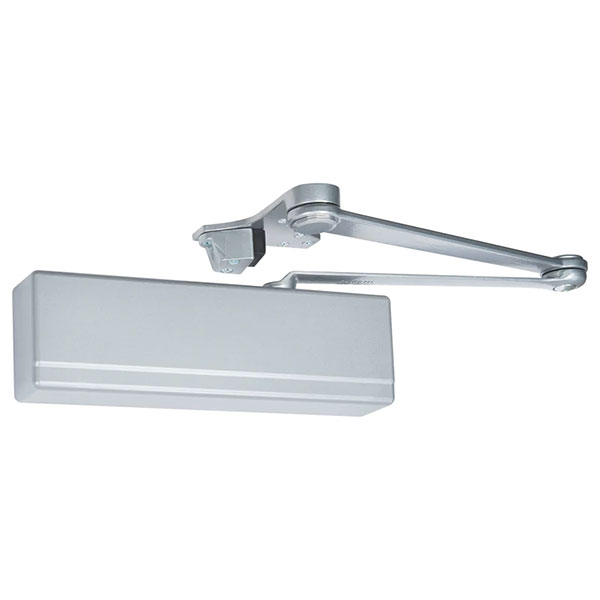

Sargent 351 CPS Powerglide® Door Closer | Heavy Duty Parallel Arm with Compression Stop
The Sargent 351 CPS Door Closer is the definitive solution for high-traffic openings that require maximum protection for both the door and the adjacent architecture. As a standout in the Powerglide® series, the 351 CPS features a Heavy Duty Parallel Arm with an integrated Compression Stop. This specialized spring-cushioned stop provides a "dead stop" within 3 degrees of the selected opening angle (adjustable between 85° and 105°), absorbing the shock of violent openings to prevent damage to walls, frames, and hinges.
Engineered with a heavy-duty, one-piece die-cast aluminum silicon alloy body (containing 14% silicon), this ANSI/BHMA Grade 1 closer is built to withstand extreme use in environments like schools, hospitals, and busy commercial corridors. The heat-treated full closed rack and pinion mechanism ensures precise hydraulic control from a wide-open position through the final latching phase.
Elite Engineering & Durability Features

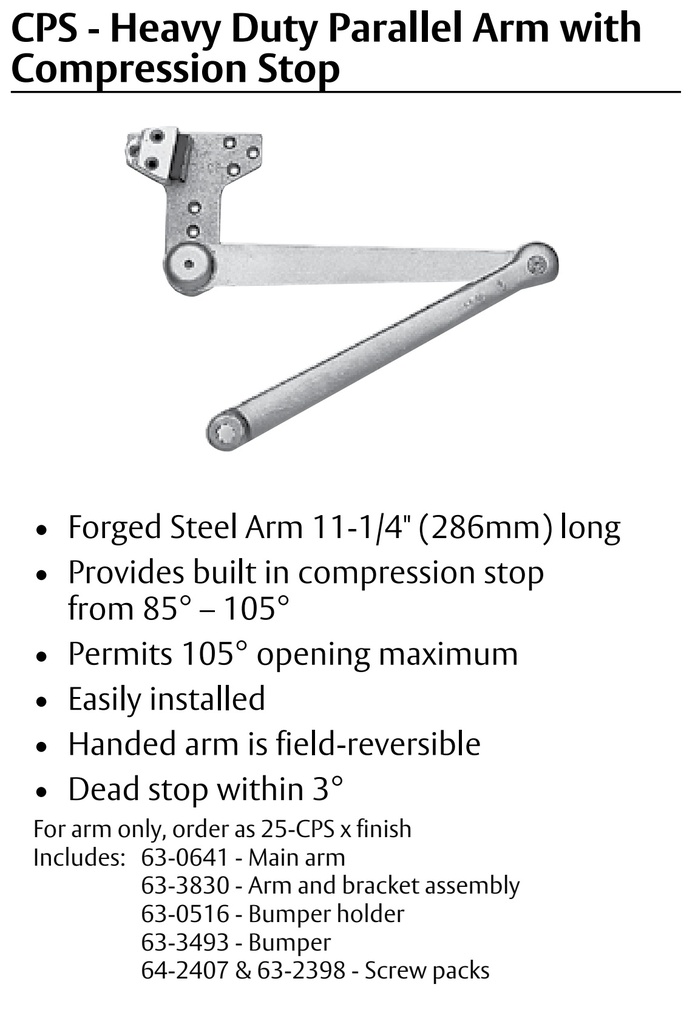

- Cushioned Compression Stop: The forged steel CPS arm includes a robust spring-cushion that prevents the door from slamming against a hard stop, significantly extending the life of the door and hardware.
- Precision Control Valves: Features separate, low-sensitivity brass valves for closing speed, latching speed, and backcheck. All valves are adjusted with a simple 1/8" Allen wrench and are captivated to prevent accidental removal.
- All-Weather Reliability: Pre-filled with all-weather hydraulic fluid, allowing the closer to maintain a consistent speed in temperatures ranging from sub-zero winters to scorching summers without manual adjustment.
- High-Strength Piston: A massive 1-1/2" diameter piston provides superior door control and the durability required to exceed 25 million cycles.
- Safety & Code Compliance: UL/cUL listed for use on fire-rated doors (up to 3 hours) and compliant with UL10C and UBC 7-2 positive pressure standards. Fully ADA compliant for easy accessibility.
- Optional MicroShield® Finishing: Available with an antimicrobial silver-based coating that permanently suppresses the growth of bacteria, algae, and mold.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 351 CPS (Compression Stop) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Arm Type | Heavy Duty Parallel Arm w/ Spring Cushion Stop |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Opening Range | Built-in stop adjustable from 85° to 105° |
| Body Material | 14% Silicon Aluminum Alloy |
| Fasteners | Packed w/ Sargent thru bolts, machine, and wood screws |
| Warranty | 25-Year Limited Mechanical Warranty |
Professional Installation & Ordering
The Sargent 351 CPS is designed for push-side parallel arm mounting and is non-handed for field versatility. For maximum security and a rock-solid attachment, this unit is supplied with Sargent thru bolts. This model is part of a modular family, with arms interchangeable across the Sargent 351, 1431, and 281 series.
Available at DoorwaysPlus.com in standard architectural enamel finishes: Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB).
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 351 Series |
| Closer Arm Type | Compression Stop |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
