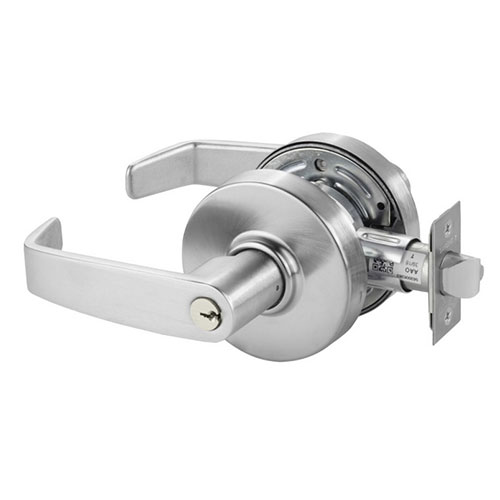

Sargent 28-7G37 LL Classroom Function, Cylindrical Lockset
Function Information:
The Sargent 28-7G37 LL is a professional-grade Grade 2 Cylindrical Classroom Lock engineered to provide superior security and life-safety compliance in educational, commercial, and government environments. As a centerpiece of the Sargent 7-Line Series, this lockset is designed for doors where keyed control is essential to manage access while ensuring unhindered egress. The 28-prefix indicates the inclusion of the industry-standard 4-7/8" ASA Strike, while the LL design features a sleek, linear lever and rose combination crafted from solid one-piece cast construction for a precise, high-quality feel.
Advanced Security and Institutional Durability
The Sargent 7-Line is built to outperform the baseline requirements for Grade 2 hardware, offering facility managers a "heavy-duty" performance in a versatile, standard-duty footprint.
- Superior Cycle Life: This lockset significantly exceeds ANSI/BHMA A156.2 Grade 2 cycle requirements, ensuring years of maintenance-free operation in high-traffic hallways and classrooms.
- One-Minute Installation: Engineered for maximum efficiency, the 7G37 can be installed in one minute or less, drastically reducing labor costs for large-scale facility upgrades.
- Vandal Resistant Options: The solid cast levers provide a formidable barrier against abuse. For high-risk areas, an optional vandal-resistant trim (FW- option) and security screws (Torx® or spanner) are available.

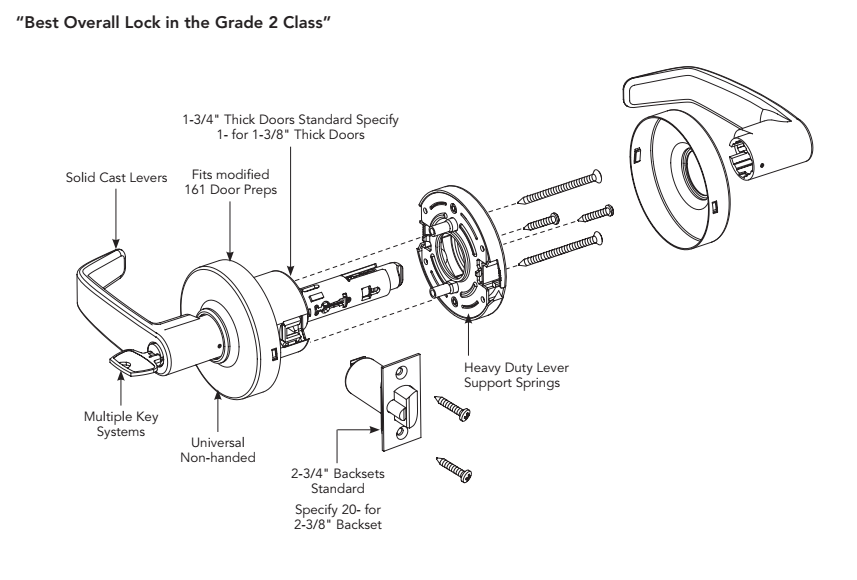

- Structural Integrity: Internal through-bolts provide maximum strength and stability without requiring additional door preparation or drilling, fitting standard modified 161 door preps.
Classroom Function & Life Safety (ANSI F84)
The 37 Classroom Function is the standard for school security, allowing administrators to secure a room from the exterior while protecting the safety of those inside.
- Keyed Exterior Locking: The outside lever is locked or unlocked exclusively by a physical key. This prevents unauthorized individuals from changing the lock status from the corridor.
- Instant Interior Egress: The inside lever is always free for immediate exit. Occupants can never be locked inside the room, maintaining 100% compliance with NFPA 101 Life Safety codes.
- Deadlocking Latchbolt: Features a 1/2" throw stainless steel latch with a deadlocking auxiliary bolt to prevent "shimming" or unauthorized manipulation when the door is closed.
- ADA Compliant LL Lever: The ergonomic, linear LL lever is designed for easy operation without tight grasping or twisting, meeting all Americans with Disabilities Act standards.

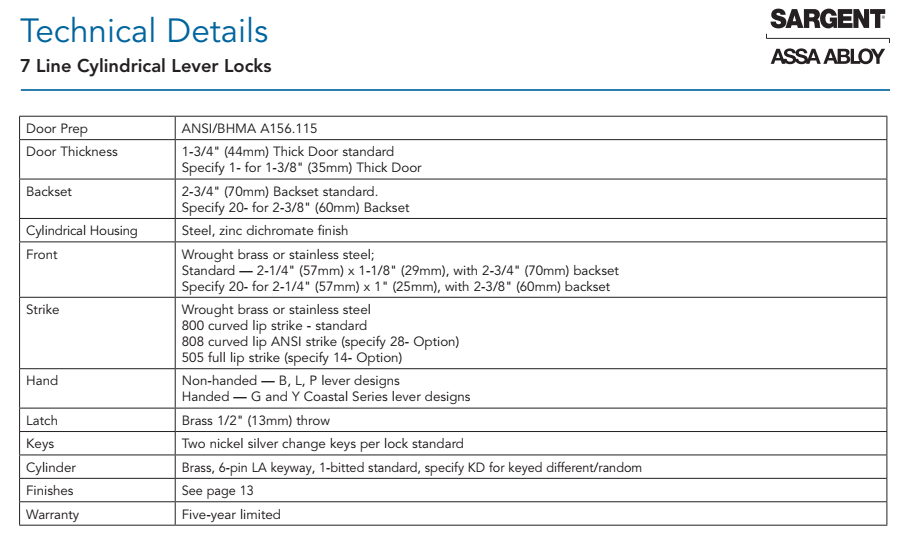

Technical Specifications
| Feature | Details |
| Series | Sargent 7-Line (Cylindrical) |
| Function | 37 Classroom Function (ANSI F84) |
| Certification | Exceeds ANSI/BHMA A156.2 Grade 2 |
| Lever Style | LL Design (Solid Cast Linear Lever) |
| Strike Plate | 4-7/8" ASA Strike (28-prefix / Standard) |
| Backset | 2-3/4" (Standard Commercial) |
| Cylinder/Keyway | 6-Pin Brass, Sargent LA Keyway (Standard) |
| Installation | One-Minute Install; Through-bolted stability |
| Handing | Non-Handed (Universal Field Reversible) |
| Fire Rating | UL/cUL Listed for 3-Hour Fire Doors |
| Warranty | 5-Year Limited Warranty |
Why Choose the Sargent 28-7G37 LL?
For contractors and facility managers at hospitals, schools, and government offices, the Sargent 28-7G37 LL represents a high-value security investment. It provides the architectural continuity of a professional linear lever with the mechanical strength required for 24/7 public use. By choosing the 7-Line, you gain a lockset that is compatible with high-security key systems like Degree®, Signature, and XC, ensuring your facility remains secure against modern threats.
Ideal Applications:
- K-12 and University Classrooms: Providing secure corridor control with safe exit.
- Medical Facilities: Durable enough for the constant use found in healthcare environments.
- Government Buildings: Meeting strict standards for public building security and fire safety.
- Commercial Offices: A professional, fire-rated solution for training rooms and suites.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | LL |
| Series | Sargent - 7 Line |
