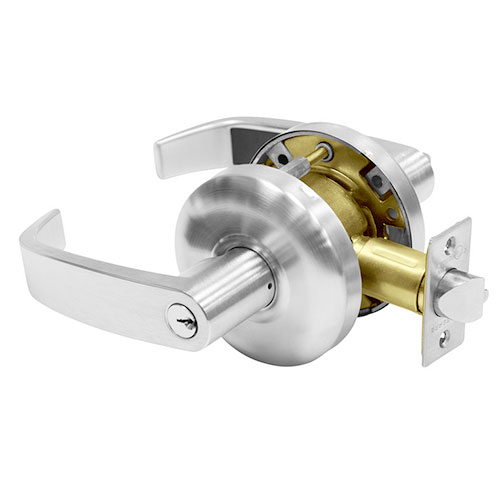

Sargent 28-65G04 KL Storeroom Function Cylindrical Lockset
Function Information:
Grade 2 Cylindrical Lockset | High-Performance Storeroom Function
The Sargent 28-65G04 (KL) is a high-security cylindrical lockset designed specifically for rooms that must remain locked at all times. The 28- prefix indicates a 4-7/8" ANSI ASA Strike.
The Storeroom Function (04) is engineered for total access control: the outside lever is always locked and cannot be left in an "unlocked" state. Entry is granted only by using a key, while the inside lever always allows for immediate, free egress. This eliminates the risk of a door being accidentally left unlocked, making it the industry standard for mechanical rooms, IT closets, and inventory storage.
Key Features
- Fail-Safe Security (04): The outside lever is permanently locked. A key is required for every entry, ensuring the space is always secure the moment the door closes.
- Hurricane & Impact Rated: Certified to meet Florida Building Code (FL# 2998) and TAS 201/202/203 standards, offering extreme resistance to forced entry and high-wind events.
- KL (L-Design) Lever: Features the clean, modern "L" trim. The non-handed design allows the lever to be reversed in the field to fit any door hand.
- Anti-Sag Thru-Bolt Mounting: Secured with heavy-duty thru-bolts that anchor the chassis directly through the door, preventing the lock from loosening or rotating under heavy use.
- Full Code Compliance: UL-cUL Fire-Rated for 3 hours and fully ADA compliant, meeting the requirements for all public and private commercial buildings.
Technical Specifications
| Feature | Specification |
| Grade | ANSI/BHMA A156.2, Series 4000, Grade 2 |
| Function | 04 (Storeroom) |
| Cylinder | Conventional 6-Pin (KL Trim) |
| Backset | 2-3/4" Standard |
| Door Thickness | Fits 1-3/4" Standard |
| Strike | ANSI Curved Lip Strike (28 Prefix) |
| Certifications | NFPA 80, ASTM E330, UL Listed |
| Warranty | 1-Year Limited Warranty |
Ideal Applications
The Sargent 28-65G04 is the premier choice for custodial closets, electrical rooms, server rooms, and warehouse storage. It provides facility managers with the peace of mind that sensitive areas are always protected without relying on staff to remember to turn a thumbturn.
| Finish with BHMA code | 626 - US26D Satin Chrome or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 640 - US10B Oil Rubbed Bronze |
| Backset | 2-3/4" Backset or 2-3/8" Backset |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | KL |
| Series | Sargent - 6500 Series |
