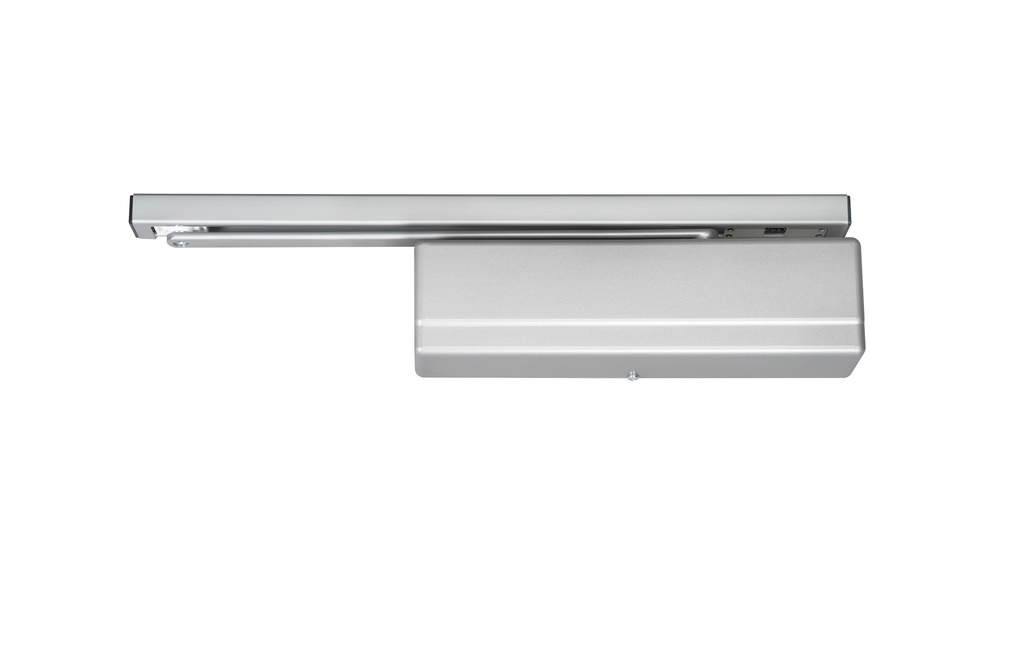

Sargent 1431 PHT Powerglide® Door Closer | Push Side Hold Open Track Arm
The Sargent 1431 PHT Door Closer is a heavy-duty, architectural-grade solution designed for high-traffic commercial and institutional environments. Part of the industry-leading Powerglide® series, the 1431 PHT features a Push Side Hold Open Track Arm, which provides a sleek, low-profile alternative to traditional projecting arms. This specialized track system mounts directly to the frame stop, offering a clean aesthetic while providing a reliable friction hold open function.
Forged from a specialized 14% silicon aluminum alloy, the one-piece die-cast body offers superior strength and wear resistance, engineered to exceed 25 million cycles. With adjustable spring power from Size 1 to 6, this non-handed closer is a versatile "one-box" solution for interior and exterior doors. The 1431 PHT is pre-filled with all-weather hydraulic fluid, ensuring consistent operation in extreme temperatures without the need for seasonal adjustments.
Advanced Architectural Performance & Convenience
- Integrated Hold Open Track: The PHT track includes an adjustable holder mounted within the extruded aluminum track. This allows the door to be secured in an open position at a range of 85° – 95°, perfect for high-frequency transition periods or moving equipment.
- Precision Hydraulic Control: A massive 1-1/2" diameter piston provides industrial-strength control. Separate, low-sensitivity brass valves allow for independent regulation of closing speed, latching speed, and backcheck intensity.
- Tamper-Resistant Security: All adjustment valves are controlled by an 1/8" Allen wrench and are captivated within the body to prevent unauthorized removal or vandalism.
- Vandal-Resistant Profile: The push-side track design eliminates the "elbow" of a standard arm, making it less susceptible to tampering and providing a streamlined look for modern interiors.
- Fire Safety Certified: UL/cUL listed for use on fire-rated doors (up to 3 hours) and compliant with UL10C and UBC positive pressure standards.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 PHT (Push Side Hold Open Track) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Spring Power | Adjustable Size 1 through 6 (Factory set to 3) |
| Hold Open Range | Adjustable between 85° – 95° |
| Piston Diameter | 1-1/2" for Industrial-Strength Control |
| Body Material | 14% Silicon Aluminum Alloy |
| Maximum Opening | 100° (Standard track) |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Architectural Compatibility
The Sargent 1431 PHT is designed for Push Side Mounting, where the track is installed on the frame stop. This application requires a minimum top rail of 5-3/4"; however, it can be installed on rails as narrow as 3" when using a 351-D Drop Plate. To ensure a rock-solid attachment to wood or mineral core doors, this unit is supplied with Sargent thru bolts.
- Available Finishes: Stocked at DoorwaysPlus.com in high-durability architectural enamel: Aluminum (EN), Dark Bronze (EB), and Brass (EAB). Additional powder-coated finishes are optional.
- MicroShield® Technology: Available with an optional antimicrobial silver-based finish that permanently suppresses the growth of bacteria, algae, fungus, and mold.
- Maintenance Friendly: The front-facing valves allow for easy maintenance and adjustment once the closer is mounted.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
