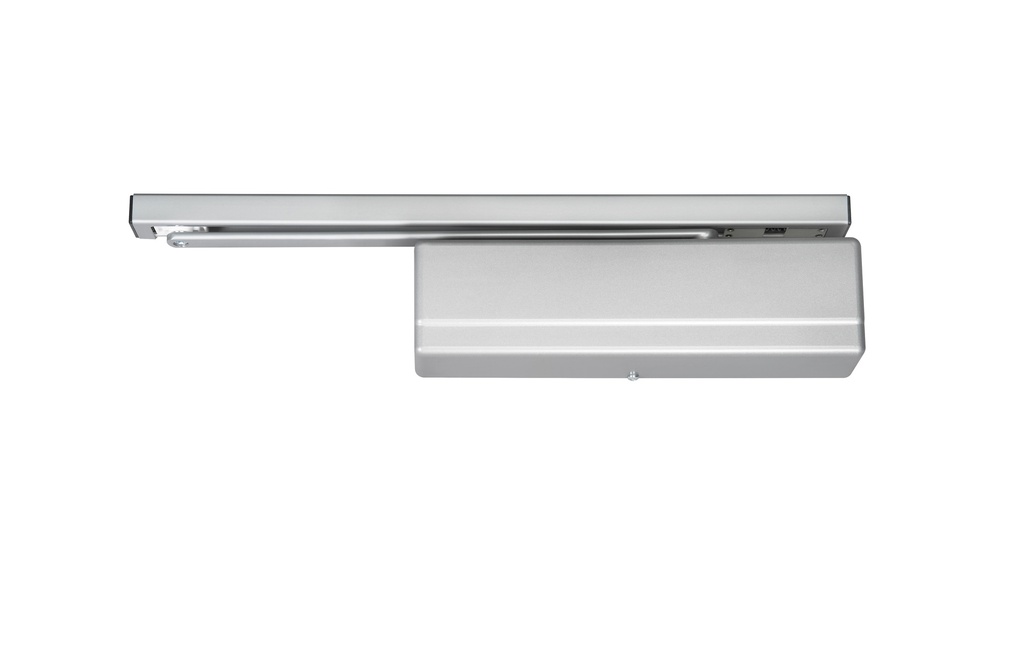

Sargent 1431 HT Powerglide® Door Closer | Pull Side Hold Open Track Arm
The Sargent 1431 HT Door Closer is a high-performance, heavy-duty solution designed for architects and facility managers who demand both low-profile aesthetics and reliable functionality. Part of the renowned Powerglide® series, the 1431 HT features a Pull Side Track Arm with Hold Open, which mounts the track on the frame face to eliminate the "elbow" of traditional projecting arms. This sleek design is perfect for high-traffic corridors in hospitals, schools, and office buildings where preventing vandalism and maintaining a modern appearance are top priorities.
Engineered with a one-piece 14% silicon aluminum alloy body, this ANSI/BHMA Grade 1 closer provides industrial-strength durability. It includes an adjustable friction hold-open mechanism within the track, allowing the door to be secured at a specific angle for high-frequency transitions or moving equipment. The 1431 HT is pre-filled with all-weather hydraulic fluid, ensuring consistent door control in extreme temperatures without the need for manual seasonal adjustments.
Architectural Grade Performance & Security
- Sleek Track Design: The extruded aluminum track and forged steel arm with a bearing roller provide a smooth opening experience and a streamlined look that blends into modern interiors.
- Variable Hold Open: The HT track arm includes an adjustable holder that allows you to set the door to remain open at your desired angle, increasing convenience for busy doorways.
- Industrial Strength Piston: A massive 1-1/2" diameter piston ensures superior hydraulic control and longevity, exceeding 25 million cycles in testing.
- Tamper-Resistant Valves: Separate brass valves for closing speed, latching speed, and backcheck are adjusted via an 1/8" Allen wrench and are captivated to prevent unauthorized removal.
- Safety Certified: UL/cUL listed for use on fire-rated doors (up to 3 hours) and compliant with UL10C and UBC positive pressure standards.
Technical Specifications
| Feature | Details |
| Manufacturer | Sargent (ASSA ABLOY) |
| Model Number | 1431 HT (Pull Side Hold Open Track) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Spring Power | Adjustable Size 1 through 6 (Preset to 3) |
| Arm Type | Forged Steel Arm with Adjustable Friction Hold Open |
| Maximum Opening | 160° (Standard); 120° (with optional Bumper) |
| Body Material | 14% Silicon Aluminum Alloy |
| Minimum Top Rail | 2-3/8" (Mounting plates cannot be used) |
| Warranty | 25-Year Limited Mechanical Warranty |
Installation & Finish Options

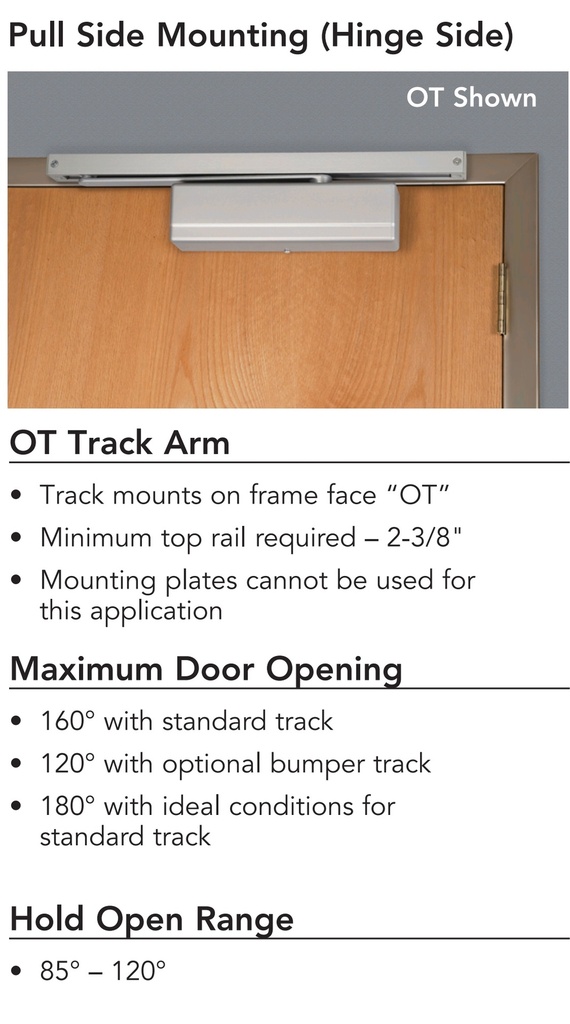

The Sargent 1431 HT is designed for pull-side mounting on the door leaf. The package includes self-sticking templates and all necessary fasteners. For a permanent, high-security attachment to wood or mineral core doors, this unit is supplied with Sargent thru bolts.
- Available Finishes: Stocked at DoorwaysPlus.com in three high-durability enamel finishes: Aluminum Enamel (EN), Dark Bronze Enamel (EB), and Brass Enamel (EAB).
- Optional MicroShield®: Available with a silver-based antimicrobial coating that permanently suppresses the growth of bacteria, algae, and mold.
- Retrofit Compatibility: The 1431 series shares the same mounting pattern as the older Sargent 1230/1231 models, making it an easy upgrade for existing facilities.
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | Track Arm |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 9" x 2 1/2" |
