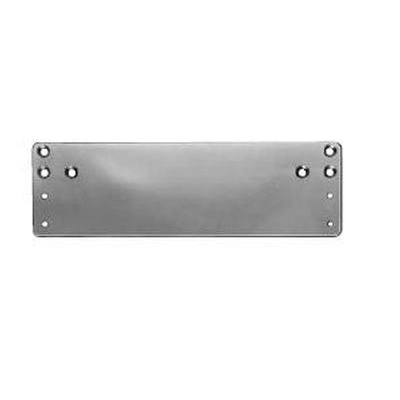

Sargent 1431-B Mounting Plate - Low Ceiling & Narrow Frame Solution

The Sargent 1431-B Mounting Plate is a high-performance door closer accessory specifically engineered to solve complex installation challenges where standard mounting is impossible. Designed for use with the Sargent 1431 Series Powerglide® Door Closer, this plate is the industry-standard mechanical solution for Top Jamb mounting in environments with low ceiling conditions or narrow face frames. By providing a stable, reinforced mounting surface, the 1431-B ensures that the closer body is securely anchored even when the available frame space is at a minimum, preventing hardware failure and maintaining building security.

Constructed for durability and precision, the Sargent 1431-B features a non-handed design, allowing it to be used on both left-hand and right-hand doors without additional modification. This plate is not just a mounting bracket; it is a structural solution that preserves the ANSI/BHMA Grade 1 performance of the 1431 series closer by ensuring proper alignment and weight distribution. Available in various powder coat finishes (such as Aluminum, Dark Bronze, and Black) to match the closer cover, it provides a clean, professional appearance for schools, healthcare facilities, and commercial office buildings.

Structural Utility & ANSI Performance Summary

The 1431-B Mounting Plate acts as a vital bridge between the door frame and the high-torque mechanics of a surface-mounted closer. Its function is critical for maintaining long-term hardware integrity:

• Clearance Management: Specifically designed for "Top Jamb" applications where the ceiling height restricts the standard vertical placement of the closer.
• Narrow Frame Optimization: Provides a wide, multi-point fastening base for narrow head jambs, distributing the closing forces more effectively than a standard mounting.
• Hardware Lifecycle Extension: By preventing the closer body from "rocking" or loosening on a narrow frame, the plate serves as a preventative maintenance solution, protecting both the frame and the closer from metal fatigue.
• Certified Compatibility: When used with the 1431 Series, it supports the closer's ANSI/BHMA A156.4 Grade 1 certification, ensuring the door remains compliant with Life Safety Codes and ADA requirements for opening force.

[Image showing dimensions of a door closer mounting plate with hole patterns for Sargent 1431]

Technical Specifications

Engineered Solutions for Facility Maintenance

The Sargent 1431-B addresses specific architectural hurdles faced by contractors and facility managers:

• Low Ceiling Correction: In many older buildings or renovated spaces, the ceiling sits too close to the door frame for a standard top jamb mount. The 1431-B is the primary architectural solution that drops the closer body just enough to clear the ceiling while maintaining full arm functionality.
• Narrow Face Frame Stabilization: Modern glass-and-aluminum storefronts often have very narrow frames. This plate provides a secure anchoring solution, utilizing more surface area to ensure the closer doesn't strip out of the thin aluminum.
• Simplified Retrofit Projects: When replacing older closers (like the Sargent 1230/1231), the 1431-B can act as a retrofit solution, covering old holes and providing a fresh template for the new Powerglide® hardware.
• Unified Aesthetic Finish: Because the plate can be ordered with a powder coat finish that perfectly matches the closer’s cover, it offers a seamless design solution for high-end office interiors where visual consistency is mandatory.
• High-Traffic Reliability: In schools or hospitals where doors are cycled hundreds of times daily, the added rigidity of the 1431-B mounting plate ensures the closer remains in-tune, serving as a long-term reliability solution for high-frequency openings.
