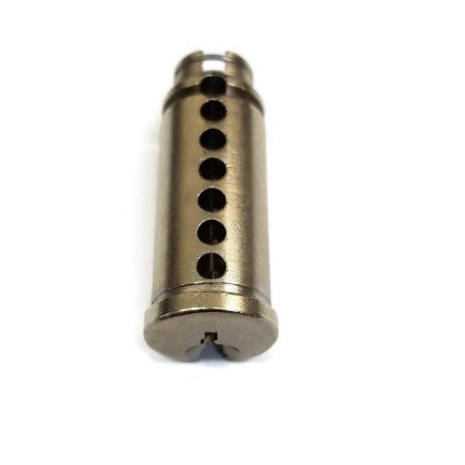

Sargent 13-3142 Cylinder Barrel - High-Security Lock Component (US15)
The Sargent 13-3142 Cylinder Barrel is a precision-engineered internal component designed specifically for the Sargent C10-1 cylinder assembly. This barrel acts as the rotating core of the lock, housing the pins and springs that interface with the key. Finished in a sophisticated US15 (Satin Nickel), this replacement hardware solution is essential for restoring the mechanical integrity of high-traffic commercial lever sets. Whether you are dealing with a "sticky" lock or a barrel that has suffered from internal wear, the 13-3142 provides an immediate maintenance solution that restores the smooth, tactile feedback expected from premium Sargent hardware.
As a critical locksmithing component, this barrel is compatible with a wide array of Sargent’s most robust lock series, including the 10 Line and 11 Line heavy-duty cylindrical locks. It is engineered to meet the exact tolerances required for Master Key System integration. By choosing a genuine Sargent OEM barrel, you ensure that the shear line remains precise, which acts as a security enhancement solution by reducing the risk of bypass through picking or forced manipulation. This barrel is the primary hardware fix for maintaining the operational life of Grade 1 lever sets in schools, hospitals, and government facilities.
Versatile Series Compatibility
The Sargent 13-3142 is a universal internal solution for several of the industry's most reliable locksets. It is the designated barrel for the following series:
- Sargent 6 Line: Standard-duty residential and light commercial bored locks.
- Sargent 6500 Series: Versatile, modern lever sets designed for ease of installation.
- Sargent 7 Line: Heavy-duty bored locks used in high-frequency commercial applications.
- Sargent 10 Line: The industry standard for heavy-duty Grade 1 cylindrical lever locks.
- Sargent 11 Line: Specialized high-security T-Zone construction locks for extreme durability.
Technical Specifications
| Feature | Details |
| Part Number | Sargent 13-3142 |
| Compatible Cylinder | Sargent C10-1 |
| Finish | US15 (Satin Nickel) |
| Material | High-Tensile Brass Core with Plated Face |
| Pin Configuration | Designed for 6-Pin standard (Can be adapted) |
| Lock Series Support | 6, 6500, 7, 10, and 11 Line |
| Application | Commercial / Institutional Grade 1 Hardware |
| Manufacturer | Sargent (ASSA ABLOY) |
Mechanical Function & ANSI Security Summary
The cylinder barrel is the heart of the locking mechanism, serving as the primary interface between the user's key and the lock's retraction components.
- Rotational Precision: The barrel must align perfectly with the plug and housing to allow for the ANSI/BHMA Grade 1 requirement of smooth operation under high-cycle counts.
- Shear Line Integrity: The precision-drilled pin chambers in the 13-3142 ensure that the driver and bottom pins meet exactly at the shear line, providing a reliability solution that prevents "jamming."
- Torsion Resistance: Built to withstand the torque applied by heavy commercial keys, this barrel serves as a durability solution for doors that experience hundreds of cycles per day.
- Finish Durability: The US15 Satin Nickel finish on the face of the barrel is designed to resist the corrosive effects of hand oils and cleaning chemicals, ensuring the lock maintains a professional aesthetic.
Engineered Solutions for Facility Security
The Sargent 13-3142 addresses specific operational hurdles faced by facility managers:
- Cost-Effective Lock Restoration: Instead of replacing an entire Sargent 10 Line Lever Set, which can cost hundreds of dollars, replacing a worn barrel is a budget-friendly solution that returns the lock to factory-new performance.
- Master Key System Maintenance: When a keyway is worn or damaged, it can compromise the security of an entire wing. This barrel is the primary rekeying solution, allowing locksmiths to drop a new core into an existing lever set.
- Aesthetic Matching: The Satin Nickel US15 finish provides a design-consistent solution for modern office interiors, blending perfectly with existing stainless steel or chrome hardware.

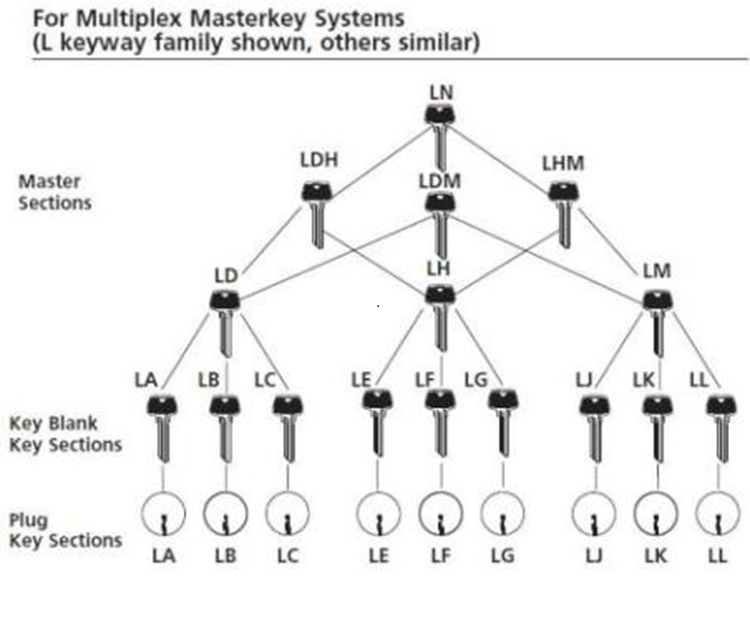

| Sargent Keyways | LA Keyway or LB Keyway or LC Keyway or LE Keyway or LF Keyway or LG Keyway or LJ Keyway or LK Keyway or LL Keyway or RA Keyway or RB Keyway or RC Keyway or RE Keyway or RF Keyway or RG Keyway or RJ Keyway or RK Keyway or RL Keyway or U Keyway or HA Keyway or HB Keyway or HC Keyway or HE Keyway or HF Keyway or HG Keyway or HJ Keyway or HK Keyway or HL Keyway |
| Brand | Sargent |
| Series | Sargent - 6 Line, Sargent - 7 Line, Sargent - 10X Line, Sargent - 11 Line |
| Cylinder Part Type | Barrel |
| Key Length | 5 Pin, 6 Pin |
