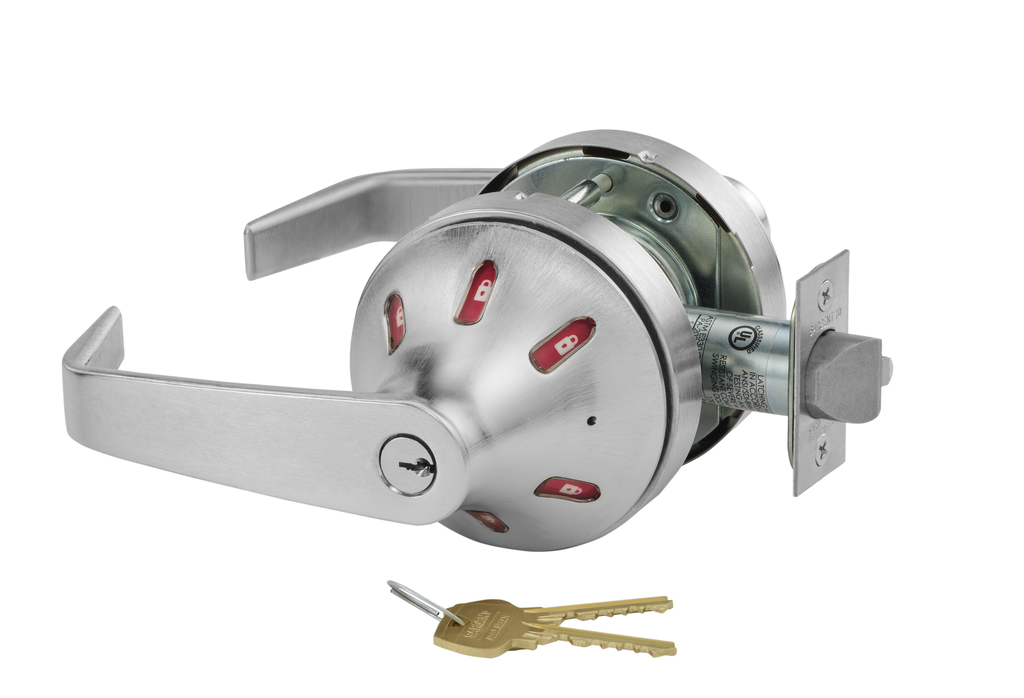

Sargent 10XG44 VSL Service Station Visual Status Lockset (Push Button)
Function Information:
The Sargent 28-10XG44 VSL is a high-performance Grade 1 Cylindrical Lockset engineered specifically for public-facing environments like service stations, retail restrooms, and institutional facilities. As a premier model in the Sargent 10X Line, this hardware combines the "Service Station/Privacy" (F92) function with the innovative Visual Status Lock (VSL) indicator. This provides a clear, color-coded window to confirm occupancy at a glance, eliminating the need for patrons to pull on handles to check if a room is in use.
Visual Status Lock (VSL) for Enhanced Privacy
The VSL indicator is integrated directly into the rose, providing an unmistakable signal to both users and maintenance staff. This feature is a game-changer for high-traffic public areas where privacy and safety are top priorities.
- Occupancy Confirmation: Displays a high-contrast Red (Occupied/Locked) or Green (Vacant/Unlocked) status.
- Intuitive Design: Patrons can see from a distance if the facility is available, improving traffic flow and user experience.
- Vandal-Resistant Housing: The indicator window is protected within the heavy-duty rose, ensuring it remains functional even in high-abuse settings.
Extreme Performance and Unmatched Durability
Built to survive environments that destroy standard hardware, the Sargent 10X line is UL-verified to exceed 20 million cycles. This provides 20 times the longevity of standard Grade 1 locks, making it the most cost-effective choice for long-term facility management.
- Service Station Function (F92): The outside lever is locked by an interior pushbutton. A key in the outside cylinder retracts the latchbolt and unlocks the lever.
- Anti-Lockout Feature: To prevent accidental lockouts, rotating the inside lever or closing the door automatically releases the pushbutton.
- Abuse Resistance: Engineered to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, protecting the internal chassis from forced entry and aggressive vandalism.
Key Product Features
- Visual Status Lock (VSL): Large, clear indicator window for instant occupancy verification.
- Superior Cycle Life: Tested to 20 million cycles, the highest performance rating in the industry.
- Vandal-Proof Engineering: Features a freewheeling locked lever that rotates without engaging the mechanism when locked to prevent snapping.
- ADA & Life Safety: The ergonomic LL lever is fully accessible and UL/cUL Listed for 3-hour fire-rated doors.
- Severe Weather Rated: Certified for windstorm and hurricane resistance, meeting Florida Building Code requirements.
- Stainless Steel Latch: Includes a heavy-duty deadlocking latch with a 1/2" throw to resist physical tampering.
Technical Specifications
| Feature | Details |
| Function | 44 Service Station / Privacy (ANSI F92) |
| Indicator | VSL Visual Status (Red/Green) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Style | LL - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Warranty | Ten-Year Limited Warranty |
Ideal Applications
- Service Stations & Retail Restrooms: Providing clear occupancy signaling for high-traffic public facilities.
- Educational Institutions: Staff restrooms and private changing areas where status visibility is preferred.
- Healthcare Facilities: Patient restrooms and consultation rooms requiring a durable, keyed privacy solution.
- Municipal Buildings: Public-use spaces that demand Grade 1 durability and visual confirmation.
Ordering & Installation Information
The Sargent 28-10XG44 VSL is non-handed, allowing for universal installation on any door swing. For doors thicker than 2", please specify the 31- Option. This lockset is compatible with all Sargent Key Systems, including Degree®, Signature, and Keso, allowing for seamless integration into your facility’s master key schedule.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F92 - Service Station |
| Trim Design | VSL |
| Series | Sargent - 10X Line |
| Occupancy Indicator | Yes |
