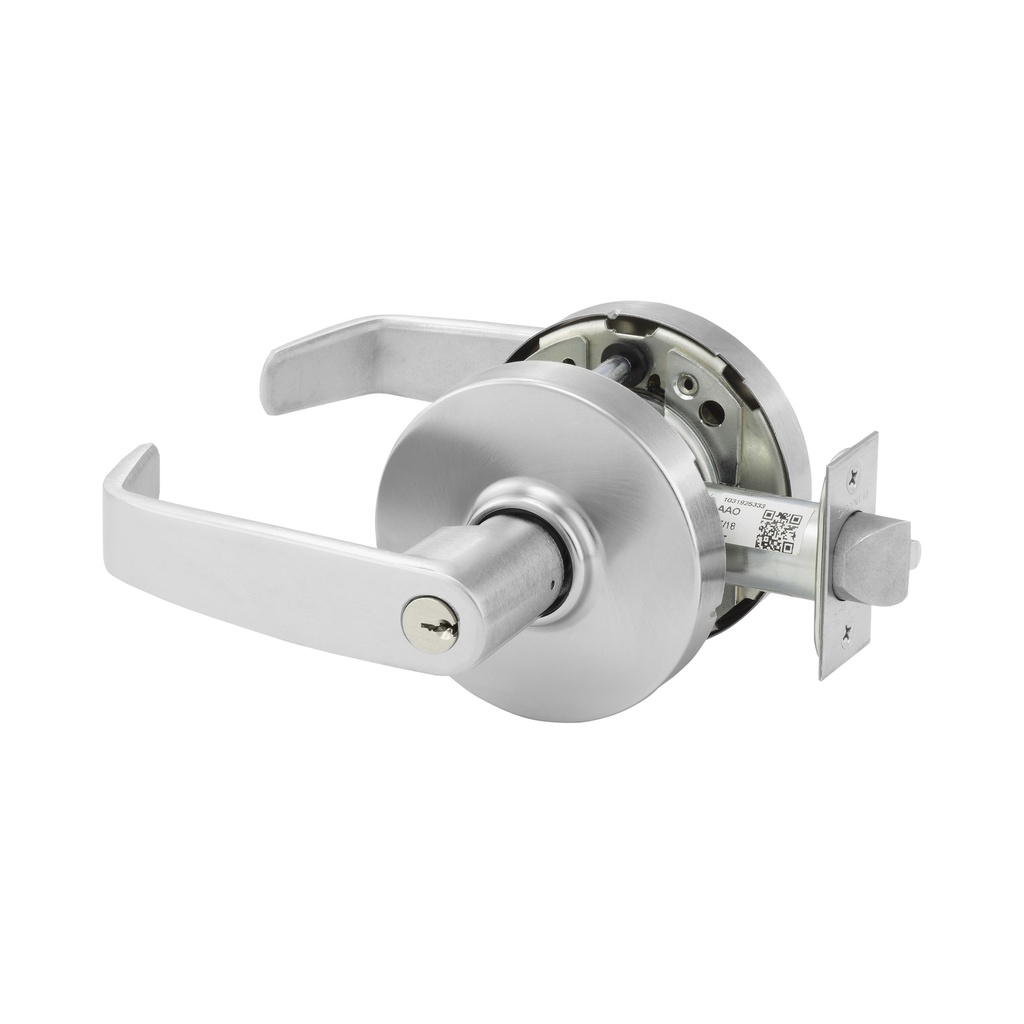

Sargent 10XG37 LL Classroom Lever Lockset — Grade 1 Cylindrical

The Sargent 10XG37 LL is a Grade 1 commercial cylindrical lockset in the Sargent 10 Line, configured for the Classroom function (Function 37) with an LL lever trim. Designed for heavy-duty use in schools, universities, healthcare facilities, and other high-traffic institutional openings, this lockset delivers ANSI/BHMA Grade 1 performance — the highest level of durability and security for commercial door hardware.

Classroom Function — What It Means for Buyers

The Function 37 Classroom configuration operates as follows: the outside lever retracts the latch freely unless locked by key from the outside. When locked, the outside lever is rigid and cannot retract the latch. The inside lever always retracts the latch freely, ensuring unrestricted egress from the room at all times. An auxiliary deadlatch is included to prevent latch manipulation. This is the standard classroom security function widely specified for K–12 schools and higher-education facilities — the outside is secured by a key while occupants can always exit freely from the inside.

Note: The standard Classroom (Function 37) locks and unlocks the outside lever from the inside corridor by key. If outside-corridor lockdown capability is required (i.e., locking the door from the hallway during an intruder event), a Classroom Intruder / Function 38 configuration should be specified instead. Confirm your opening's security requirements before ordering.

Key Benefits

• ANSI/BHMA Grade 1 — Highest commercial duty rating; built for high-cycle, high-traffic openings
• Sargent 10 Line cylindrical platform — Robust, field-proven architecture compatible with Sargent V-10 (ASSA) interchangeable core systems (VA-C10 cylinder)
• Classroom Function 37 — Inside lever always free for egress; outside lever keyed for security; auxiliary deadlatch standard
• LL Lever — ADA-compliant lever design suitable for accessible routes per ADA and ICC A117.1 requirements
• Commercial cylindrical lockset — Bored (cylindrical) installation for standard door preps; does not require mortise pocket
• Fire door compatible — Suitable for labeled fire-rated door assemblies when properly specified (verify with AHJ and door manufacturer)

Typical Applications

• K–12 school classrooms and instructional spaces
• College and university classroom and office doors
• Healthcare clinic and examination room doors
• Government and municipal office doors
• Any institutional opening requiring Grade 1 classroom security with lever trim

Technical Details

For projects requiring an interchangeable core upgrade, the Sargent 10 Line accepts the Sargent/ASSA V-10 cylinder (VA-C10), enabling master key system integration without replacing the lockset body. Contact our team to confirm core compatibility and keying options for your project.

The Sargent 28-10XG37 LL is a premier Grade 1 Cylindrical Lock engineered for the demanding security needs of educational and institutional facilities. As a part of the industry-leading Sargent 10X Line, this lockset is purpose-built for high-traffic "Classroom Function" (ANSI F84) applications. It allows the outside lever to be locked or unlocked by key, while the inside lever always remains operative for immediate, life-safety egress. Designed to exceed standard durability benchmarks by up to 20 times, the 10XG37 provides an unbeatable combination of vandal resistance and long-term reliability.

Maximum Security and Institutional Durability

The Sargent 10XG37 is built to withstand extreme physical abuse that would cause standard commercial locks to fail. It is UL verified to exceed 20 million cycles, offering a massive service life advantage over traditional Grade 1 hardware. In security testing, it resists over 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull. Its freewheeling locked lever design allows the outside handle to rotate freely when locked, preventing vandals from using leverage to snap internal components.

Engineered for Reliable Life Safety

This lockset is specifically designed for the safety of students and staff. Because the inside lever is always free, occupants can exit a room instantly without needing a key or special knowledge, ensuring full compliance with NFPA 80 and ADA accessibility standards. The linear LL lever features independent return springs to eliminate lever sag, and the device is UL/cUL Listed for all 3-hour fire-rated openings.

Key Product Features

• Classroom Function (F84): Key in the outside lever locks or unlocks the handle; inside lever provides constant free egress.

• Extreme Cycle Life: UL-verified for 20 million cycles, ensuring the lowest total cost of ownership for large facilities.
• Vandal-Proof Engineering: Resists over 3,100 in-lb of torque—2.6 times the requirement for ANSI/BHMA A156.2.

• Superior Latch Performance: Includes a stainless steel deadlocking latch with a 1/2" throw, designed to operate even under 100 lbs of latch preload.

• ADA & Fire Rated: Meets ANSI A117.1 standards and is rated for use on 3-hour fire doors.

• MicroShield® Option: Available with an antimicrobial coating to inhibit the growth of bacteria and mold in school environments.

Technical Specifications

Ideal Applications

• Schools & Universities: High-abuse classroom doors requiring key-controlled security.

• Municipal Buildings: Public offices where entry must be restricted after hours.
• Healthcare Facilities: Patient wings or staff areas where secure, easy egress is mandatory.

• Manufacturing Plants: Built to withstand the constant vibration and heavy use of industrial sites.


Ordering & Installation Information

The Sargent 28-10XG37 is designed for rapid deployment, capable of being installed in under a minute with standard door preparation. For doors thicker than 2", please specify the 31- Option. This chassis is compatible with all Sargent Key Systems, including Degree®, Signature, and Keso, allowing you to maintain strict key control across your entire campus.
