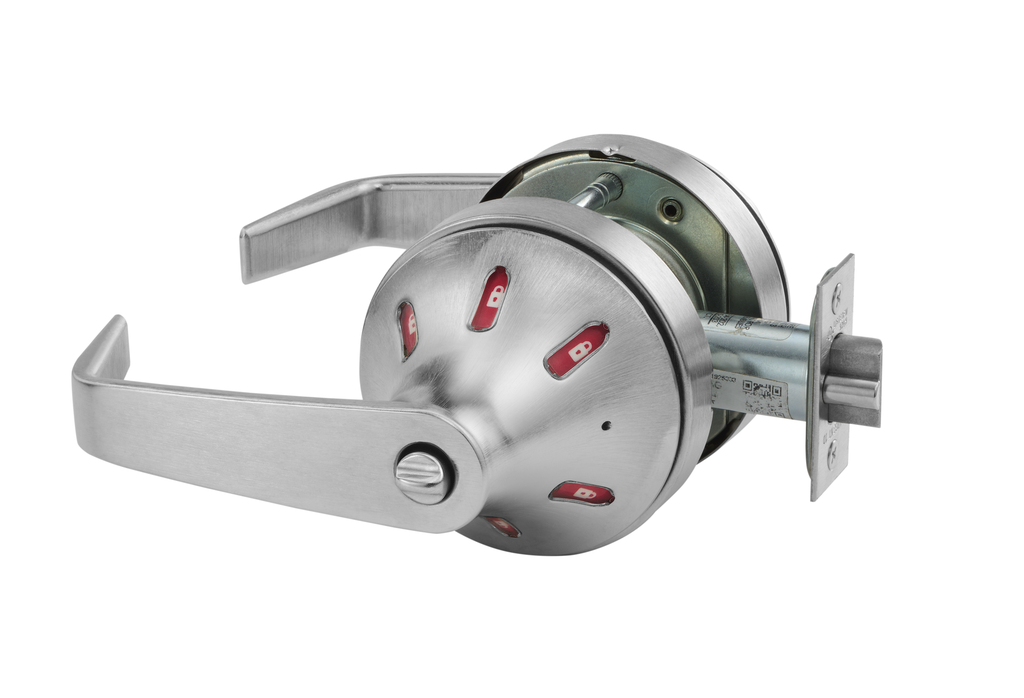

Sargent 10XG14 VSL Patio or Privacy Visual Status Latchset
Function Information:
The Sargent 28-10XG14 VSL is an industrial-grade Grade 1 Cylindrical Latchset engineered for high-abuse environments where privacy and immediate status awareness are paramount. As part of the elite Sargent 10X Line, this hardware is designed to outperform standard commercial locks by up to 20 times. The 10XG14 features a specialized Patio or Privacy function (ANSI F77) paired with the Visual Status Lock (VSL) indicator, providing a clear, high-visibility window that confirms the room's security status at a glance.
Visual Status for Enhanced Privacy
The standout feature of this model is the VSL indicator window located on the rose. This system eliminates the guesswork often associated with privacy locks in public or institutional settings.
- Color-Coded Verification: Displays a clear Green (Vacant/Unlocked) or Red (Occupied/Locked) status.
- Safety & Efficiency: Allows staff to verify if a room is secured from across a hallway without needing to test the lever physically.
- Institutional Strength: The VSL trim is integrated into the heavy-duty rose assembly, making it resistant to impact and tampering.
Unrivaled Mechanical Durability
The Sargent 10X Line is the industry benchmark for toughness. While standard Grade 1 locks are tested to 1 million cycles, the 10X is UL-verified to exceed 20 million cycles. This ensures the lowest total cost of ownership for high-traffic facilities.
- Patio/Privacy Function (F77): The outside lever is locked by an interior thumbturn (push/turn button). Rotating the inside lever always provides free egress and automatically unlocks the outside lever.
- Emergency Access: The exterior rose features a specialized emergency release hole, allowing authorized personnel to gain entry in the event of an accident or medical emergency.
- Vandal Resistance: Engineered to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset pull, protecting the internal mechanism from forced entry.
Key Product Features
- Visual Status Lock (VSL): Large indicator window provides instant occupancy status for privacy applications.
- Extreme Performance: UL-verified for 20 million cycles, providing 20x the longevity of standard commercial hardware.
- ADA & Life Safety Compliant: Ergonomic LL linear lever meets all accessibility requirements and is UL/cUL Listed for 3-hour fire doors.
- Heavy-Duty Latching: Includes a stainless steel latchbolt with a 1/2" throw, designed to operate smoothly even under 100 lbs of latch preload.
- Severe Weather Rated: Certified for windstorm and hurricane resistance, meeting the most stringent building codes.
- Independent Return Springs: Prevents lever sag, keeping the handle perfectly horizontal for the life of the product.
Technical Specifications
| Feature | Details |
| Function | 14 Patio / Privacy (ANSI F77) |
| Indicator | VSL Visual Status (Red/Green) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Style | LL (Linear) - ADA Compliant |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Handing | Non-handed (Fully reversible) |
Ideal Applications
- Institutional Restrooms: High-traffic privacy doors where occupancy status needs to be visible to staff.
- Healthcare Facilities: Patient consultation rooms or lactation rooms requiring clear "In-Use" signaling.
- Educational Environments: Faculty restrooms or private study rooms in university buildings.
- Hospitality & Commercial: Executive washrooms or dressing rooms requiring a durable, premium aesthetic.
Ordering & Installation Information
The Sargent 28-10XG14 VSL is designed for rapid installation, fitting a standard cylindrical door prep in under a minute. For doors thicker than 2", please specify the 31- Option. This model is available in a wide range of architectural finishes to match your facility's existing hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever |
| Brand | Sargent |
| ANSI Cyl Lock Function | F77A - Patio or Privacy |
| Trim Design | VSL |
| Series | Sargent - 10X Line |
| Occupancy Indicator | Yes |
