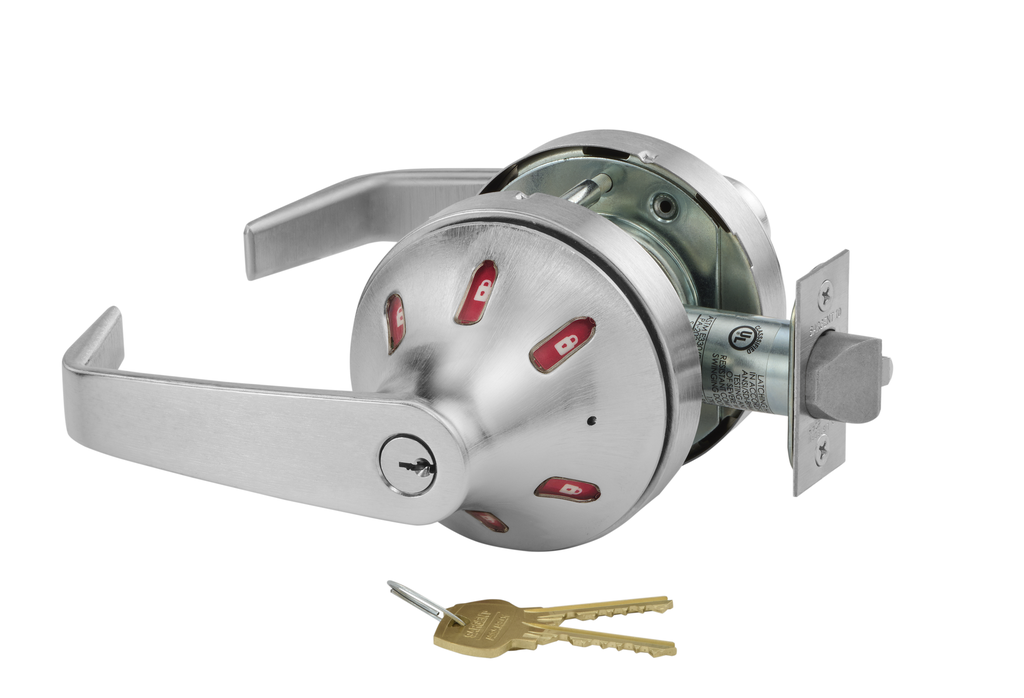

Sargent 28-10G04 VSL Storeroom Function with Visual Indicator, Cylindrical Lockset
Function Information:
The Sargent 28-10G04 VSL is a heavy-duty Grade 1 Cylindrical Lockset specifically designed for high-security areas where access control and immediate status awareness are critical. Featuring the Visual Status Lock (VSL) indicator, this hardware provides an unmistakable visual confirmation of the lock's status. Engineered for the most demanding institutional environments, this Storeroom Function (ANSI F86) lock ensures the exterior lever remains rigid and locked at all times, while the VSL window offers peace of mind to facility managers and security personnel.
Integrated Visual Status Awareness
The VSL indicator is the standout feature of this lockset, providing a clear window on the rose that displays the current state of the device. This is particularly valuable in high-security environments where staff must be able to verify that a door is secured at a glance, without having to physically test the lever.
- High-Visibility Indicator: Displays a clear color-coded or text-based status through a protected window on the rose.
- Immediate Verification: Perfect for security rounds in schools, hospitals, and government facilities.
- Tamper-Resistant: The indicator is integrated into the heavy-duty rose assembly, protecting it from vandalism or environmental wear.
Industrial-Grade Durability and Security
As part of the Sargent 10-Line, the 10G04 VSL is legendary for its mechanical strength. It is designed to withstand extreme physical abuse, far exceeding the requirements of ANSI/BHMA A156.2.
- Storeroom Function (F86): The outside lever is always locked. Access is granted only via a physical key, ensuring the door can never be accidentally left unlocked.
- Free Egress: The interior lever always allows for immediate, unhindered exit, maintaining full compliance with NFPA 101 Life Safety Codes.
- Vandal Resistant: The heavy-duty chassis resists torque and forced entry, protecting the internal mechanism from aggressive physical attacks.
Key Product Features
- Visual Status Lock (VSL): Provides at-a-glance confirmation of the locked or unlocked status of the door.
- Always Locked Exterior: Entry is by key only; the outside lever is rigid to prevent unauthorized access.
- Grade 1 Heavy-Duty: Engineered to exceed 1,000,000 cycles for long-term reliability in high-traffic corridors.
- ADA Compliant: The ergonomic linear lever design meets all accessibility requirements, requiring minimal force to operate.
- Fire Rated: UL/cUL Listed for use on 3-hour fire-rated doors (A Label).
- Deadlocking Latch: Includes a stainless steel deadlocking latch with a 1/2" throw to prevent "shimming" or forced retraction.
Technical Specifications
| Feature | Details |
| Function | 04 Storeroom (ANSI F86) with VSL |
| Indicator | Visual Status Lock (VSL) on the Rose |
| Series | 10-Line Heavy-Duty Cylindrical |
| Backset | 2-3/4" Standard (2-3/8" and 3-3/4" available) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable) |
| Latching | 1/2" Throw Stainless Steel Deadlocking |
| Handing | Non-handed (Field reversible) |
Ideal Applications
- Educational Facilities: Checking the status of IT closets, labs, and equipment rooms during security sweeps.
- Healthcare & Hospitals: High-traffic storage for pharmaceuticals or sensitive medical records.
- Commercial Real Estate: Securing mechanical rooms and utility spaces where status must be verified quickly.
- Government Buildings: Restricted access areas requiring both physical security and visual confirmation.
Ordering & Installation Information
The Sargent 28-10G04 VSL is designed for rapid installation into a standard door prep. It is compatible with all Sargent Key Systems, including Degree® and Signature, as well as high-security Interchangeable Core (IC) formats for facilities that require immediate re-keying.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | VSL |
| Series | Sargent - 10X Line |
| Occupancy Indicator | Yes |
