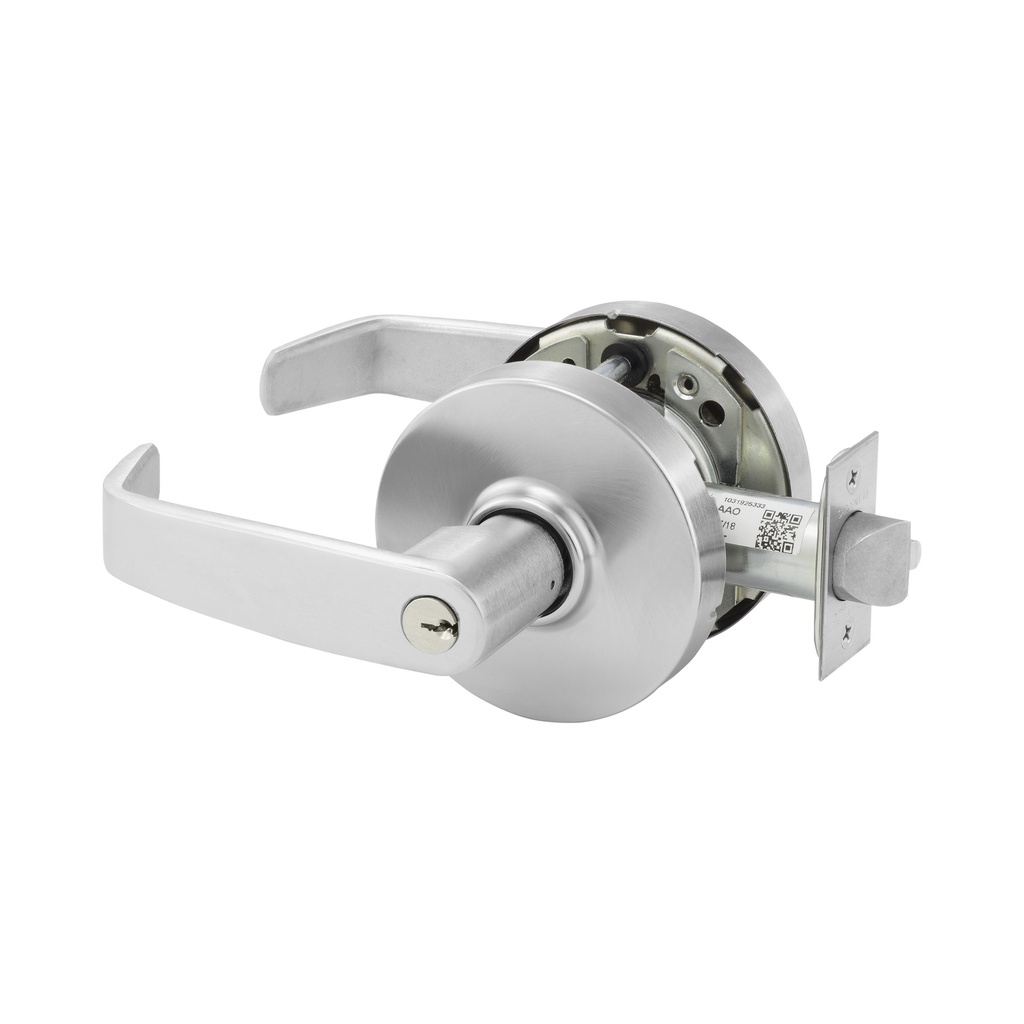

Sargent 10XG04 LL Storeroom Function Cylindrical Lever Lockset — US26D Satin Chrome

The Sargent 10XG04 LL is a heavy-duty, commercial-grade cylindrical lever lockset configured for the Storeroom function — one of the most specified security functions for supply rooms, server rooms, mechanical spaces, and restricted-access areas in commercial, institutional, and government facilities. Finished in US26D (626 Satin Chrome), it delivers a professional, corrosion-resistant appearance suited to high-traffic interior openings.

Storeroom Function — What It Means for Your Opening

The Storeroom (ANSI F07) function keeps the outside lever locked at all times. Entry from the exterior requires a key on every approach — the outside lever cannot be toggled to a free-passage state. The inside lever always allows free egress, making this function fully compliant with egress requirements while maintaining tight access control. This is the correct function spec for:

• Supply closets, stockrooms, and storage areas
• Server rooms and IT equipment closets
• Mechanical and electrical rooms
• Restricted staff-only zones in schools, healthcare, and government buildings
• Any opening where continuous key control is required on the approach side

Key Features & Benefits

• Sargent 10 Line platform — commercial Grade 1 cylindrical lockset, built for high-cycle, heavy-duty applications
• LL lever trim — Sargent's LL lever design provides an ergonomic, ADA-compatible grip profile suitable for accessible routes
• Storeroom / always-locked function — outside lever rigid at all times; key required for every entry; inside lever always free for egress
• US26D finish (Satin Chrome / ANSI 626) — durable, low-maintenance satin chrome finish standard in commercial and institutional environments
• Cylindrical (bored) lock prep — installs in standard 2-1/8" bore; compatible with common commercial door preps
• Sargent V-10 cylinder system compatible — supports master keying, grand master keying, and ASSA V-10 high-security cylinder upgrades (VA-C10 retrofit cylinder)

Typical Applications

• Commercial office buildings — restricted storage and utility rooms
• K–12 and higher education — supply closets, equipment rooms
• Healthcare facilities — medication storage, supply areas (confirm any applicable code requirements)
• Government and federal facilities — access-controlled interior openings
• Hospitality — back-of-house and maintenance areas

Technical Details

For applications requiring a keyed-different, keyed-alike, or master-keyed configuration, or for high-security V-10 cylinder upgrades, contact our hardware specialists for keying options and cylinder selection guidance.

The Sargent 28-10XG04 LL is an elite Grade 1 Cylindrical Lock engineered for high-abuse, high-traffic environments. As part of the Sargent 10X Line, this lockset doesn't just meet industry standards—it shatters them, surviving up to 20 million cycles. The Storeroom Function (F86) ensures the outside lever is always locked, requiring a key for entry, while the inside lever always allows free egress. Featuring the freewheeling lever option, the outside handle rotates freely when locked to prevent damage from vandalism and excessive torque.

Unmatched Durability and Security

Built to protect the most demanding spaces, the 10XG04 exceeds ANSI/BHMA Grade 1 requirements for torque and pull-force by significant margins. It withstands over 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull, ensuring that even under extreme attack, the door remains secure. Its independent return springs prevent lever sag, maintaining a professional appearance and consistent performance for the life of the product.

Life Safety and Extreme Weather Compliance

The Sargent 28-10XG04 is UL/cUL listed for 3-hour fire doors and meets ADA standards with a maximum activation force of 5 pounds. It is a premier choice for coastal or high-wind regions, carrying Florida Building Code and Windstorm certifications (ASTM E330, E1886, and E1996). Whether facing daily high-frequency use in a school or the environmental stress of a hurricane, this lockset provides unwavering reliability.

Key Product Features

• Always Secure: Storeroom function ensures the outside lever remains locked; entry is by key only.

• Vandal Resistant: Freewheeling locked lever design protects the internal mechanism from forced entry attempts.
• Grade 1 Plus Performance: Exceeds ANSI/BHMA A156.2 requirements by up to 20 times in cycle testing.
• Universal Handing: Non-handed design allows for installation on both left and right-hand doors.
• ADA Compliant: Ergonomic LL lever design meets all accessibility requirements.
• Fire Rated Protection: UL/cUL Listed for 3-hour fire door applications.

Technical Specifications

Ideal Applications

• Educational Institutions: Secure storage closets and mechanical rooms in schools and universities.
• Healthcare Facilities: Restricted access areas in hospitals and clinics.
• Government & Corporate: High-security perimeters for offices and manufacturing centers.
• High-Abuse Zones: Areas prone to vandalism or heavy equipment traffic.

Ordering & Installation Information

The 10XG04 comes standard with an 808 curved lip ANSI 4-7/8" strike. For doors thinner than 1-3/4", please specify the 1- Option for adapter plates. If you require a specific keyway or master keying system, such as Degree® or Signature, please contact our technical team at Doorways Plus.
