Sargent 28-10XG04 BHW Storeroom Lever Lockset, Cylindrical Lockset
Function Information:
The Sargent 28-10XG04 BHW is a premier Grade 1 Cylindrical Lockset engineered for high-security environments requiring constant access control. As a flagship model in the Sargent 10X Line, this hardware is built to survive extreme abuse in schools, hospitals, and government facilities. The Storeroom Function (ANSI F86) ensures the exterior lever is always rigid and locked, requiring a key for entry, while the interior lever always allows for immediate, unhindered egress.

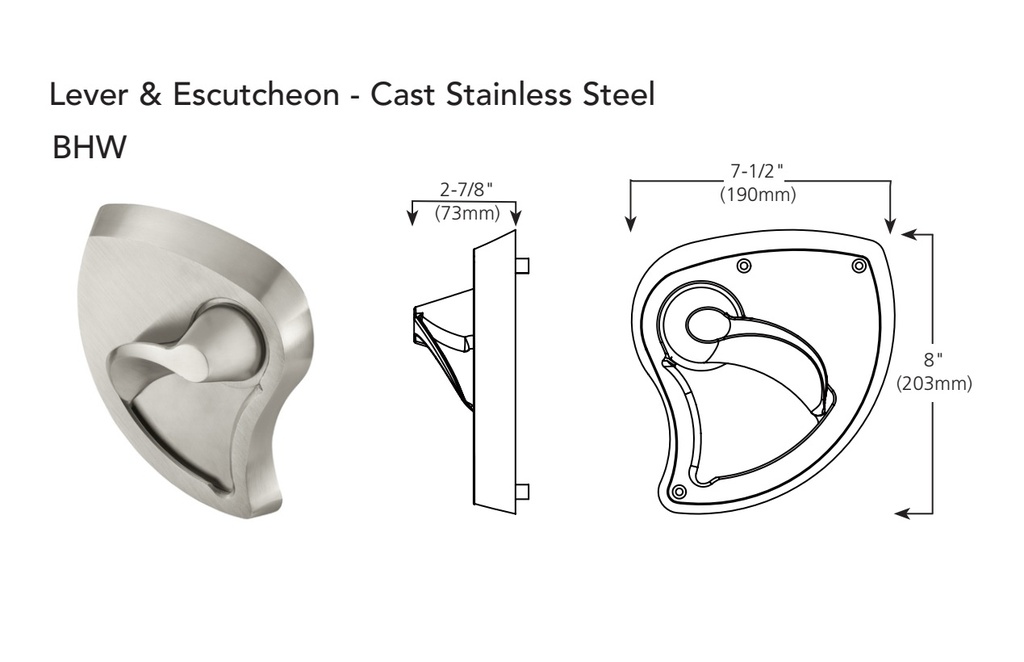

High-Performance BHW Lever Design
This model features the BHW lever style, an architectural and ergonomic design that provides a comfortable grip without sacrificing durability. The BHW lever is fully ADA compliant and is supported by heavy-duty independent return springs. These springs prevent lever sag, ensuring the hardware remains perfectly level and professional-looking even after decades of high-frequency use.
Unrivaled Mechanical Strength and Vandal Resistance
While standard Grade 1 locks are tested to 1 million cycles, the Sargent 10X line is UL-verified to exceed 20 million cycles—providing 20 times the service life of ordinary commercial locks.
- Extreme Abuse Resistance: Engineered to withstand 3,100 in-lb of abusive torque and 1,600 lbs of offset lever pull.
- Freewheeling Lever Technology: The outside handle rotates freely when locked, preventing vandals from using a pipe or wrench to snap the internal mechanism.
- High-Impact Chassis: Designed to survive 100 vertical impacts, significantly outperforming ANSI/BHMA A156.2 requirements.
Key Product Features
- Storeroom Function (F86): Exterior is always locked; entry by key only. Interior is always free for immediate life-safety egress.
- Ultimate Cycle Life: UL-verified for 20 million cycles, ensuring the lowest total cost of ownership in the industry.
- ADA & Life Safety: The BHW lever meets all accessibility standards and is UL/cUL Listed for 3-hour fire-rated doors.
- Superior Latching: Features a stainless steel deadlocking latch with a 1/2" throw to resist physical tampering and shimming.
- Severe Weather Rated: Certified for windstorm and hurricane resistance, including compliance with the Florida Building Code.
Technical Specifications
| Feature | Details |
| Function | 04 Storeroom (ANSI F86) |
| Series | 10X Line Heavy-Duty Cylindrical |
| Lever Design | BHW (Architectural/Ergonomic) |
| Backset | 2-3/4" Standard (2-3/8", 3-3/4", 5" options) |
| Strike | 808 Curved Lip ANSI 4-7/8" (Standard) |
| Door Thickness | 1-3/4" to 2" (Adjustable chassis) |
| Cylinder | 6-pin Brass, LA Keyway (Standard) |
| Warranty | Ten-Year Limited Warranty |
Ordering & Installation Information
The Sargent 28-10XG04 BHW features a non-handed chassis design for universal installation. For doors thicker than 2", please specify the 31- Option. This hardware is fully compatible with Sargent High-Security Key Systems, including Degree®, Signature, and Keso, as well as Interchangeable Core (IC) formats for rapid re-keying.
Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Door Handing | LH or RH or RHR or LHR |
| Backset | 2-3/4" Backset or 3 3/4" Backset or 5" Backset |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Brand | Sargent |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | BHW |
| Series | Sargent - 10X Line |
