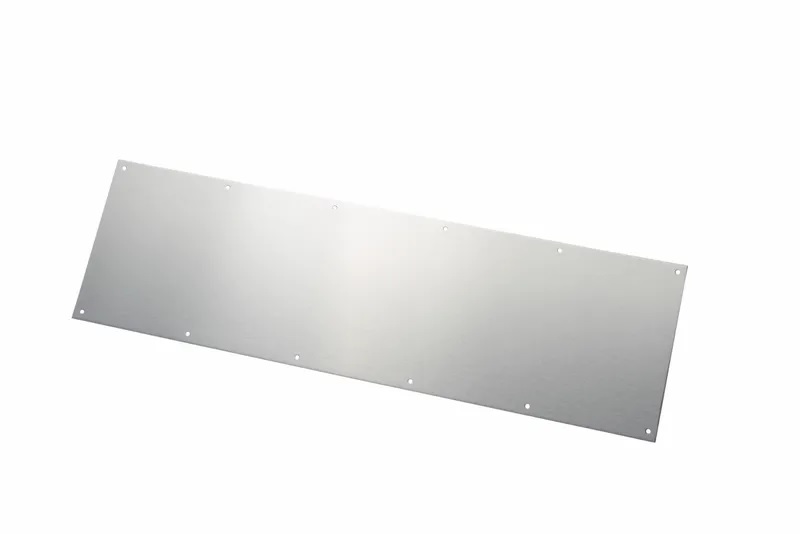

Rockwood K1050 Stainless Steel Kick Plate | 12" High | US32D Satin Finish
The Rockwood K1050 is an industrial-strength architectural kick plate engineered to provide peak protection for your most vulnerable door openings. Manufactured from .050" thick US32D Satin Stainless Steel, this 12-inch high plate offers an extended shield against heavy impact and structural scuffing. Designed with a 50-year life expectancy, the K1050 is the definitive choice for facilities looking to eliminate ongoing door repair costs and maintain a clean, professional aesthetic.
Industrial-Grade Durability & Code Compliance
- Maximum Impact Zone Coverage: The 12-inch height protects well above the standard "mop line," safeguarding doors against heavy rolling carts, hospital stretchers, and delivery equipment.
- Precision Beveled Edges: All four sides are beveled to ensure a flush, low-profile fit. This prevents the plate from becoming a snag hazard for equipment and eliminates sharp edges for safer handling.
- NFPA 80 Fire Safety: Fully compliant for use on fire-rated doors. Per NFPA 80, protection plates do not require individual fire labeling as long as the top edge is within 16 inches of the bottom of the door.
- Architectural Quality: The US32D (630) Satin Stainless Steel finish is highly corrosion-resistant and matches standard commercial hardware for a unified building design.
Sizing & Installation Details
- LTDW Sizing: To prevent interference with the door stop or frame, plates are typically ordered 2 inches less than the door width (Less Than Door Width).
- Hardware Included: Ships with matching #6 x 5/8" stainless steel screws for a secure, permanent mount on wood or hollow metal doors.
- Rapid Turnaround: Most standard 12-inch configurations are stocked and typically ship within 1 to 2 business days.
Technical Specifications
- Part Number: K1050 (12" Series)
- Height: 12 Inches
- Thickness: .050" (Standard Metal Thickness)
- Material: Stainless Steel (US32D / 630)
- Compliance: Meets ANSI A156.6 architectural standards.
| Kick Plate Dimension | 12 x 34 or 12 x 40 or 12 x 42 or 12 x 46 |
| Brand | Rockwood |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Type of Door Protection | Kick Plate |
