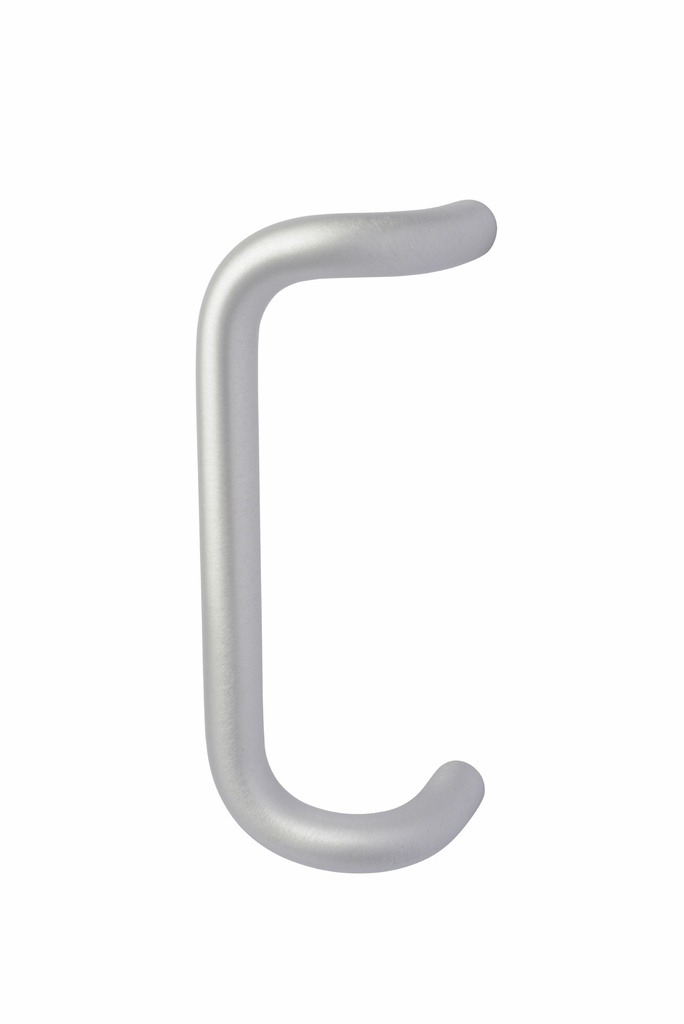

Rockwood BF158 Offset Pull Handle | 12" Center to Center - Solid Metal
The Rockwood BF158 Offset Pull Handle is a heavy-duty architectural solution designed for demanding commercial and institutional environments. Featuring a 90-degree offset and a robust 1" diameter solid metal build, this handle is specifically engineered to provide superior hand clearance. With its 12-inch center-to-center (CTC) mounting, the BF158 is an ideal choice for ADA-compliant, barrier-free openings in hospitals, schools, and modern office buildings.
Engineered for Accessibility & Industrial Strength
- 90° Offset for Maximum Clearance: The 4-inch offset design provides a generous 2-1/2" clearance from the door face. This prevents "knuckle-busting" against the door frame or lock trim, ensuring the handle is easy to grasp for all users and meets strict accessibility requirements.
- Premium Solid Construction: Available in high-grade Solid Aluminum or Stainless Steel, offering exceptional durability and corrosion resistance. This industrial-grade build is designed to withstand the rigors of high-frequency use in high-traffic settings.
- Large 12" CTC Mounting: The 12-inch center-to-center distance provides a substantial profile for larger commercial doors, offering a sleek, modern aesthetic and improved leverage for easier operation.
- Architectural Compliance: Meets ANSI A156.6: J402 standards for architectural trim, guaranteeing a reliable, long-lasting installation that can handle the toughest service environments.
Technical Specifications
- Model: Rockwood BF158
- Material: Solid Aluminum or Stainless Steel (Brass/Bronze available by quote)
- Material Size: 1" Diameter
- Mounting Distance (CTC): 12"
- Overall Length: 13"
- Projection: 3-1/2"
- Clearance: 2-1/2"
- Offset: 4" (at 90 degrees)
- Door Thickness: Standard 1-3/4"
NOTE: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
.
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 313 - Dark Bronze Anodized |
| Brand | Rockwood |
| Center to Center Distance | 12" CTC |
| Handle Diameter | 1" |
| Pull Handle Overall Length | 13" |
| Door Thickness | 1-3/4" Dr Thickness |
