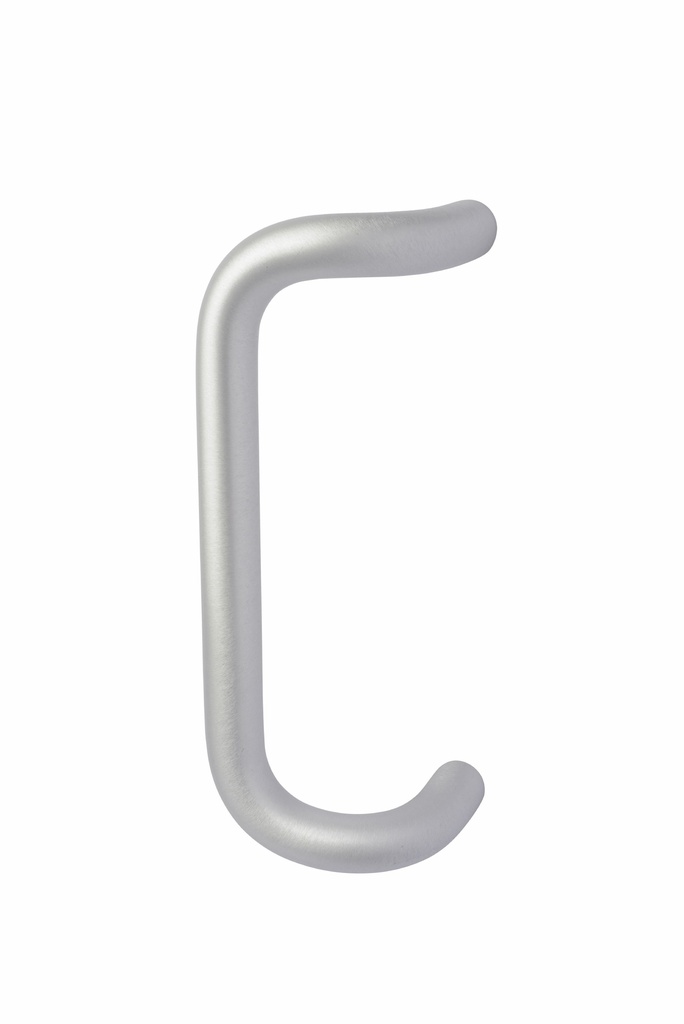

Rockwood BF156 Offset Pull Handle | 8" CTC Solid Aluminum
The Rockwood BF156 Offset Pull Handle is a heavy-duty architectural solution designed for high-traffic commercial entrances. Featuring a 90-degree offset and a robust 1" diameter solid aluminum build, this handle is specifically engineered to provide maximum clearance for hands, making it an ideal choice for ADA-compliant, barrier-free openings. Whether for a hospital, school, or retail storefront, the BF156 combines industrial durability with a sleek, modern profile.
Engineered for Accessibility & Durability
- 90° Offset Design: The 4-inch offset moves the handle away from the door edge, providing a generous 2-1/2" clearance. This prevents "knuckle-busting" and ensures the handle is easy to grasp for all users, meeting strict accessibility requirements.
- Solid Aluminum Construction: Forged from high-grade solid aluminum, this handle offers exceptional strength and corrosion resistance without the weight of steel, perfect for both interior and exterior applications.
- Standard 8" CTC Mounting: With a center-to-center mounting distance of 8 inches, the BF156 is a standard size for new installations or as a premium replacement for worn-out commercial door hardware.
- Architectural Quality: Meets ANSI A156.6: J402 standards for architectural trim, ensuring it can withstand the rigors of high-frequency use in institutional environments.
Technical Specifications
- Model: Rockwood BF156
- Material: Solid Aluminum (Brass, Bronze, and Stainless Steel available by quote)
- Material Size: 1" Diameter
- Mounting Holes (CTC): 8"
- Overall Length: 9"
- Projection: 3-1/2"
- Clearance: 2-1/2"
- Offset: 4" (at 90 degrees)
- Door Thickness: Standard 1-3/4"
NOTE: Heavy Duty (HD) mounting features hex drive for positive tightening and large overall size for superior strength. Recommended for high frequency and rough service openings.
| General - US Finishes | US28 - 628/ Anodized Aluminum or 313 - Dark Bronze Anodized |
| Pull Handle Mounting Types | Type 1 (1/4"-20) or Type 1HD (5/16"-18) or Type 1XHD (3/8"-16) or Type 12 (1/4"-20) or Type 12HD (5/16"-18) or Type 12XHD (3/8"-16) or Type 15 (1/4"-20) or Type 15HD (5/16"-18) or Type 15XHD (3/8"-20) or Type 6R (1/4"-20) or Type 6RHD (5/16"-18) or Type 8 (1/4"-20) or Type 8HD (5/16"-20) or Type 17R (1/4"-20) or Type 17RHD (5/16"-18) |
| Brand | Rockwood |
| Center to Center Distance | 8" CTC |
| Pull Handle Overall Length | 9" |
| Handle Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
