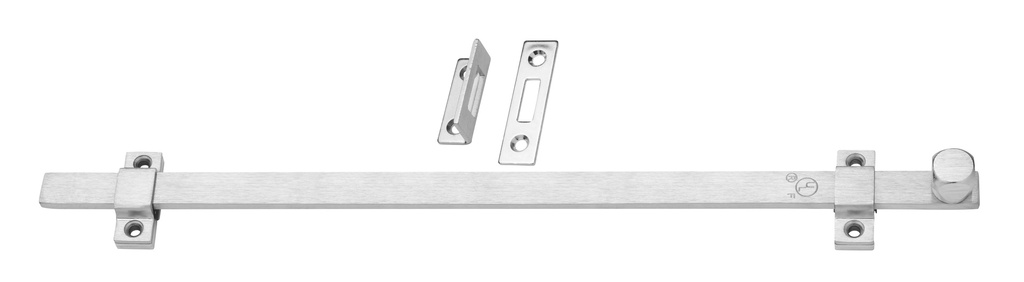

Rockwood 580 Series Extended Length Surface Bolt | Satin Chrome
The Rockwood 580 Series Surface Bolt is a robust security solution specifically engineered for tall commercial doors. Available in lengths up to 48 inches, these bolts provide a high-strength locking point at the top or bottom of the door. Finished in US26D Satin Chrome, they offer a clean, professional aesthetic while meeting the rigorous demands of schools, hospitals, and office buildings.
Heavy-Duty Security & Fire Safety
- Oversized Door Compatibility: With lengths of 18", 24", 36", and 48", these bolts allow users to easily reach and secure the top of oversized doors that standard-length bolts cannot accommodate.
- UL Fire Rated (18" & 24"): The 18" and 24" models are UL listed for use on the inactive leaf of a pair of 3-hour labeled fire doors, ensuring code compliance for critical life-safety openings.
- Extended 1-1/8" Bolt Throw: The deep throw ensures a secure engagement into the strike, preventing the door from being forced open or rattling under pressure.
- ANSI/BHMA Certified: Meets ANSI A156.16: L04161 standards, the industry benchmark for heavy-duty surface-mounted architectural hardware.
- Thru Bolts available: Rockwood SP1019
Technical Specifications
- Series: Rockwood 580
- Available Lengths: 18", 24", 36", 48"
- Material: Heavy-duty Steel with US26D Satin Chrome plating.
- Bolt Size: 1/4" x 3/4" solid rod.
- Strikes: Includes both a universal top strike and a mortise bottom strike for versatile mounting.
- Fasteners: Complete with 8 ea. #10 x 1-1/4" FH SMS and 8 ea. 10-24 x 1" FH MS for wood or metal door installation.
| Length | 18 Inch or 24 Inch or 36 Inch or 48 Inch |
| Fire Rated | Non-Rated or Fire Rated |
| Brand | Rockwood |
| General - US Finishes | US26D - Satin Chrome |
| Bolt Type | Surface Bolt - Industrial |
| Door Type | Wood Door, Metal Door |
Rockwood 580 Series Template T-580 0715.pdf
Download
