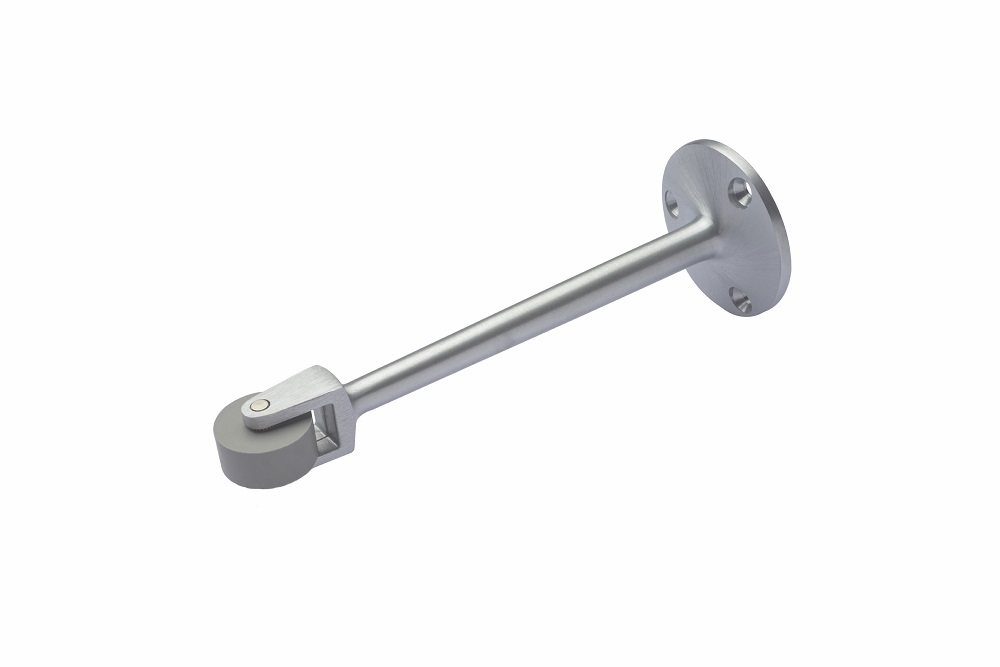

Rockwood 456L Straight Roller Stop | 6-1/4" Long Projection Bumper
The Rockwood 456L Roller Stop is an essential architectural solution for complex door openings. Forged from solid cast brass, this heavy-duty stop is specifically designed for environments where doors swing into one another at odd angles. Its extended 6-1/4" projection ensures that the door leaf makes contact with the roller rather than the hardware or the adjacent door, preventing costly damage in hospitals, schools, hotels and office complexes.
Professional Grade Protection & Design
- Long-Reach Performance: Featuring an extended 6-1/4" projection, the 456L provides the necessary clearance to protect oversized hardware or doors with deep frames.
- Solid Cast Brass Construction: Built for institutional durability, the solid brass body offers superior strength and a premium US26D Satin Chrome finish that resists corrosion and heavy wear.
- DuraFlex Roller Bumper: Equipped with a non-marring DuraFlex roller, which allows the door to glide safely across the stop without scuffing or hanging up, ensuring smooth mechanical operation.
- Maintenance-Friendly Design: To extend the lifespan of your installation, the unit is compatible with the Rockwood 576B replacement roller, allowing for quick field repairs without removing the entire base.
- Architectural Compliance: Meets ANSI/BHMA 156.16: L02191 standards, making it a reliable choice for meeting strict building specifications and fire safety requirements.
Technical Specifications
- Model: Rockwood 456L
- Material: Solid Cast Brass
- Bumper: DuraFlex Roller (Replacement Part #576B)
- Projection: 6-1/4"
- Base Diameter: 2"
- Fasteners: Includes 3 ea. #8 x 3/4" OH SMS (Oval Head Sheet Metal Screws)
Roller Stops are used when two doors swing into each other.
Use Rockwood 455 curved roller stop when your situation is like this:
Use the straight roller stop for doors that are back to back swinging.
They are available in two different projection lengths. Rockwood 456 is 4-9/16” projection and 456L is 6-1/4” projection.
There are only two other options if roller stops are not used to prevent damage to the doors:
- An Overhead Stop
- A Hinge Pin Stop
The advantage with the roller stop is that it closes one door as the second door is opening.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Stop Type | Roller Stop |
| Projection | 6-1/4 Inch |
