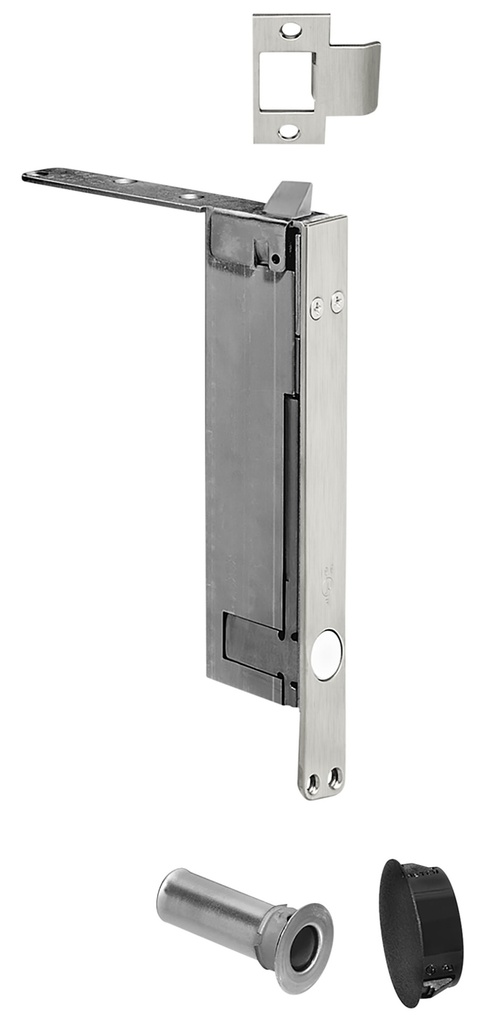

Rockwood 2945 Combination Flush Bolt Set | For Wood Fire Doors
The Rockwood 2949 Self-Latching Flush Bolt Set is a specialized safety solution designed for the inactive leaf of fire-rated wood and composite doors. This set pairs a self-latching top bolt with a heat-activated bottom fire bolt, effectively eliminating the need for floor-mounted strikes or complex floor preparation. Finished in US32D Brushed Stainless Steel, it provides a sleek, modern appearance for doors up to 4'W x 9'H while maintaining strict UL compliance.
Advanced Fire Protection & Life Safety
- Self-Latching Top Bolt: The top bolt automatically engages when the inactive door closes. It remains latched even when the active door is opened, releasing only when the user presses the plunger button on the bolt face.
- Eliminate Floor Obstructions: The included Bottom Fire Bolt replaces traditional bottom automatic flush bolts. By removing the floor strike, you create a seamless, barrier-free transition that is easier to clean and safer for foot traffic.
- Heat-Activated Security: Engineered for emergency performance; when temperatures reach 230°F, the thermal plug melts, allowing the fire bolt to project and lock the door leaves together to prevent fire spread.
- Override & Protection: Features a built-in override mechanism that prevents damage to the door or hardware if the bolt head is blocked, ensuring long-term reliability in high-traffic settings.
- Low Operating Force: With a 5 lbs. maximum closing force, this hardware ensures smooth operation and accessibility without compromising security.
Technical Specifications
- Model: Rockwood 2949 (US32D Finish)
- Application: UL Listed 20-Minute Wood Core & Composite Doors
- Material: Stainless Steel and Brass
- Top Bolt Size: 1" x 8-1/2"
- Bottom Bolt Size: 13/16" Diameter
- Handing: Non-Handed (Universal for any swing)
- Fasteners: Includes 6 ea. #8 x 3/4" FH combo screws, 2 ea. plastic anchors, and 3 ea. #10 x 1" FH wood screws.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Wood Door |
| Fire Rated | Fire Rated |
