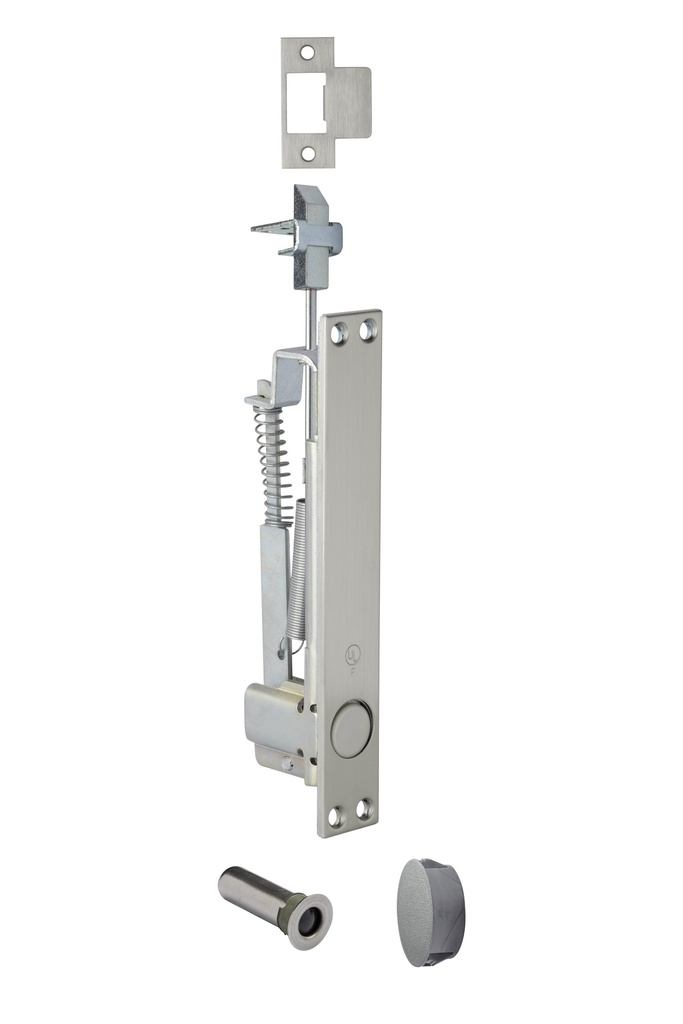

Rockwood 2849 Self-Latching Flush Bolt with Bottom Fire Bolt | For Metal Doors
The Rockwood 2849 is an innovative, high-security hardware solution designed for the inactive leaf of a pair of fire-rated hollow metal doors. This set features a self-latching top bolt paired with a heat-activated bottom fire bolt, effectively eliminating the need for traditional floor prep, bottom flush bolts, and dust-proof strikes. UL Listed for metal doors labeled A through E (up to 4'W x 8'H), it ensures your facility remains compliant with the most stringent life-safety standards.
Advanced Safety & Streamlined Installation
- Self-Latching Security: The top bolt automatically engages when the inactive door closes. It remains latched even when the active leaf is opened, releasing only when the user presses the plunger button on the bolt face.
- Eliminate Floor Prep: The included Bottom Fire Bolt removes the requirement for a floor-mounted strike. This not only saves installation labor but also creates a cleaner, barrier-free floor transition—perfect for hospitals and high-traffic corridors.
- Heat-Activated Fire Protection: In the event of a fire reaching 230°F, the thermal plug and cover melt, allowing the fire bolt to automatically project and lock the door leaves together.
- Misalignment Tolerance: Designed for the real world, the oversized strike hole for the fire bolt accommodates minor door misalignments, ensuring reliable operation even as buildings settle.
- Adjustable Precision: The top bolt head rod is adjustable up to 1-1/2", allowing for a perfect, snug fit against the header strike.
Technical Specifications
- Model: Rockwood 2849
- Application: Fire-Rated Metal Doors (A, B, C, D, & E labels)
- Material: Brass and Stainless Steel
- Top Bolt Size: 1" x 6-3/4"
- Bottom Bolt Size: 13/16" Diameter
- Closing Force: Low-friction design (5 lbs. maximum)
- Handing: Non-Handed (Works for any door swing)
- Fasteners: Includes 8 ea. #8 x 3/4" FH combo screws and 4 ea. plastic anchors.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Metal Door |
| Fire Rated | Fire Rated |
