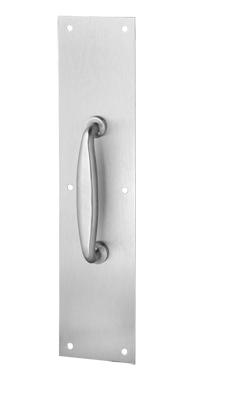

Rockwood Pull Plate 132 x 70B
Push Plate Size: 3-½" x 15" x .050 thick
Material: Aluminum, Brass, Bronze or Stainless Steel
Fastener: 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
Mounting Type: Type 1
Pull Handle Dimensions:
Pull Handle CTC: 5-1/2"
Pull Handle Overall: 6-3/8"
Base diameter: 7/8"
Projection: 1-7/8"
Clearance: 1-3/8"
ANSI: A156.6: J405
*** Pull Plate shown is not intended for Back-to-Back mounting. Please contact us for a quote if this is your application ***
General - US Finishes | 630 - Satin Stainless Steel/ US32D or US3 - Polished Brass or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
Brand | Rockwood |
Plate Height | 15" |
Plate Width | 3.5" |
Center to Center Distance | 5-1/2" |
Pull Handle Overall Length | 6-3/8" |
Pulls Mounting Types | Type 1 - Thru Bolt |
Door Thickness | 1-3/4" Dr Thickness |
