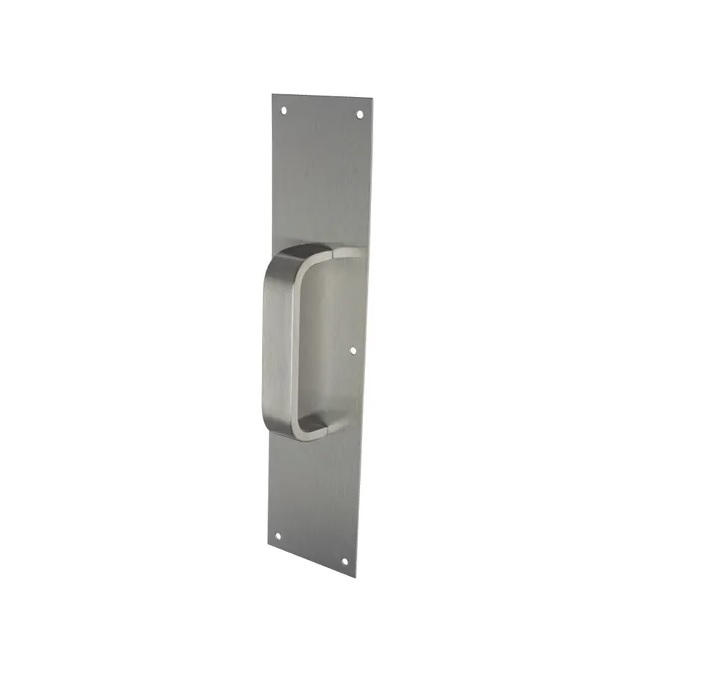

Rockwood 122 x 70C 32D Pull Plate | 4" x 16" Plate & 3/8" x 1-1/4" Solid Flat Bar Pull
Industrial Strength & Performance
- Low-Profile Flat Bar Design: The 3/8" thick flat bar pull provides a sleek, modern aesthetic and a comfortable grip without excessive projection from the door face.
- Maximized Surface Protection: The oversized 4" x 16" plate is specifically designed for wide-stile doors, providing a larger protective zone against impact and hand oils.
- Superior Thru-Bolt Mounting: Features 1/4-20 x 2-1/4" thru bolts and finish washers, creating a permanent, high-strength anchor through standard 1-3/4" thick doors.
Technical Specifications
- Model: Rockwood 122 x 70C
- Plate Size: 4" Wide x 16" High (.050" thick)
- Pull Handle CTC: 6" (Center-to-Center)
- Overall Pull Length: 7"
- Material Size: 3/8" x 1-1/4" Solid Flat Bar
- Available Materials: US32D Satin Stainless Steel or US10B Oil Rubbed Bronze
- Mounting: Type 1 Thru-Bolt (Single-side application)
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US10B - Oil Rubbed Bronze |
| Plate Material Gauge | 0.050" |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Pull Handle Overall Length | 7" |
| Center to Center Distance | 6" CTC |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Door Thickness | 1-3/4" Dr Thickness |
