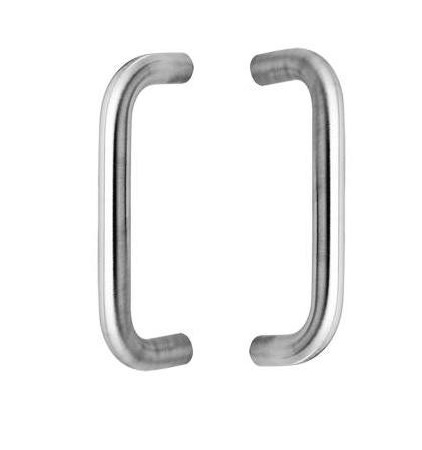

Rockwood 108 Straight Door Pull | 10" CTC Commercial Handle
The Rockwood 108 Straight Door Pull is a premium, solid architectural handle designed for high-traffic commercial environments. Featuring a 10-inch Center-to-Center (CTC) mounting distance, this handle is precision-crafted from high-quality materials including stainless steel, brass, and bronze. Its 3/4" solid round diameter provides a substantial grip and a clean, modern aesthetic that fits seamlessly into any professional building design.
Heavy-Duty Engineering & Versatile Mounting
- High-Traffic Durability: Forged from solid material (not hollow tubing), this handle is built to withstand the constant mechanical stress of busy entrances in schools, hospitals, and retail centers.
- Type 1 Thru Bolt Mounting: Comes standard with a 1/4-20 x 2-1/4" thru bolt and finish washer. This secure mounting method is designed for 1-3/4" thick doors, providing a permanent connection that won't loosen over time.
- ANSI/BHMA Certified: Rated ANSI A156.6: J401, ensuring this hardware meets the highest industry standards for strength, finish quality, and architectural performance.
- ADA Compliant Clearance: With a 1-7/8" clearance and a 2-5/8" projection, this pull provides ample space for a comfortable grip while maintaining a low-profile look.
- Custom Mounting Options: Available by quote with Heavy Duty (1HD) hex drive fasteners for high-abuse areas or concealed mounting (Type 6) for a hardware-free appearance on the door face.
Technical Specifications
- Model: Rockwood 108
- Center to Center (CTC): 10"
- Overall Length: 10-3/4"
- Material Diameter: 3/4" Solid
- Projection: 2-5/8"
- Clearance: 1-7/8"
- Fasteners: 1/4-20 x 2-1/4" Thru Bolt & Finish Washer (Type 1)
- Standard Finish: US26D Satin Chrome (Other architectural finishes available)
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Pull Handle Overall Length | 10-3/4" |
| Center to Center Distance | 10" |
| Pulls Mounting Types | Type 16 - Back To Back Mounting |
| Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
