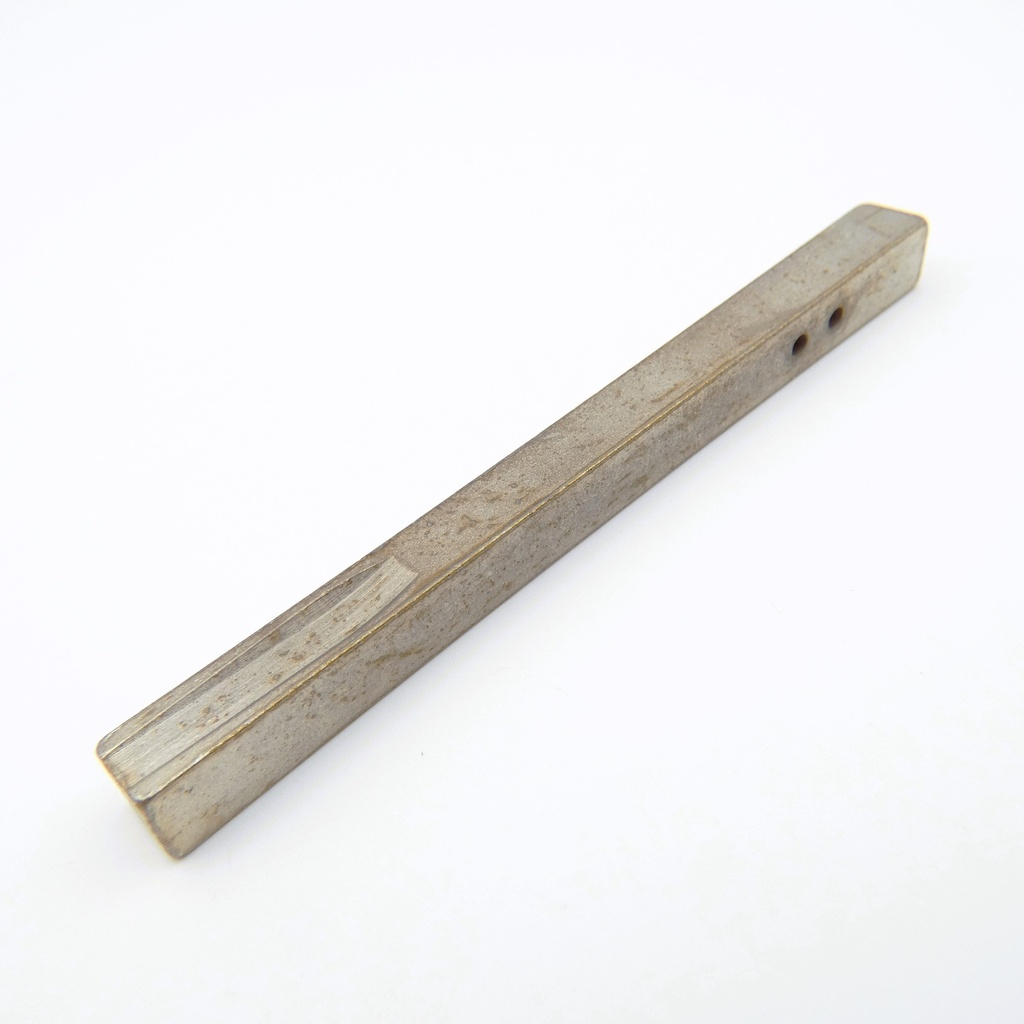

Accentra (Formerly Yale) 1173L Replacement Spindle - 8800(FL) Series

The Accentra 1173L is a genuine OEM Replacement Spindle engineered specifically for the 8800 and 8800FL (Fairfield) Series Mortise Locks. This spindle acts as the primary drive shaft, transmitting rotational force from the lever handle to the internal hubs of the mortise lock case to retract the latchbolt. Precision-cut to a 4-1/2" length, this spindle is the factory-spec solution for repairing worn, twisted, or snapped lever drives in high-traffic commercial environments.

Institutional Grade Features

• 8800 & 8800FL Series Precision: Engineered specifically for the timing and hub depth of Accentra’s heavy-duty 8800 series, ensuring zero "slop" in the lever rotation.
• Optimized Dimensions: Features the standard 3/8" x 3/8" square profile with an overall 4-1/2" length, making it ideal for standard 1-3/4" thick doors using heavy-duty rose or escutcheon trim.
• High-Torque Steel: Manufactured from hardened steel alloy to withstand the extreme rotational stress found in schools, hospitals, and municipal buildings.
• Direct OEM Replacement: Restores the crisp, responsive feel of the lever handle, eliminating the "slipping" movement caused by rounded or fatigued legacy spindles.
• Legacy Compatibility: Fully compatible with older Yale-branded 8800/8800FL series mortise locks, facilitating a seamless maintenance transition to the Accentra brand.

Technical Specifications

• Manufacturer: Accentra (Formerly Yale / ASSA ABLOY)
• Part Number: 1173L
• Dimensions: 3/8" x 3/8" x 4-1/2" Length
• Compatible Lock Series: 8800 and 8800FL Series Mortise Locks
• Standard Door Thickness: 1-3/4" (44mm)
• Material: Hardened Steel Alloy
