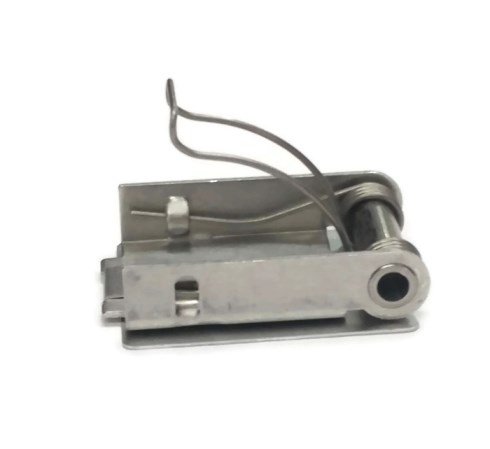

Sargent 98-2159 Bolt Spring & Bracket | For 9800 Series Rim Devices

The Sargent 98-2159 is a genuine OEM Bolt Spring and Bracket Assembly designed exclusively for the Sargent 9800 Series Rim Exit Devices. As a critical internal component, this assembly provides the necessary tension to ensure the latch bolt extends fully and stays securely deadlocked when the door is closed. Identified as Part #112 on official technical diagrams, this kit is the factory-spec solution for restoring the mechanical snap and security of your rim panic bar.

Institutional Grade Features & Benefits

• Series-Specific Engineering: Tailored precisely for the chassis of the 9800 Series, ensuring a perfect fit and proper mechanical timing.
• High-Tension Spring Steel: The included bolt spring is manufactured from premium spring-tempered steel to resist fatigue and maintain consistent pressure over millions of cycles.
• Reinforced Mounting Bracket: The heavy-duty bracket provides a rigid anchor point for the spring, preventing the "binding" or misalignment often found with worn-out internal hardware.
• Critical Security Component: Ensures the latch bolt returns to the locked position immediately upon door closure, maintaining the building's security perimeter.
• OEM Reliability: Replacing only the worn spring and bracket (Part #112) is a cost-effective alternative to replacing the entire 9800 series chassis.

Technical Specifications

• Model Number: 98-2159
• Part Type: Bolt Spring and Bracket Assembly
• Compatibility: Sargent 9800 Series Rim Exit Devices
• Technical Reference: Part #112 on Sargent 9800 Exploded View Diagrams
• Material: Steel Bracket and Tempered Spring Steel

​
