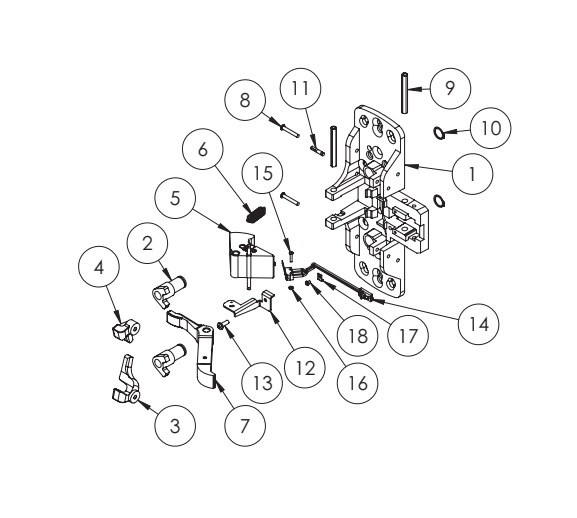

Sargent 68-6075 Center Chassis Assembly w/ Latchbolt Monitoring - 53-8800 Series Windstorm Rated

https://www.doorwaysplus.com/web/image/product.template/31956/image_1920?unique=4ae29d2
(0 review)

Sargent 68-6075 Center Chassis Assembly w/ Latchbolt Monitoring - 53-8800 Series

760.19 760.19 USD 760.19

760.19

Not Available For Sale


  • Brand
  • Series
  • Part Type
  • Fire Rated
  • Exit Device Type
  • Door Handing
  • Door Handing
  • Sargent Exit Device Options

This combination does not exist.


Share :

Sargent 68-6075 Center Chassis Assembly w/ Latchbolt Monitoring - 53-8800 Series Windstorm Rated


The Sargent 68-4561 is a genuine OEM Center Chassis Assembly (Active Case) specifically designed for the Sargent 53-WS-8800 Series Windstorm Rated Rim Exit Device. This high-performance assembly serves as the mechanical heart of the device while providing integrated Latchbolt Monitoring (-53). Engineered for high-security environments, this factory-spec chassis allows you to maintain the physical security and electronic surveillance of your 8800 series hardware without a full system replacement.

Institutional Grade Features

  • Integrated Latchbolt Monitoring (-53): Built-in internal switches provide real-time status feedback to access control systems, alerting security if the latch is retracted or the door is tampered with.
  • Grade 1 Mechanical Logic: Houses the heavy-duty lift levers and precision springs required for smooth, consistent latch operation over hundreds of thousands of cycles.
  • Seamless Electronic Integration: Designed for a plug-and-play interface with standard building automation and security consoles.
  • Direct OEM Replacement: The professional solution for repairing monitored rim devices, ensuring the electronic signal remains accurate and the mechanical egress remains code-compliant.
  • Heavy-Duty Construction: Manufactured with high-strength alloys to resist the mechanical stress and vibration common in busy school, hospital, and commercial corridors.

Technical Specifications

  • Manufacturer: Sargent (ASSA ABLOY)
  • Model Number: 68-6075
  • Part Type: Windstorm Rated (WS) Center Chassis w/ Latchbolt Monitoring (-53)
  • Series Compatibility: Sargent 8800 Series (Rim Exit Device)
  • Handing: Field Reversible (Consult factory instructions for specific handed trim interface)
  • Inclusions: Sold "Less Cover" (Chassis only)


DoorwaysPlus Handing Chart for commercial doors



Brand Sargent
Series Sargent - 80 Series
Part Type Chassis Assembly
Fire Rated Non-Rated
Exit Device Type Rim Exit Device
Door Handing RHR, LHR
Sargent Exit Device Options 53 - Latchbolt Monitor Switch
53 Prefix Instructions.pdf
Download
SARGENT 80 Series (12-)(WS)8800, (12-)8888 Wide Stile Rim Template.pdf
Download
Sargent 80 Series Electromechanical Options Template.pdf
Download
Sargent 80 Series Parts Manual A8231C.pdf
Download
Sargent 8888 Installation Instructions.pdf
Download
