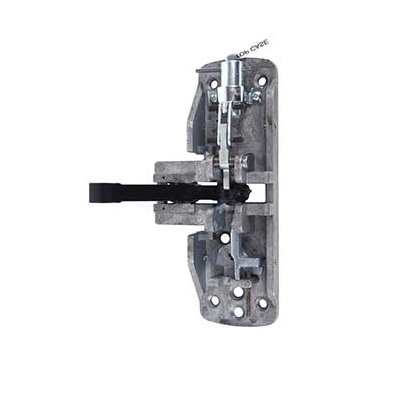

Sargent 68-4569 Center Chassis Assembly - 12-NB-8700 Series - RHR
The Sargent 68-4569 is a genuine OEM Center Chassis Assembly (Active Case) specifically designed for the Sargent 12-NB-8700 Series Surface Vertical Rod (SVR) exit device. This specialized chassis is engineered for No Bottom Rod (NB) applications, which are the industry standard for fire-rated openings where floor strikes are undesirable. Precision-configured for Right Hand Reverse (RHR) openings and sold "Less Cover," this factory-spec assembly is the professional solution for maintaining life-safety compliance on your top-latching fire doors.
Institutional Grade Features & Benefits
- "NB" (No Bottom Rod) Engineering: Specifically timed and tensioned to operate the top rod only, reducing mechanical complexity and maintenance.
- Fire-Rated (12-) Compliance: UL-certified for use on fire-labeled door assemblies, housing the heavy-duty components required for positive latching under heat.
- RHR Specific Configuration: Factory-set for Right Hand Reverse doors to ensure internal lift-lever geometry and rod attachment points align perfectly with your header latch.
- Direct OEM Replacement: Allows for a modular repair of the 12-NB-8700 device, restoring Grade 1 performance without replacing the entire rail or rod.
- Heavy-Duty Durability: Constructed with high-strength alloys to withstand the constant cycling found in schools, hospitals, and high-occupancy commercial exits.
Technical Specifications
- Manufacturer: Sargent (ASSA ABLOY)
- Model Number: 68-4569
- Part Type: Center Chassis / Active Case Assembly
- Series Compatibility: Sargent 12-NB-8700 (Fire Rated, No Bottom Rod)
- Handing: Right Hand Reverse (RHR) - Handing information is required upon order.
- Inclusions: Sold "Less Cover" (Chassis only)
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Fire Rated, Non-Rated |
| Door Handing | RHR |
| Exit Device Type | SVR LBR Device |
