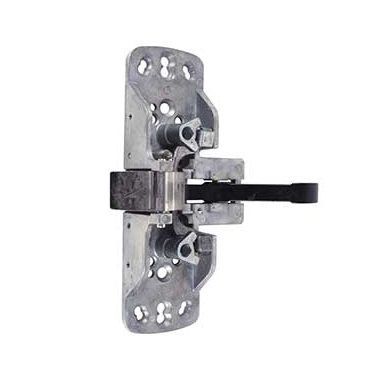

Sargent 68-4261 Center Chassis Assembly - 8800 Series - RHR or LHR

The Sargent 68-4261 is a genuine OEM Center Chassis Assembly (Active Case) designed specifically for the Sargent 8800 Series rim exit device. As the core mechanical component of the panic bar, the center chassis houses the latch bolt, return springs, and the vertical/horizontal timing logic required for secure and reliable egress. Whether you are replacing a damaged housing or refreshing a high-traffic opening, this factory-spec assembly ensures your exit device maintains its Grade 1 fire and life-safety ratings.

Institutional Grade Features & Benefits

• Precision Engineering: Manufactured to the exact tolerances of the 8800 Series, ensuring a smooth, "no-stick" operation of the push rail.
• Heavy-Duty Latch Logic: Features the internal mechanical architecture required for positive latching, critical for fire-rated door compliance.
• Handing Versatility: Available in both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) configurations to match your specific architectural opening.

• Direct OEM Replacement: The professional solution for a failed chassis; replacing the 68-4261 allows you to restore the device without the cost of a full new exit device.
• Durable Construction: Built from high-strength alloys designed to withstand the heavy abuse of school, hospital, and commercial environments.


Technical Specifications

• Manufacturer: Sargent (ASSA ABLOY)
• Model Number: 68-4261
• Part Type: Center Chassis / Active Case Assembly
• Series Compatibility: Sargent 8800 Series Rim Exit Devices
• Handing: Specify RHR or LHR (Handing information is required upon order)

Pro-Tip for Facility Managers

The Sargent 68-4261 is the most complex component of the 8800 series. If your panic bar is difficult to push, the latch is dragging, or the bar fails to retract fully, the internal timing within the center chassis has likely failed. Because this unit is handed, please verify your door swing before ordering to ensure the latch bolt orientation is correct for your opening.

Special Note: Door handing information is required upon order placement. If you are unsure of the handing of your door, please compare the picture above to your opening for clarification.

Installation Note

The center chassis is the primary point of stress whenever the door is opened. In high-traffic or high-abuse areas, the screws securing the chassis can vibrate loose, causing the latch to misalign and bind against the strike. To achieve maximum stability and protect the internal 68-4261 mechanics, we highly recommend mounting this assembly using high-strength thru bolts. A stable, thru-bolted connection clamps the chassis firmly to the door face, preventing the device from twisting and ensuring the latch bolt hits the strike perfectly every time.
