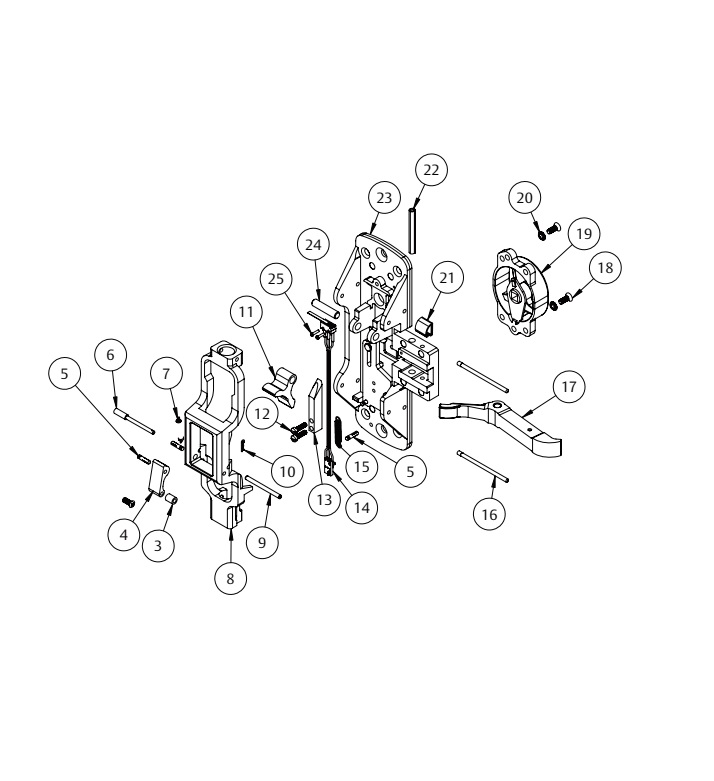

Sargent 68-3714 LHR Center Chassis Assembly - 12-53-HC-8700 Series
The Sargent 68-3714 is a genuine OEM Center Chassis Assembly (Active Case) specifically engineered for the Sargent 12-HC-8700 Series Surface Vertical Rod (SVR) exit device. This is a premium, multi-certified component designed for high-security environments. It is Fire-Rated (12-), Hurricane Code (HC) compliant, and features integrated Latchbolt Monitoring (-53). Configured for Left Hand Reverse (LHR) openings and sold "Less Cover," this factory-spec assembly is the professional solution for maintaining secure, monitored, and storm-ready fire exits.
Institutional Grade Features
- Dual-Code Compliance: UL-certified for fire-labeled openings and rigorously tested to meet Hurricane Code (HC) requirements for high-velocity wind zones and impact resistance.
- Integrated Latchbolt Monitoring: Includes the internal mechanical prep and electrical switches required to provide real-time status feedback to your access control or building automation system.
- LHR Specific Engineering: Factory-configured for Left Hand Reverse doors to ensure perfect synchronization between the push rail, the vertical rods, and the electronic monitoring signal.
- Direct OEM Replacement: Allows for a modular repair of the 12-HC-8700 device, restoring mechanical egress, storm protection, and electronic surveillance without replacing the entire unit.
- Heavy-Duty Construction: Built from high-strength alloys designed to withstand the immense pressures of windstorms and the high-frequency cycling of institutional use.
Technical Specifications
- Manufacturer: Sargent (ASSA ABLOY)
- Model Number: 68-3714
- Part Type: Center Chassis w/ Latchbolt Monitoring (-53)
- Series Compatibility: Sargent 12-HC-8700 (Fire & Hurricane Rated)
- Handing: Left Hand Reverse (LHR) — Handing information is required upon order.
- Inclusions: Sold "Less Cover" (Chassis only)
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Fire Rated |
| Exit Device Type | SVR Exit Device |
| Door Handing | LHR |
| Sargent Exit Device Options | 53 - Latchbolt Monitor Switch |
