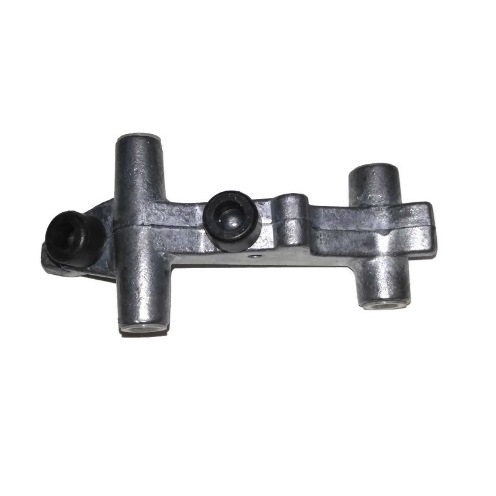

Sargent 68-3609 Connecting Arm | For 20, 30 & 80 Series Exit Devices
The Sargent 68-3609 is a genuine OEM replacement Connecting Arm designed for the internal rail assembly of Sargent 20, 30, and 80 Series Exit Devices. This structural linkage converts the inward pressure on the push-pad into the lateral movement required to retract the latch. Identified as Part #9 on official Sargent technical diagrams, these arms are critical for the smooth, reliable operation of your facility's panic hardware.
Institutional Grade Features & Benefits
- Universal Rail Compatibility: Engineered to fit the internal architecture of Sargent’s flagship 80 Series and the versatile 20/30 Series push-rail devices.
- Structural Durability: Manufactured from high-strength alloy to resist bending or warping under the heavy torque of high-traffic commercial use.
- Balanced Mechanical Action: Two arms are required per rail device to ensure the push-pad moves evenly and prevents the mechanism from binding or "cocking" to one side.
- OEM Precision Fit: Guaranteed to align perfectly with factory pivot pins and springs, restoring the original mechanical advantage and "snap" of the device.
- Life-Safety Reliability: Replacing worn or bent arms ensures that the exit device will operate correctly during an emergency egress situation.
Technical Specifications
- Model Number: 68-3609
- Part Type: Push Rail Connecting Arm / Linkage
- Series Compatibility: Sargent 20, 30, and 80 Series
- Quantity Required: 2 per Rail Device
- Technical Reference: Part #9 on Sargent Rail Assembly Diagrams
| Brand | Sargent |
| Series | Sargent - 20 Series, Sargent - 30 Series, Sargent - 80 Series |
