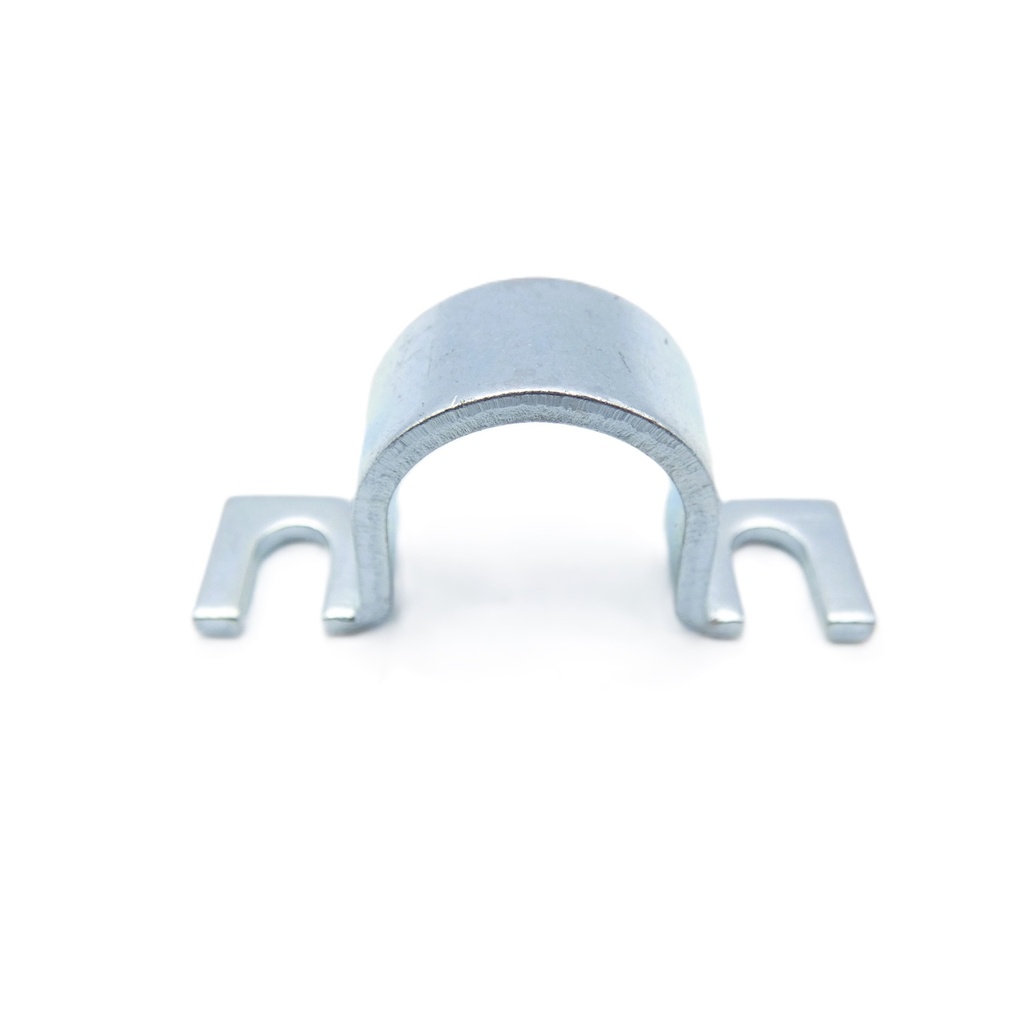

Sargent 68-1180 Tube Support - 80 Series
The Sargent 68-1180 is a genuine OEM Tube Support designed for use within the Sargent 80 Series Exit Device line (including 8800, 8900, and 8700 series). This internal structural bracket is engineered to sit inside the push rail, providing the necessary rigidity and alignment for the main tube. By maintaining the precise spacing required for the internal mechanical assemblies, this support ensures the push bar operates smoothly without sagging or binding.
Institutional Grade Features
- Structural Reinforcement: Specifically designed to prevent the exit device tube from bowing or shifting during high-frequency use.
- Precision Fit: Manufactured to the exact tolerances required for Sargent’s Grade 1 wide-stile panic bars.
- Direct OEM Replacement: The professional solution for repairing damaged or bent rail supports without needing to replace the entire push bar assembly.
- Corrosion-Resistant Finish: Treated to withstand the internal environmental conditions of high-traffic commercial and institutional buildings.
- Cost-Effective Maintenance: A simple hardware fix that restores the structural integrity of your exit device at a fraction of the cost of new hardware.
Technical Specifications
- Manufacturer: Sargent (ASSA ABLOY)
- Model Number: 68-1180
- Part Type: Internal Tube Support
- Series Compatibility: Sargent 80 Series (8800, 8900, 8700, etc.)
- Note: Sold "Less Screws" (Requires #01-3595 mounting screws, sold separately).
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Non-Rated, Fire Rated |
| Exit Device Type | SVR Exit Device |
Sargent 80 Series Parts Manual A8231C.pdf
Download
