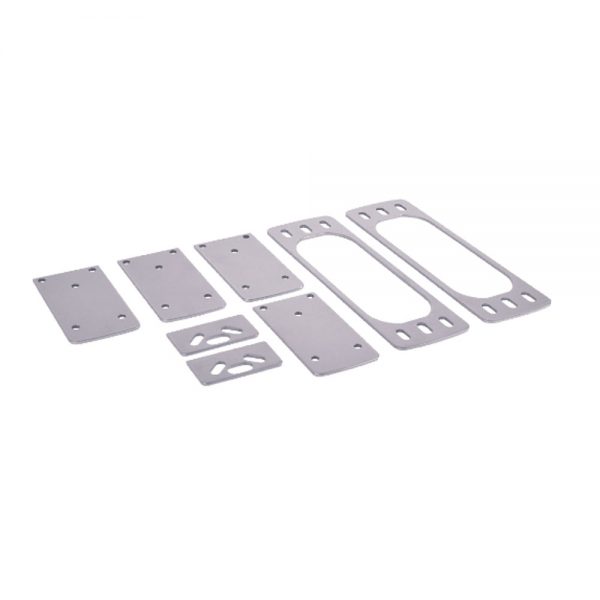

Sargent 587 EN Shim Kit | For 8700 Series Surface Vertical Rods

The Sargent 587 EN is a specialized architectural hardware kit designed to ensure the perfect installation of Sargent 8700 Series Surface Vertical Rod (SVR) Exit Devices. When a door face is not perfectly flat—often due to glass lite frames, decorative trim, or structural bowing—these shims provide the necessary 1/8" clearance required for the rods and chassis to operate without binding. Finished in EN (Aluminum Enamel), these shims provide a clean, professional match for standard aluminum and satin chrome hardware.

Comprehensive 12-Piece Adjustment Kit

• Main Chassis Alignment: Includes (2) 1/8" shims to lift the center pushpad assembly away from the door face, ensuring smooth mechanical travel.

• Latch Assembly Spacers: Includes (4) 1/8" shims for the top and bottom latch cases, allowing for precise engagement with the strikes.
• Rod Guide Clearance: Includes (4) 1/8" shims for the vertical rod guides, preventing "rod rattle" and friction against the door surface.
• End Cap Support: Includes (2) 1/8" shims for the end cap assembly, maintaining a level profile across the entire length of the exit device.
• Durable EN Finish: The Aluminum Enamel coating provides corrosion resistance and a seamless aesthetic match for commercial storefronts and hollow metal doors.

Technical Specifications

• Model Number: 587
• Finish: EN (Aluminum Enamel)
• Compatibility: Sargent 8700 Series Surface Vertical Rod Exit Devices
• Total Pieces: 12
• Shim Thickness: 1/8" (Standard)
• Material: High-strength architectural alloy

The Sargent 587 EN is a "lifesaver" during a difficult installation. If your vertical rods are rubbing against the door or the latches aren't clicking into place, it is likely an alignment issue caused by the door's surface. Because SVR devices are under constant tension, using these factory-spec shims is far superior to using "makeshift" washers. For a secure and permanent installation, ensure you use longer thru bolts or mounting screws if the 1/8" shim depth requires additional thread engagement to reach the door's reinforcing plates.

Installation Note: These shims are designed to be stacked if more than 1/8" of clearance is required. However, always verify that your vertical rods remain plumb (perfectly vertical) to prevent internal spring fatigue within the chassis.
