Sargent 52-5660 Standard ET Wire Harness | Fail Safe & Fail Secure

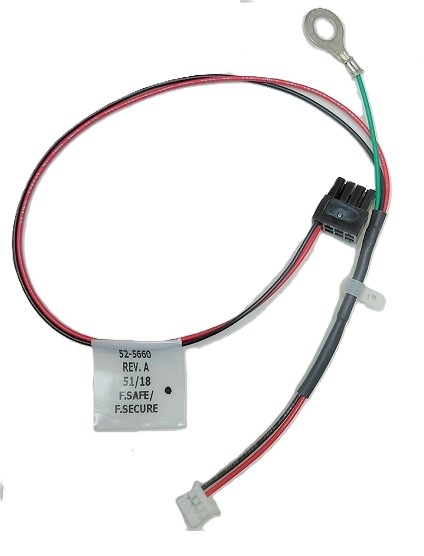

The Sargent 52-5660 is the official OEM replacement wire harness designed for Sargent 80 Series Exit Device Outside ET Trim. This high-connectivity harness provides the essential electrical path between your building's access control system and the internal motor actuator. Engineered for the latest generation of Sargent hardware, this harness is compatible with all motorized ET trim models manufactured after 2018.

Precision Connectivity & Access Control Reliability

• Dual-Function Support: Fully compatible with both Fail Safe (power to lock) and Fail Secure (power to unlock) configurations, allowing for versatile security setups.
• Seamless Motor Integration: Specifically designed to plug directly into the 68-7546 Motor Actuator, ensuring a secure, low-resistance connection that prevents signal intermittent failure.
• Post-2018 Hardware Standard: Tailored for the modern internal chassis of the 80 Series, featuring improved insulation and flexible jacketing to resist pinching during installation.
• Component Accuracy: Identified as Item #14 on the Sargent ET trim exploded parts diagram, making it easy for facility managers to source the exact part needed for repairs.

• Plug-and-Play Maintenance: Features factory-molded connectors that eliminate the need for field splicing, reducing labor time and potential wiring errors.

Technical Specifications

• Model Number: 52-5660
• Part Type: Motorized Trim Wire Harness
• Compatibility: Sargent 80 Series ET Trim (Post-2018 manufacture)
• Application: Electrified Outside Lever Trim
• Diagram Reference: Item #14
• Related Components: Works in conjunction with Motor Actuator #68-7546 (Sold Separately)

​

The Sargent 52-5660 is often the "missing link" when troubleshooting an electrified lever that has power at the transfer hinge but no movement at the motor. Over years of heavy use, standard door vibrations can cause wear on inferior wiring; this genuine Sargent harness is built with high-flex conductors to prevent internal wire breakage. When reassembling the trim, use the integrated clips within the chassis to route the harness away from the thru bolts and moving mechanical parts to prevent wire pinching.

Installation Note: Before ordering, please confirm that your ET trim was manufactured after 2018, as the connector pin-outs changed for the newer motor assemblies. If you are replacing a damaged harness, we highly recommend inspecting the 68-7546 Motor Actuator at the same time to ensure the connection pins are clean and straight.
