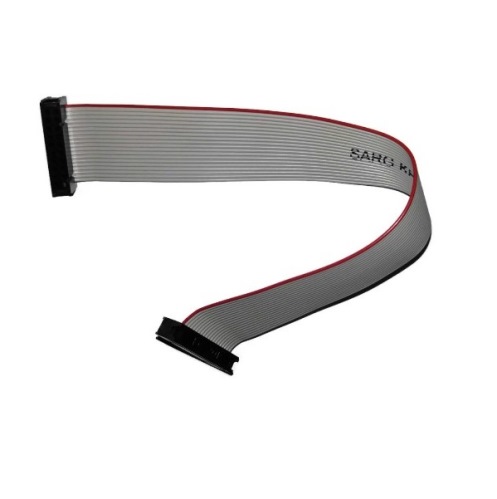

Sargent 52-2562 Ribbon Cable | 20-Conductor for KP Series Locks

The Sargent 52-2562 is a genuine OEM Replacement Ribbon Cable engineered for the Sargent KP Series standalone electronic lock line. Featuring a 20-conductor configuration, this cable provides the vital data link between the exterior keypad interface and the internal controller board. It is a universal repair part compatible with Sargent’s electronic Mortise locks, Cylindrical locks, and Exit Device trim.

Institutional Grade Features & Benefits

• Universal KP Series Compatibility: One cable works across the Sargent keypad platform, including the KP8200 (Mortise), KP10 (Cylindrical), and KP8800/8900 (Exit Trim).
• 20-Conductor Precision: Engineered with the exact pin density required to support full keypad functionality and secure code transmission.
• Heavy-Duty Data Integrity: Manufactured with high-quality insulation to prevent signal interference and withstand the internal environment of a busy commercial door.
• Flexible Routing: Designed to be routed through tight internal raceways without crimping or breaking the delicate internal copper strands.
• Plug-and-Play Connection: Features factory-molded headers that snap securely into place, ensuring a vibration-resistant connection for high-traffic openings.

Technical Specifications

• Model Number: 52-2562
• Part Type: Keypad-to-Controller Ribbon Cable
• Conductor Count: 20-Pin
• Compatibility: Universal Sargent KP Series (Mortise, Cylindrical, Exit Trim)
• Application: Restores communication between keypad and main circuit board

​
