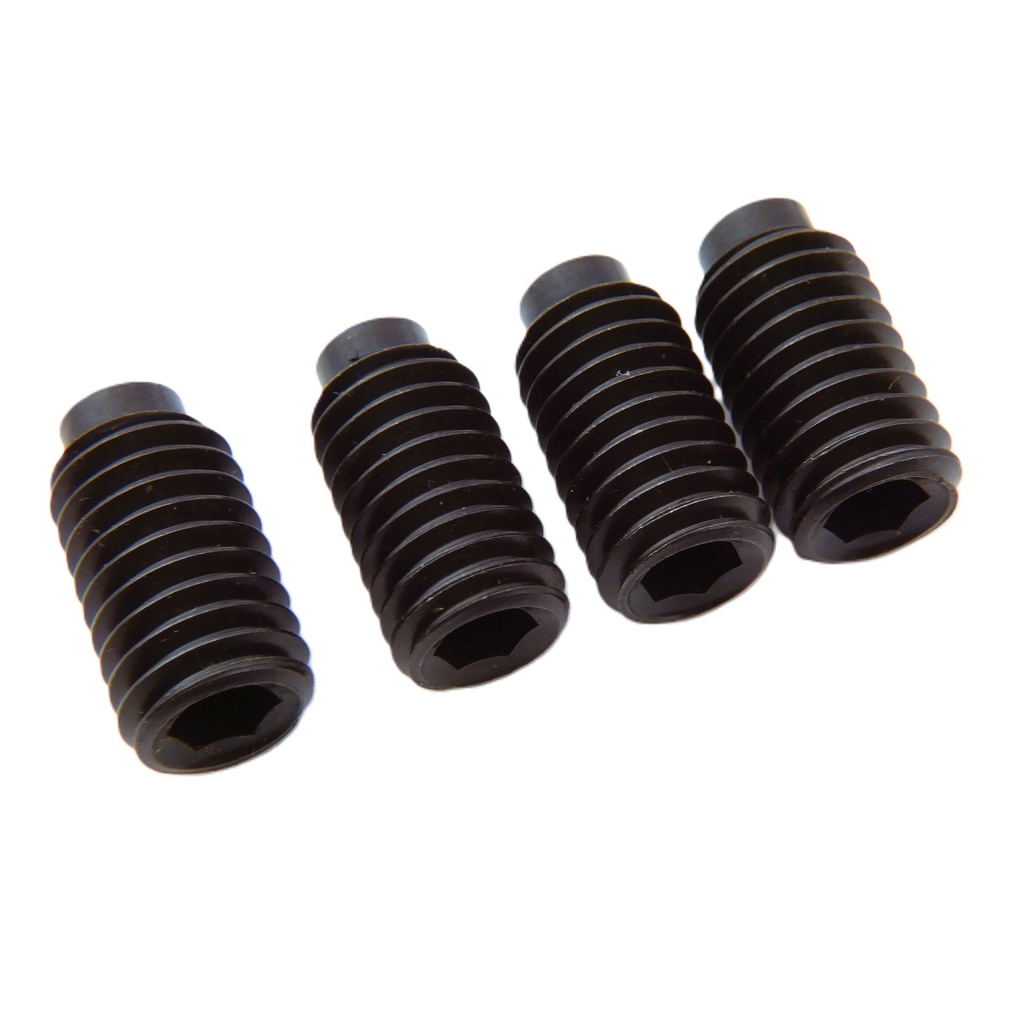

Sargent 01-1494 Dogging Socket Screws | Pack of 4 (7/8" Length)
The Sargent 01-1494 is a genuine OEM Dogging Socket Replacement Screw set specifically designed for the Active Chassis (Center Chassis) side of Sargent exit devices. While it shares the legacy root part number 97-0010, this version features a specific 7/8-inch length required for the deeper housing of the center chassis. Often called the "Bar Locking Screw" and identified as Part #43 on technical diagrams, these screws provide the mechanical anchor necessary for the device's dogging function.
Institutional Grade Features & Benefits
- Active Chassis Optimization: Specifically sized at 7/8" to clear the internal mechanics of the center chassis while ensuring deep thread engagement.
- Legacy Part Compatibility: The correct modern replacement for older 97-0010 specifications requiring the longer 7/8" bolt.
- High-Torque Durability: Manufactured from hardened steel to prevent head stripping during routine maintenance and adjustments.
- Essential Locking Hardware: These screws secure the dogging socket in place; without them, the push-rail cannot be locked in the retracted (open) position.
- Convenient Multi-Pack: Sold in a Package of 4, enough to service two complete exit devices (each center chassis requires 2 screws).
Technical Specifications
- Current Part Number: 01-1494
- Legacy Root Number: 97-0010
- Length: 7/8 Inch
- Technical Reference: Part #43 on Sargent Center Chassis Diagrams
- Application: Active Chassis / Center Chassis Side (2 required per case)
- Quantity: 4 Screws per Package
| Brand | Sargent |
| Series | Sargent - 90 Series |
| PKG Quantity | pkg 4 |
| Part Type | Dogging Kit |
