Sargent 68-5647 Narrow Rail Assembly for 80 Series Exit Devices — OEM Replacement, 33" to 36" Door Width

The Sargent 68-5647 is a genuine OEM Narrow Rail Assembly engineered as a direct replacement component for Sargent 80 Series exit devices. Also referenced by its rail stock size designation F, this assembly is sized to fit doors ranging from 33 inches to 36 inches in width, making it the correct choice for standard single-door commercial applications within that width range. Sourced directly from Sargent, this part maintains the precise tolerances and material quality required to restore your 80 Series exit device to full factory-spec performance without the need for field modification or custom fitting.

Institutional Grade Features & Benefits

• Genuine OEM Part: Manufactured by Sargent to original factory specifications, ensuring a fit-and-function match with your existing 80 Series exit device hardware.
• Correct Rail Stock Size (F): The 'F' rail stock designation confirms suitability for door widths of 33" to 36" — select this assembly when replacing a worn or damaged rail on doors within that width range.
• 80 Series Compatibility: Designed exclusively for the Sargent 80 Series exit device platform, a widely installed institutional and commercial exit device family found in schools, healthcare facilities, government buildings, and multi-tenant commercial properties.
• Narrow Rail Design: The narrow rail profile accommodates door configurations where a standard-width rail would not be appropriate, maintaining a clean aesthetic and proper mechanical function.
• Simplified Maintenance: Using a verified OEM assembly part number eliminates guesswork during service calls, reducing labor time and the risk of mismatched components in the field.
• Part Number Confidence: Order by confirmed Sargent part number 68-5647 to ensure you receive the correct assembly for your specific 80 Series exit device repair or replacement project.

Technical Specifications

Refer to the table below for all verified product attributes. Always cross-reference the door width and existing exit device series before ordering.

Technical Details

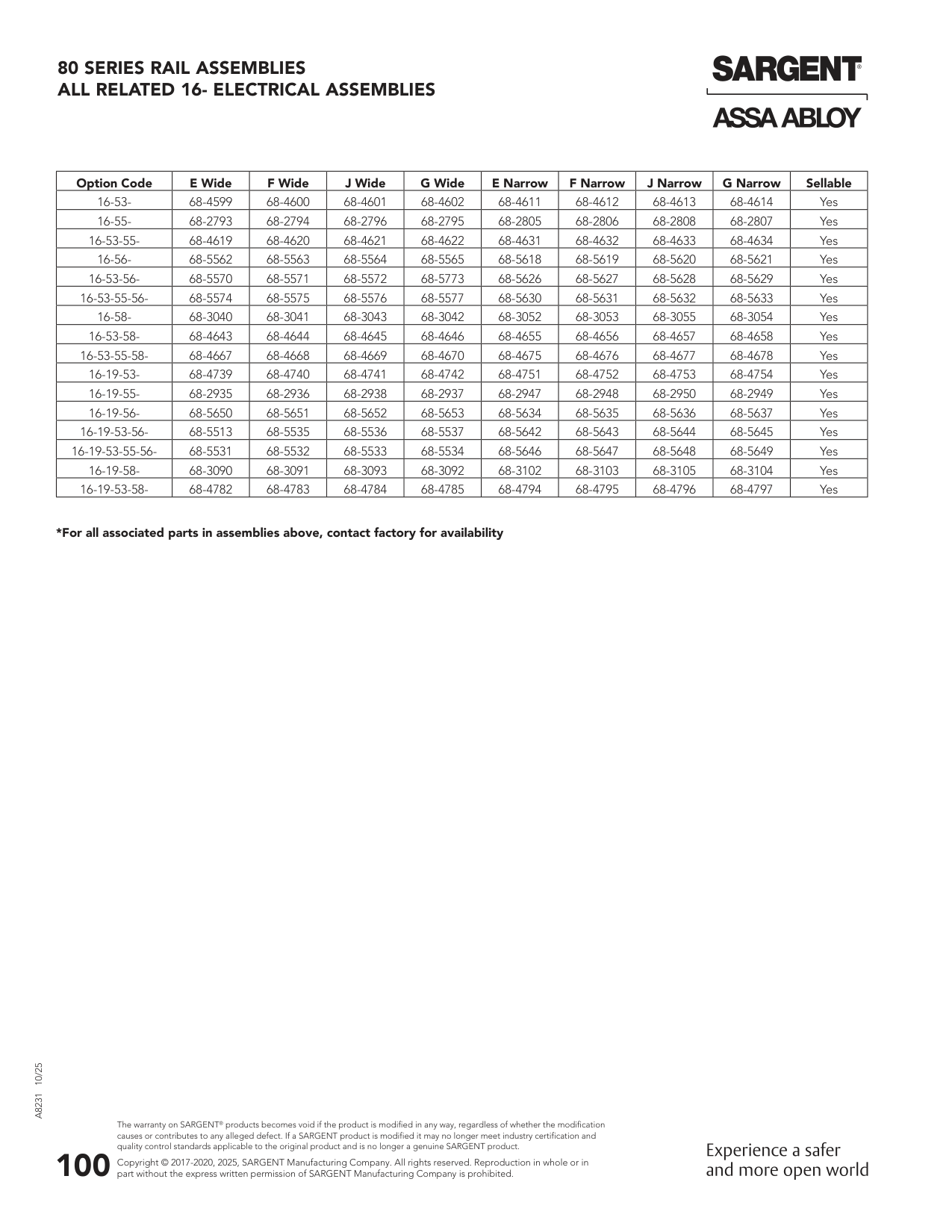

Parts List Illustration
