Sargent 68-3809 Rail Assembly 8F Narrow — Genuine OEM Replacement for Sargent 80 Series Exit Devices
The Sargent 68-3809 is a genuine OEM Rail Assembly designed as a direct replacement component for Sargent 80 Series exit devices. Also referenced by its full designation 68-3809 12-19-59, this narrow rail assembly carries the 8F stock size designation, meaning it is engineered to fit doors ranging from 33 inches to 36 inches in width. Sourced directly from Sargent, this assembly ensures precise fitment, consistent performance, and long-term reliability in commercial door hardware applications where maintaining the integrity of exit device operation is critical.
Institutional Grade Features & Benefits
- Genuine OEM Part: Manufactured by Sargent to exact factory specifications, ensuring a true drop-in replacement that preserves the performance and code compliance of your existing 80 Series exit device installation.
- 80 Series Compatibility: Engineered exclusively for the Sargent 80 Series exit device family, eliminating guesswork and reducing the risk of improper fitment or hardware failure.
- 8F Narrow Rail Sizing: The F rail stock size accommodates door widths from 33" to 36", making it the correct choice for standard-width commercial door openings within that range.
- Narrow Profile Design: The narrow rail configuration suits applications where a low-profile exit device appearance is required without sacrificing structural integrity or device function.
- Replacement Reliability: Replacing a worn, damaged, or missing rail assembly with an OEM part restores the exit device to its original operating condition, supporting continued egress code compliance in commercial and institutional buildings.
- Simplified Maintenance: Using the correct OEM rail assembly reduces installation time for door hardware technicians and facility maintenance teams, minimizing door downtime.
Applications
The Sargent 68-3809 Rail Assembly is suited for commercial, institutional, educational, healthcare, and government facilities that utilize Sargent 80 Series exit devices on standard-width doors (33"–36"). It is the appropriate service part when a rail assembly requires replacement due to physical damage, wear, or hardware upgrade projects requiring OEM components.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-3809 |
| Full Designation | 68-3809 12-19-59 |
| Part Type | Rail Assembly |
| Product Class | Exit Device Component |
| Series Compatibility | Sargent 80 Series Exit Device |
| Rail Stock Size | F — fits 33" to 36" door width |
| Rail Profile | Narrow |
| OEM / Aftermarket | Genuine OEM |

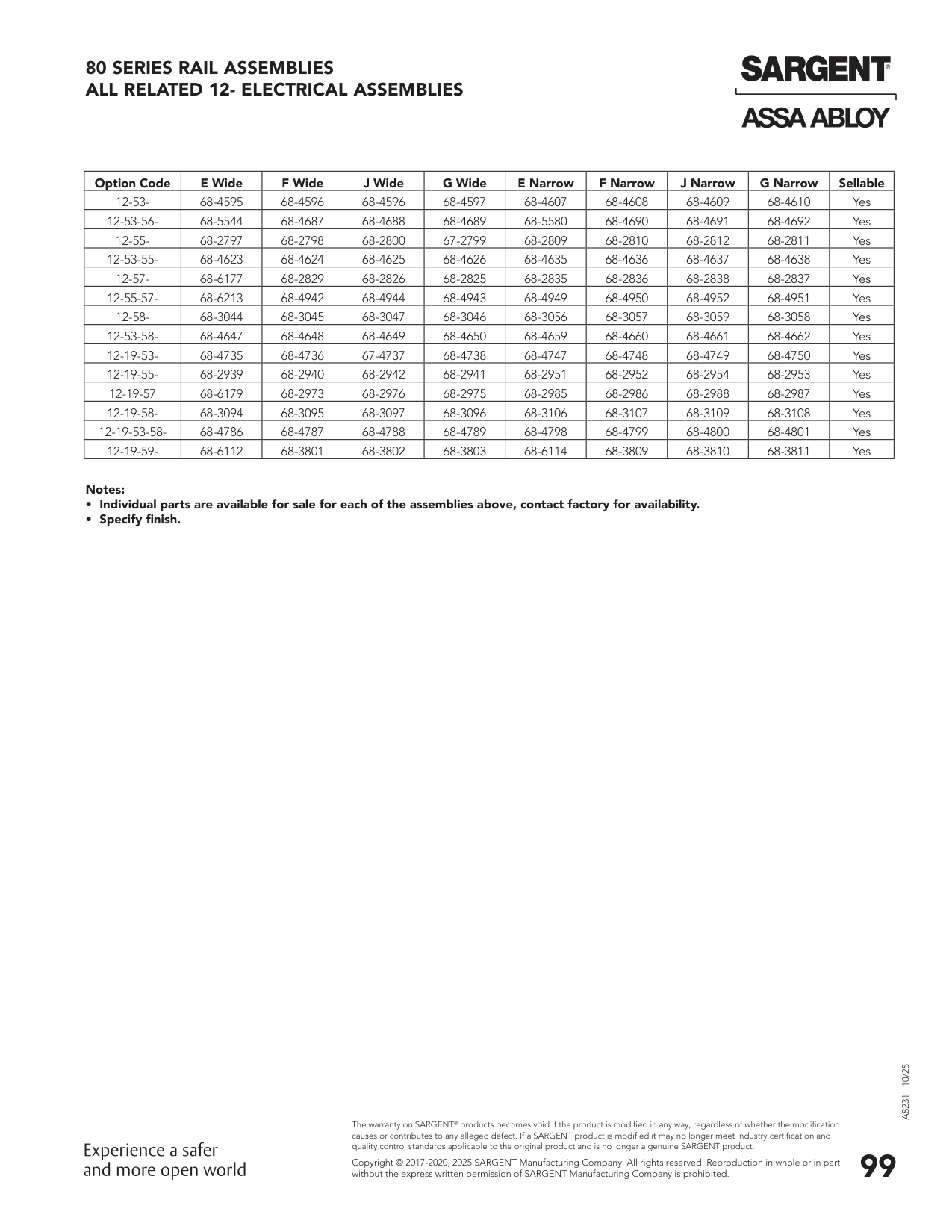

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
