Sargent 68-2343 Chassis Pack — 80 Series Exit Device Chassis Assembly (LHRB)

The Sargent 68-2343 is a genuine OEM Chassis Assembly (Chassis Pack) engineered for the Sargent 80 Series exit device. This core operating component serves as the mechanical heart of the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to permit egress. Also referenced as the 12-8866 Chassis Pack, this part is handed LHRB (Left Hand Reverse Bevel) and is fire-rated compatible, making it the correct replacement or service component for fire-rated 80 Series exit device installations.

Institutional Grade Features & Benefits

• Genuine Sargent OEM Component: Factory-engineered chassis assembly built to exact Sargent tolerances, ensuring reliable, code-consistent performance in the 80 Series exit device platform.
• Core Egress Mechanism: Directly actuates latch retraction when the push bar is engaged, maintaining dependable one-motion egress required by life-safety codes.
• Fire-Rated Compatibility: Designed for use in the 12-8866 fire-rated exit device configuration, supporting installations on fire-rated door assemblies where UL-listed hardware is mandated.
• Correct Handing — LHRB: Handed Left Hand Reverse Bevel (LHRB); verify door hand before ordering. A handing reference diagram accompanies this listing.
• Precise Drop-In Serviceability: Replaces a worn or damaged chassis without requiring full device replacement, reducing maintenance cost and door downtime in commercial and institutional facilities.
• 80 Series Platform Specific: Engineered exclusively for Sargent 80 Series exit devices — do not substitute across incompatible series without verifying fit.

Applications

The Sargent 68-2343 Chassis Pack is suited for service, repair, and replacement applications in commercial buildings, institutional facilities, schools, hospitals, and any occupancy where Sargent 80 Series fire-rated exit devices are installed. It is the go-to part for locksmiths, facility maintenance teams, and door hardware distributors servicing LHRB-handed exit device assemblies requiring chassis-level repair.

Technical Details

Door Handing Reference

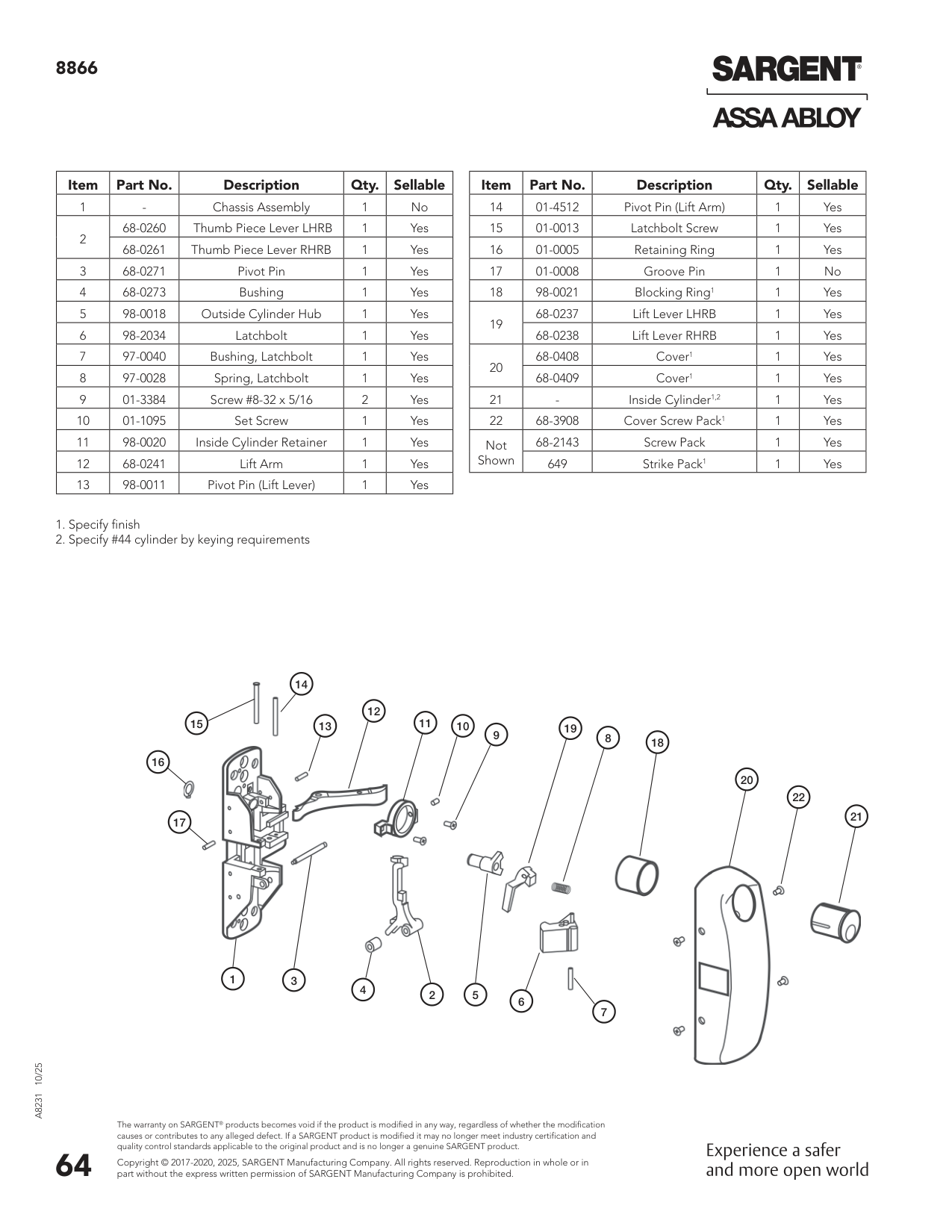

Parts List Illustration
