Sargent 68-2336 Chassis Pack for 80 Series Exit Device — RHRB

The Sargent 68-2336 is a factory-replacement Chassis Assembly (also referred to as a chassis pack) engineered specifically for the Sargent 80 Series exit device. This component serves as the core operating chassis of the exit device: when the push bar is depressed, the push rail transfers that force to the chassis, which retracts the latch bolt to permit egress. Handing: RHRB (Right Hand Reverse Bevel). Designed for direct OEM compatibility, the 68-2336 chassis pack restores proper exit device operation without the need to replace the entire unit, making it an efficient, cost-effective solution for facility maintenance, service contractors, and institutional door hardware professionals.

Institutional Grade Features & Benefits

• OEM-Accurate Replacement: Manufactured to Sargent factory specifications, ensuring a precise fit and reliable function within the 80 Series exit device system.
• Core Egress Mechanism: Serves as the heart of the exit device — directly manages latch retraction when the push rail is actuated, maintaining code-compliant egress performance.
• Fire-Rated Device Compatible: Verified for use with the Sargent 12-8863, a fire-rated 80 Series exit device, supporting installations where fire-rated door assemblies are required.
• Reduces Downtime: Swapping the chassis pack rather than the entire exit device dramatically reduces labor time and hardware costs during repair or refurbishment projects.
• Correct Handing: Supplied in RHRB hand — verify door handing before ordering; see the handing diagram accompanying this listing.
• Trusted Sargent Quality: Part of Sargent's professional-grade exit hardware product line, backed by decades of commercial and institutional door hardware engineering.

Applications

The Sargent 68-2336 chassis pack is well-suited for commercial buildings, schools, hospitals, government facilities, and any institutional environment utilizing Sargent 80 Series panic hardware or fire exit hardware. It is the preferred solution when an existing exit device chassis has worn, failed, or been damaged and a full device replacement is not warranted.

Technical Details

Door Handing Reference

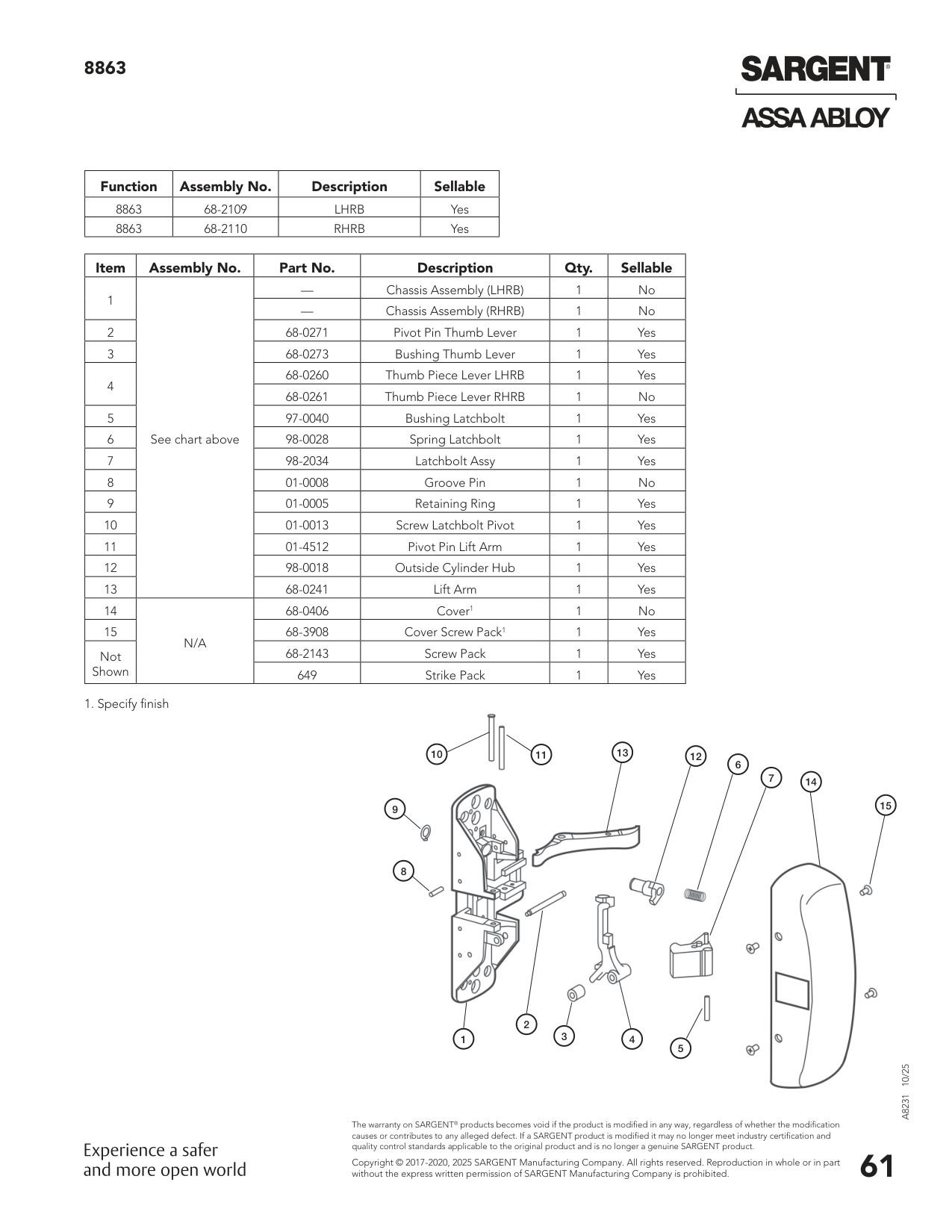

Parts List Illustration
