Sargent 68-2335 Chassis Pack for 80 Series Exit Device — LHRB

The Sargent 68-2335 Chassis Pack (also referenced as the 12-8863 Chassis Pack) is an OEM-replacement chassis assembly engineered specifically for the Sargent 80 Series exit device. This core operating component sits at the heart of the exit device mechanism: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to permit egress. Designed for Left Hand Reverse Bevel (LHRB) applications, this chassis pack is a precision-fit solution for restoring or maintaining reliable panic-hardware performance on fire-rated door assemblies.

Institutional-Grade Features & Benefits

• OEM Sargent Replacement: Manufactured to original Sargent specifications, ensuring a precise fit and consistent performance within the 80 Series exit device platform — no field modification required.
• Core Latch-Retraction Mechanism: Serves as the functional heart of the exit device; translates push-rail force into latch retraction for dependable, code-compliant egress every time.
• Fire-Rated Assembly Compatibility: Engineered to work within the Sargent 12-8863 fire-rated exit device, maintaining the integrity of rated door and frame assemblies where life-safety compliance is critical.
• LHRB Handing: Factory-configured for Left Hand Reverse Bevel door applications — see the handing diagram included with this listing to confirm your door preparation.
• Targeted Part Replacement: Allows facility managers, door hardware professionals, and locksmiths to replace only the worn or damaged chassis assembly rather than the entire exit device, reducing parts cost and downtime.
• 80 Series Platform Fit: Confirmed compatibility within the Sargent 80 Series exit device family, one of the most widely installed commercial panic hardware lines in institutional, educational, and healthcare facilities.

Technical Details

Door Handing Reference

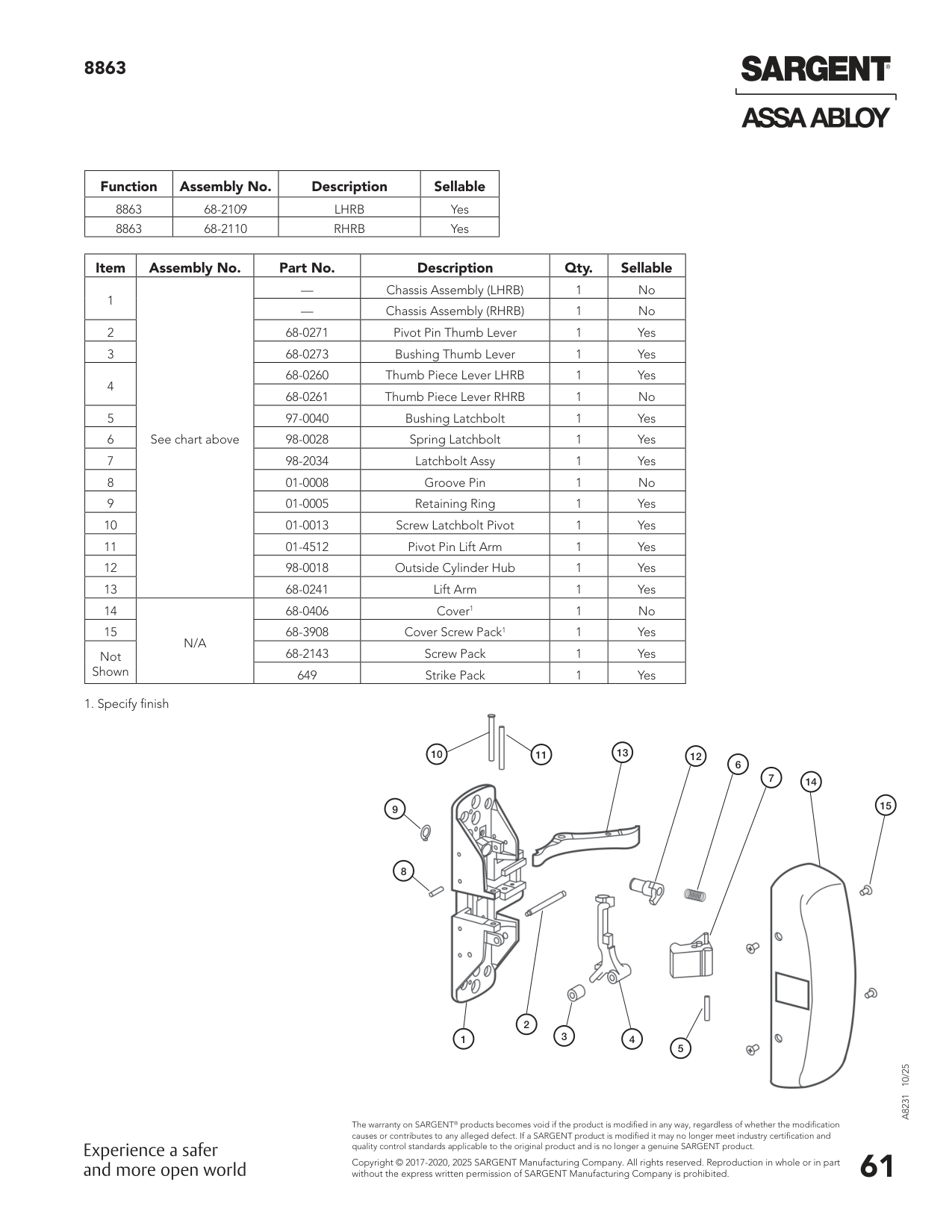

Parts List Illustration
