Sargent 68-2315 Chassis Assembly for 8866 Exit Device — LHRB

The Sargent 68-2315 is an OEM Chassis Assembly engineered as the core operating component of the Sargent 8866 exit device in the 80 Series product line. This assembly serves as the mechanical heart of the exit device: when the push bar is depressed, the push rail transfers that force directly to the chassis, which retracts the latch bolt to allow immediate, code-compliant egress. Handing for this chassis assembly is LHRB (Left Hand Reverse Bevel). Sourcing a genuine Sargent OEM chassis assembly ensures precise fit, reliable function, and long service life — critical for high-traffic commercial doors where exit device performance is non-negotiable.

Institutional Grade Features & Benefits

• OEM Sargent Component: Manufactured to the exact tolerances of the original 8866 exit device, ensuring drop-in replacement with no modification required.
• Core Mechanical Function: Acts as the primary force-transfer mechanism — converting push-bar actuation into latch retraction for safe, immediate egress.
• 80 Series Compatibility: Designed exclusively for the Sargent 80 Series exit device platform, maintaining the integrity and performance of the full device assembly.
• LHRB Handing: Configured for Left Hand Reverse Bevel applications; handing is fixed to this chassis assembly.
• Reliable Egress Performance: Supports life-safety and building-code compliance demands in commercial, institutional, and industrial door openings.
• Direct Replacement Part: Ideal for maintenance, repair, and restoration of existing Sargent 8866 exit devices without replacing the entire unit.

Technical Specifications

• Compatible Exit Device Model: Sargent 8866 (80 Series)
• Part Type: Chassis Assembly
• Handing: LHRB
• Product Class: Exit Device Component
• Brand: Sargent

Technical Details

Door Handing Reference

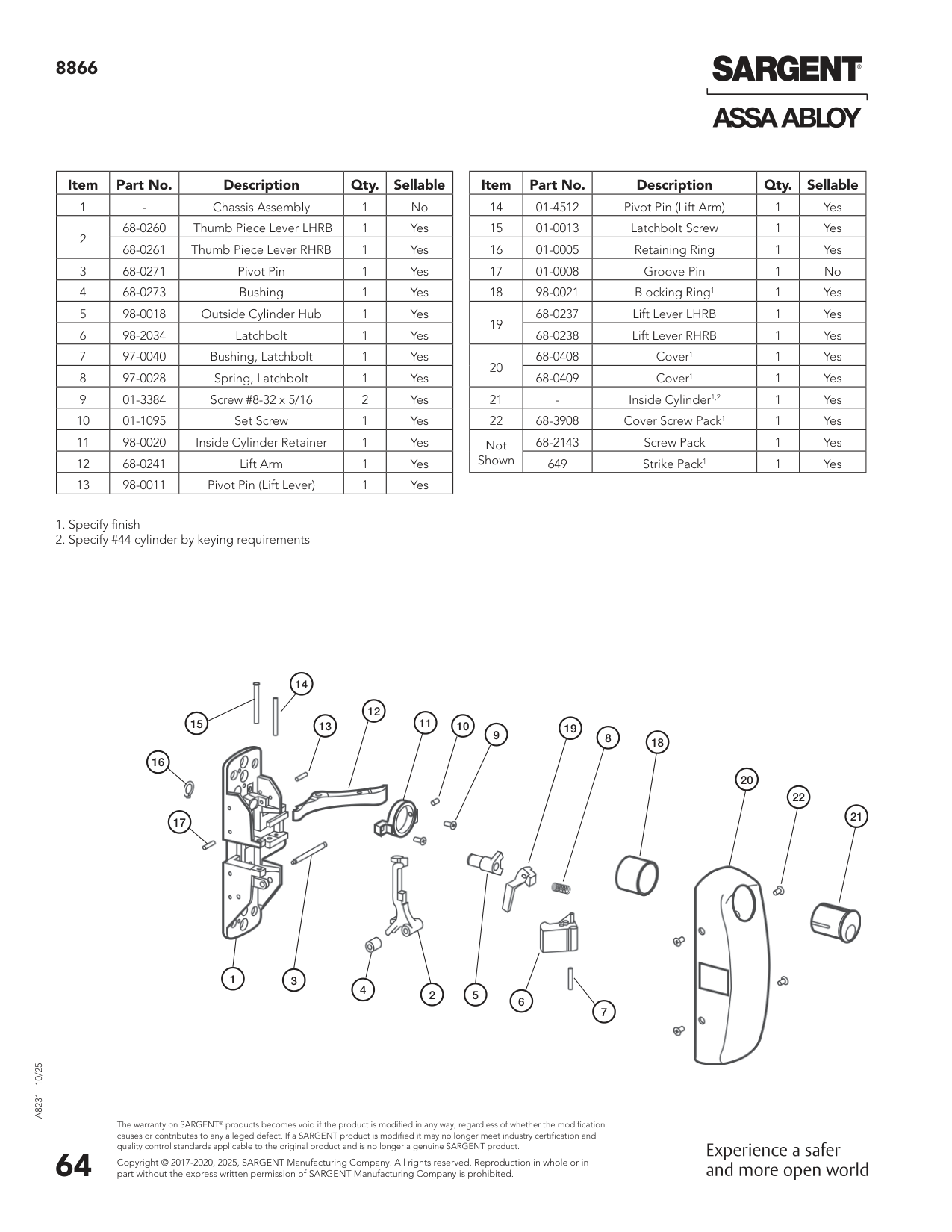

Parts List Illustration
