Sargent 68-2308 Chassis Assembly for 8863 Exit Device — 80 Series RHRB
The Sargent 68-2308 is a Chassis Assembly (also referenced as a Chassis Pack) engineered specifically for the Sargent 80 Series exit device. This is the core operating chassis assembly within the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow immediate egress. Handing: RHRB (Right Hand Reverse Bevel). Compatible exit device model: Sargent 8863.
Institutional-Grade Features & Benefits
- OEM Sargent Replacement Part: Genuine Sargent 80 Series chassis assembly ensures precise fit, consistent performance, and maintained device certification.
- Core Egress Mechanism: Serves as the mechanical heart of the exit device — directly responsible for latch retraction upon push-bar actuation for reliable, code-compliant egress.
- Series-Specific Engineering: Designed and dimensioned exclusively for the Sargent 80 Series exit device platform, eliminating guesswork during repair or replacement.
- Model-Specific Compatibility: Confirmed fit for the Sargent 8863 exit device, reducing the risk of incorrect part selection on service calls.
- RHRB Handing: Configured for Right Hand Reverse Bevel applications — refer to the handing diagram included with this listing to confirm door hand before ordering.
- Minimizes Downtime: Stocking or ordering this chassis assembly by part number 68-2308 supports fast, accurate servicing of Sargent 80 Series exit devices in commercial and institutional facilities.
Typical Applications
The Sargent 68-2308 chassis assembly is well-suited for facilities maintenance, locksmith service work, and exit device repair in commercial buildings, schools, hospitals, government facilities, and other high-traffic environments where Sargent 80 Series exit devices are installed. Replacing a worn or failed chassis restores proper latch-retraction function and helps maintain life-safety compliance on exit doors.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-2308 |
| Part Type | Chassis Assembly (Chassis Pack) |
| Product Class | Exit Device Component |
| Series Compatibility | Sargent 80 Series |
| Compatible Exit Device Model | Sargent 8863 |
| Handing | RHRB (Right Hand Reverse Bevel) |
Door Handing Reference

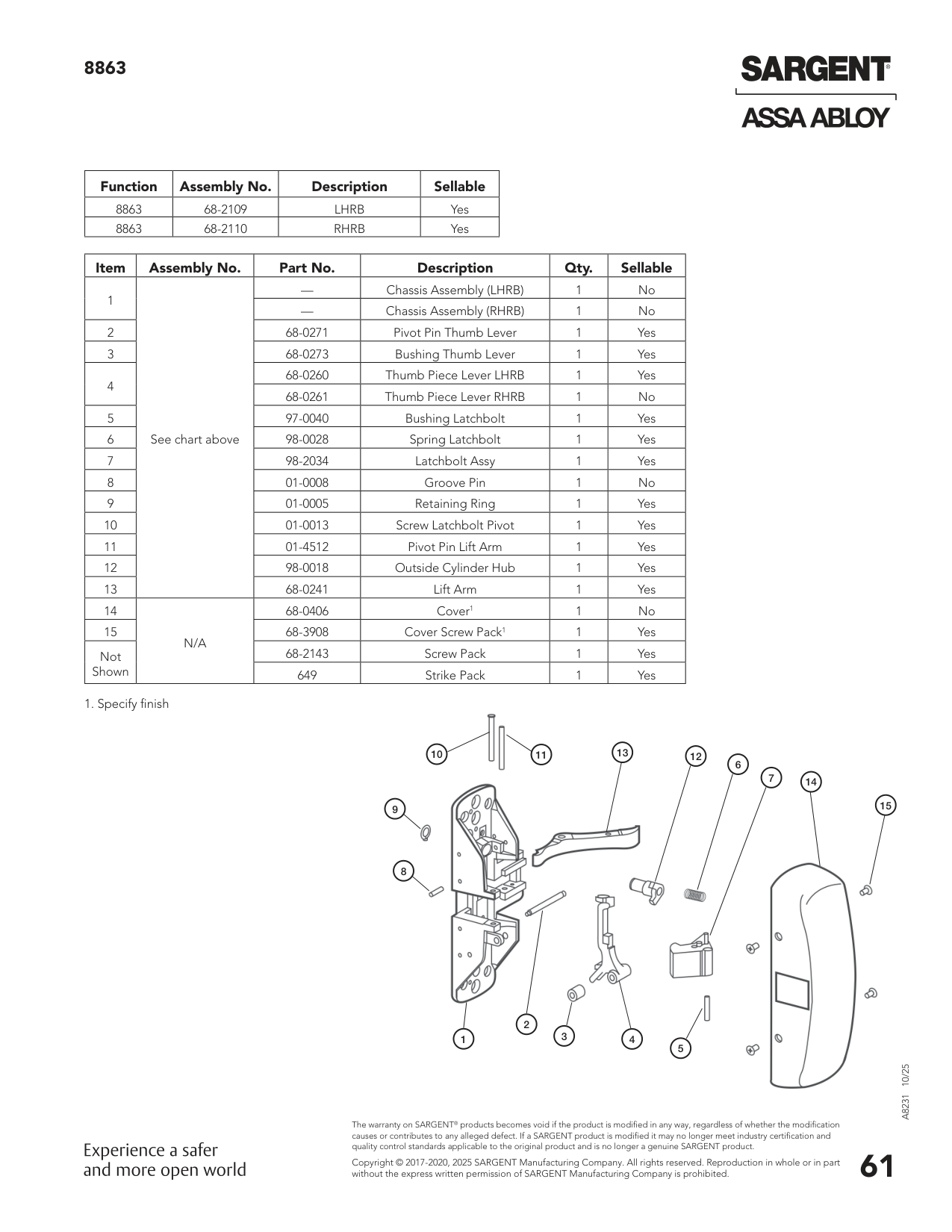

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
