Sargent 68-2263 Chassis Pack – 80 Series Exit Device Chassis Assembly (RHRB)

The Sargent 68-2263 is a genuine OEM Chassis Assembly (Chassis Pack) engineered specifically for the Sargent 80 Series exit device. This core operating component serves as the mechanical heart of the exit device: when the push bar is depressed, the push rail transfers that force directly to this chassis, which in turn retracts the latch to allow safe, code-compliant egress. Handing for this chassis pack is RHRB (Right Hand Reverse Bevel). The 68-2263 is compatible with the fire-rated Sargent 12-8710 exit device.

Institutional Grade Features & Benefits

• Genuine Sargent OEM Component: Factory-engineered chassis assembly ensures precise fit, reliable operation, and full compatibility with the 80 Series exit device platform.
• Core Egress Mechanism: Directly receives force from the push rail when the push bar is actuated and retracts the latch for smooth, dependable egress every time.
• Fire-Rated Device Compatibility: Designed to work with the Sargent 12-8710 fire-rated exit device, supporting life-safety compliance in fire-rated door assemblies.
• Correct Handing – RHRB: Specified as Right Hand Reverse Bevel for precise installation on the correct door hand; a handing diagram accompanies this listing.
• Reliable Replacement or Repair Solution: Replacing a worn or damaged chassis assembly restores full exit device function, extending the service life of the existing 80 Series hardware without full unit replacement.
• Professional-Grade Durability: Built to Sargent's commercial and institutional standards for high-cycle, high-traffic door applications.

Technical Specifications

• Compatible Exit Device Series: Sargent 80 Series
• Compatible Exit Device Model: 12-8710 (Fire-Rated)
• Handing: RHRB (Right Hand Reverse Bevel)
• Part Type: Chassis Assembly (Chassis Pack)
• Product Class: Exit Device Component
• Brand: Sargent

Technical Details

Door Handing Reference

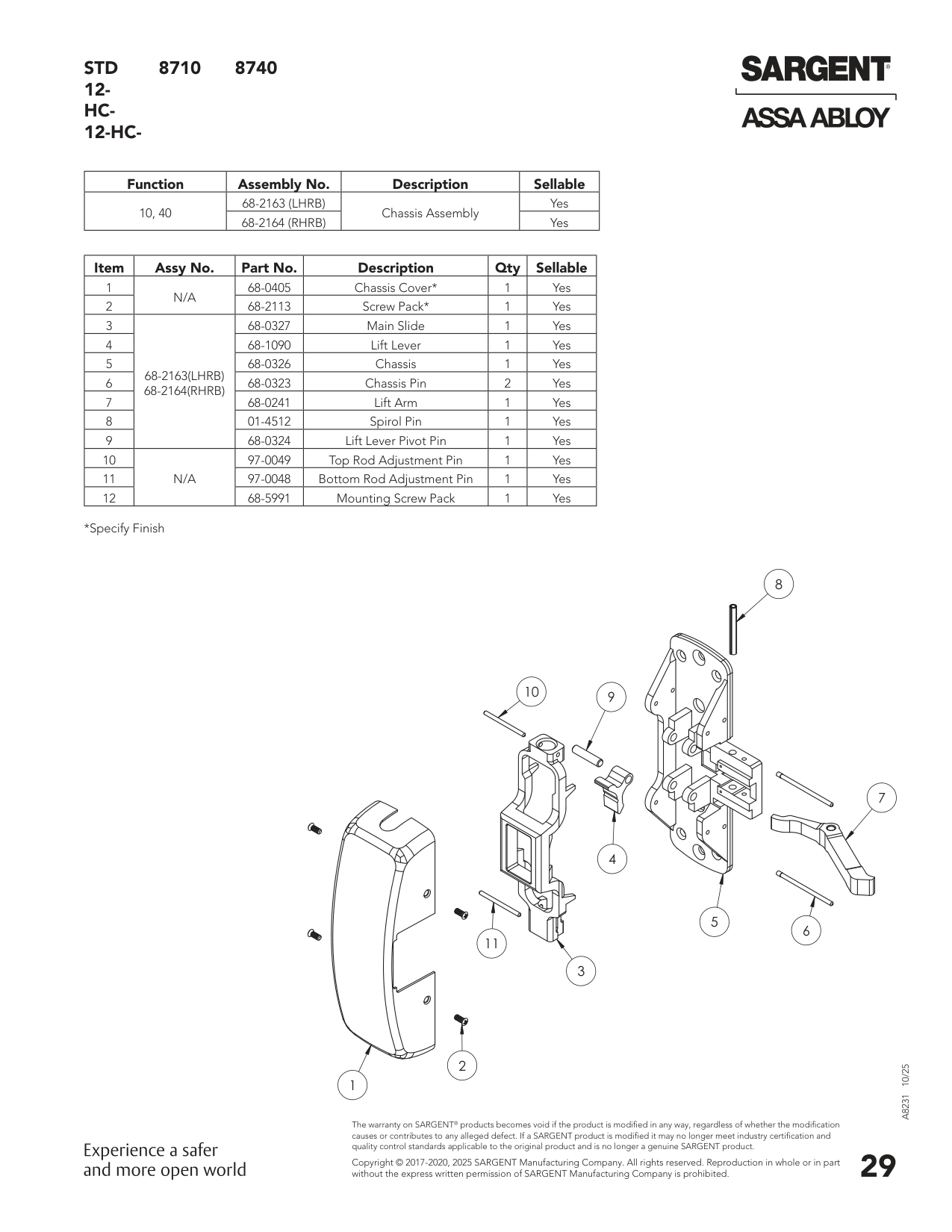

Parts List Illustration
