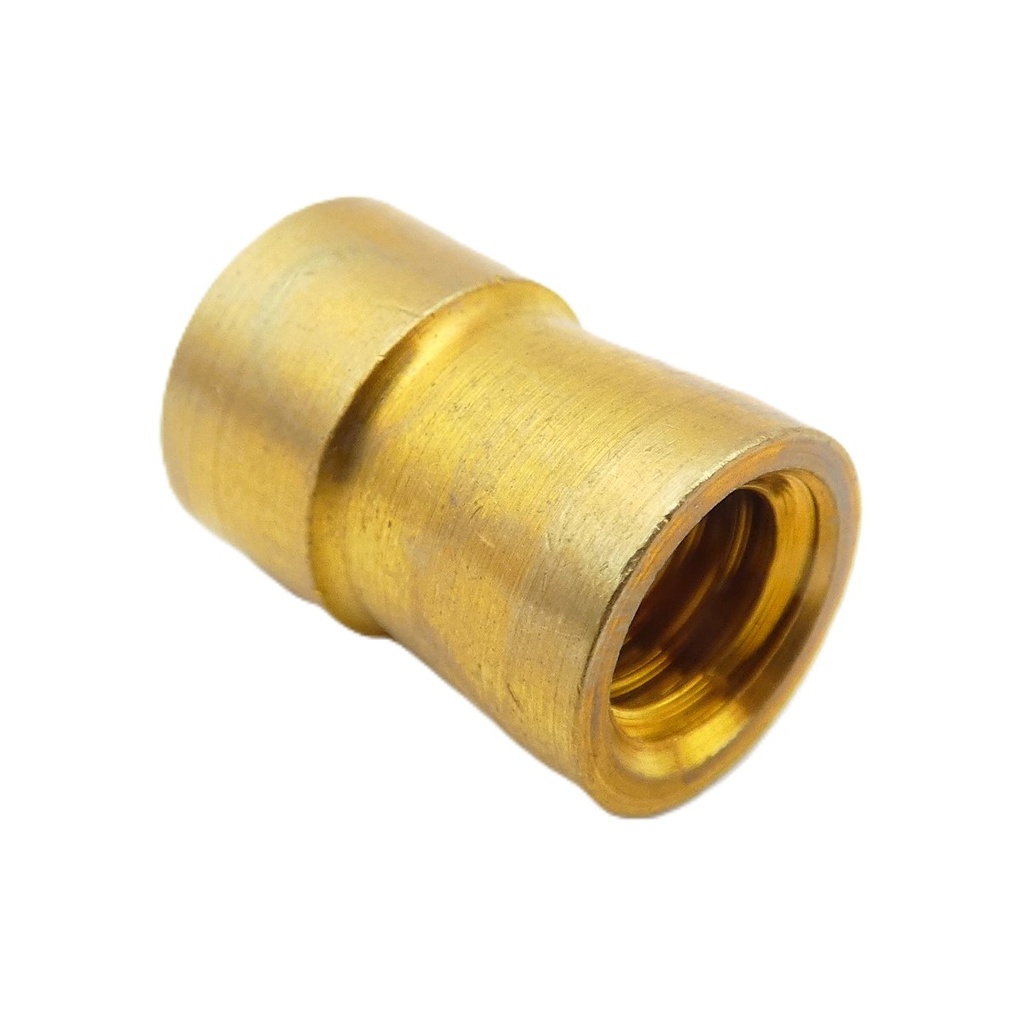

Rockwood SP1068 Cone Head Union | 5/16-18 Conversion Fitting
The Rockwood SP1068 is a high-strength architectural adapter designed to convert single cone head concealed mounting to a secure thru-bolted configuration. Precision-machined from solid brass, this 5/8" union allows facility managers to upgrade existing "blind" mounts to a more robust through-the-door connection. This is the ideal solution for 1" diameter pull handles and push bars in high-traffic commercial environments where maximum stability is required.
Professional Grade Hardware Conversion
- Mounting Versatility: Specifically engineered to transform Type 6 concealed mounts into a high-security thru-bolt system, providing a permanent mechanical link through the door core.
- Solid Brass Construction: Forged from premium brass for superior thread integrity and corrosion resistance, ensuring the fitting won't seize or strip over time.
- Optimized for 1" Pulls: Sized specifically for use with 1-inch diameter push bars and pull handles, the standard for modern retail and office entrances.
- Industrial Strength: The 5/16-18 thread pattern is designed for heavy-duty applications, offering higher shear strength than standard 1/4-20 hardware.
- Compact 5/8" Profile: The low-profile design allows the union to sit perfectly within the handle housing, maintaining a clean, professional appearance after the conversion.
Technical Specifications
- Model: Rockwood SP1068
- Material: Solid Brass
- Thread Size: 5/16-18
- Length: 5/8"
- Function: Concealed to Thru-Bolt Conversion
- Compatibility: 1" Diameter Rockwood Push/Pull Bars
| Brand | Rockwood |
| Thread Pattern | 5/16-18 |
| Screw Type | Single Cone Union |
