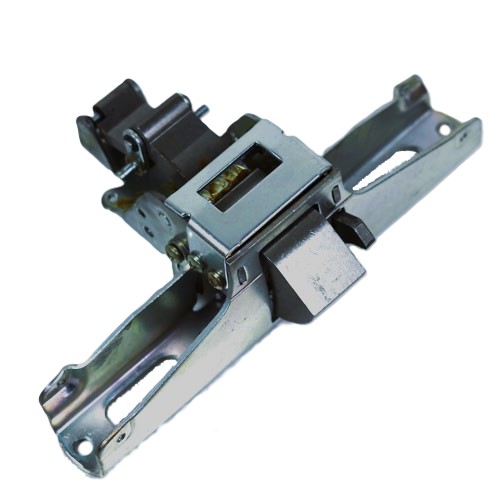

Corbin Russwin 650F37-8 Active Head Latch Assembly - For ED4200 Series
The Corbin Russwin 650F37-8 is a genuine OEM Active Head Latch Assembly specifically engineered for the ED4200 Series Narrow Stile Rim Exit Devices. As the primary mechanical chassis for the device, this assembly contains the internal latching mechanism that secures the door against the strike. Designed for the high-abuse environments of schools, hospitals, and commercial storefronts, the 650F37-8 ensures your exit hardware maintains its ANSI/BHMA Grade 1 performance and life-safety compliance.
Institutional Grade Features
- ED4200 Series Precision: The factory-standard replacement chassis for Corbin Russwin ED4200 narrow stile rim devices, ensuring perfect synchronization with the pushpad and exterior trim.
- Parts List Accuracy: Identified as Item #1 (the Active Head) in the official ED4200 series technical parts manual and exploded view diagrams.
- Non-Fire Rated Optimization: Purpose-built for Panic-Rated (Non-Fire) applications, featuring the necessary internal components to support manual hex-key dogging for "push-pull" operation.
- Field Reversible Handing: Designed to be field reversible, allowing for seamless installation on both Right Hand Reverse (RHR) and Left Hand Reverse (LHR) door configurations.
- Narrow Stile Architecture: Engineered to fit the slim profiles of aluminum and glass storefront doors while providing the heavy-duty security of a full-size rim device.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 650F37-8 (also referenced as 650F378)
- Compatible Series: ED4200 Narrow Stile Rim Exit Devices
- Part Type: Active Head / Latch Assembly / Chassis
- Application: Non-Fire Rated Doors (Panic Hardware)
- Handing: Non-handed (Field Reversible)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED4200 Series |
| Part Type | Chassis Assembly |
| Fire Rated | Non-Rated |
