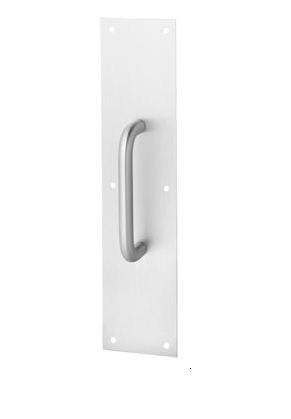

Rockwood Pull Plate 105 x 70C
Push Plate Size: 4" x 16" x .050 thick
Material: Stainless Steel
Fastener: 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
Mounting Type: Type 1
Pull Handle Dimensions:
- Pull Handle CTC: 5-1/2"
- Pull Handle Overall: 6-1/4"
- Base diameter: 3/4"
- Projection: 2-1/4"
- Clearance: 1-1/2"
ANSI: A156.6: J405
*** Pull Plate shown is not intended for Back-to-Back mounting. Please contact us for a quote if this is your application ***
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Center to Center Distance | 5-1/2" |
| Pull Handle Overall Length | 6-1/4" |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Handle Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
Rockwood Condensed Catalog 2017.pdf
Download
