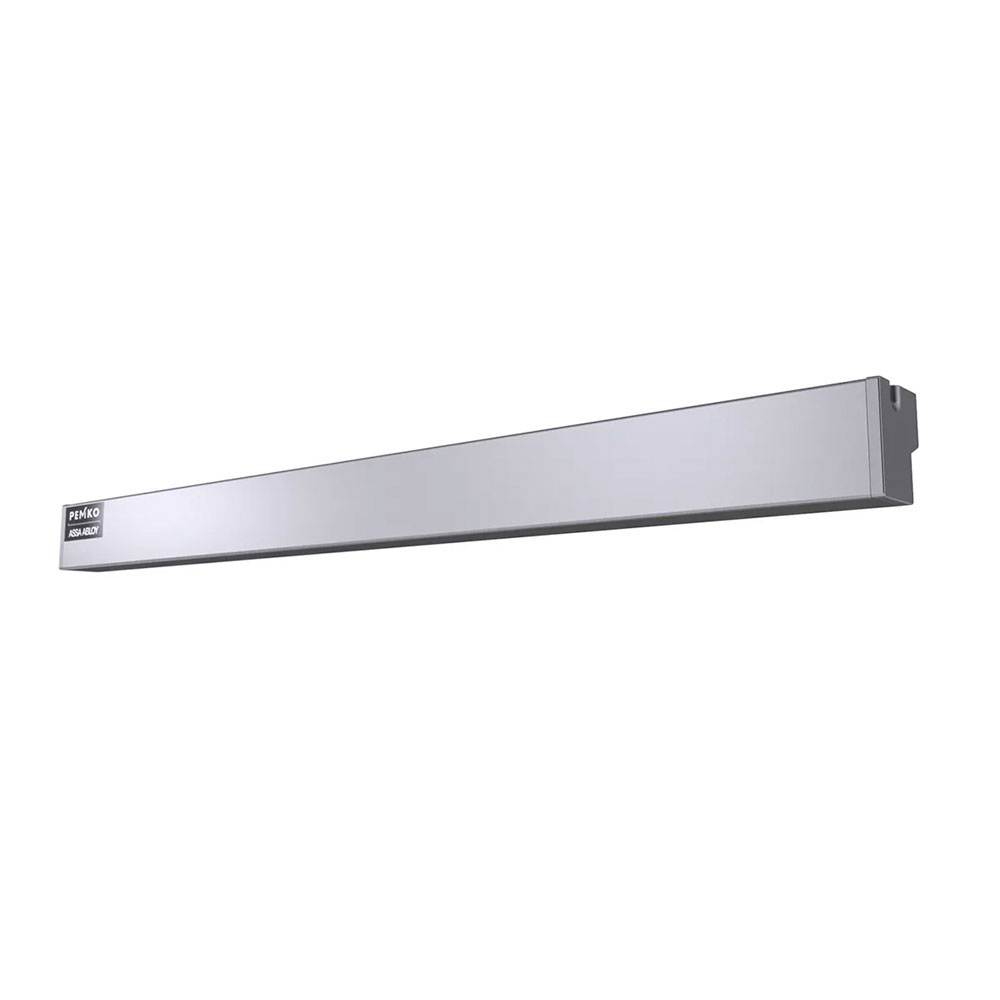

Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator
Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator
Lead Time: 1-3 Weeks
Pemko PemkoMatic PSLIDE Low Energy Automatic Sliding Door Operator

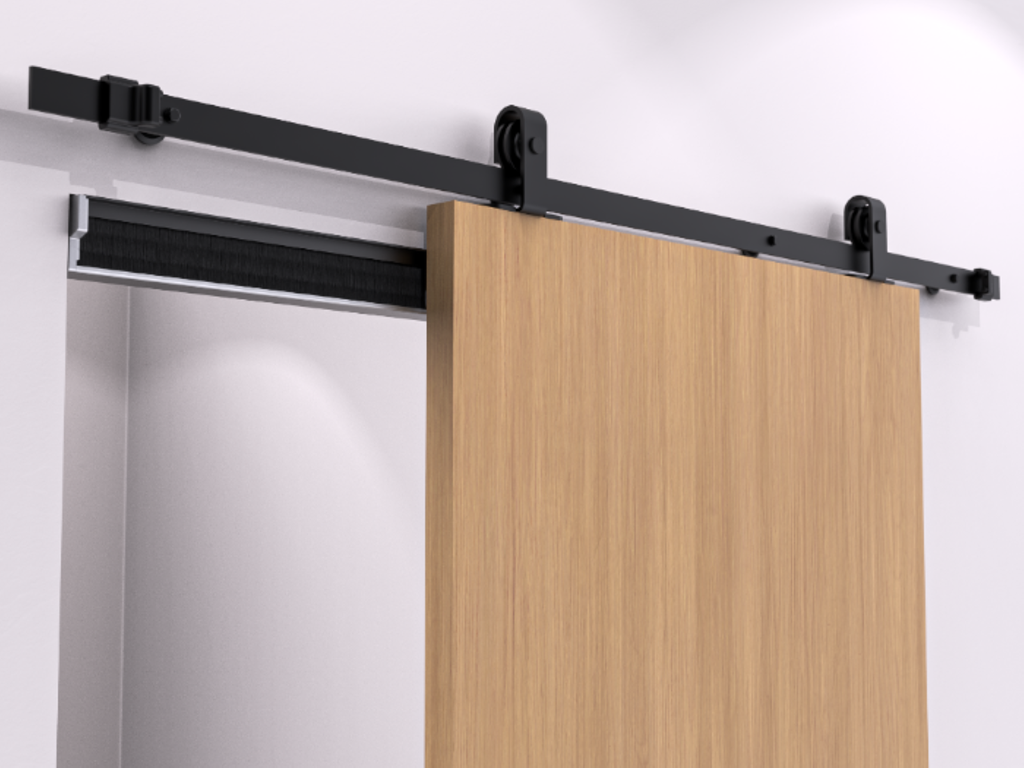

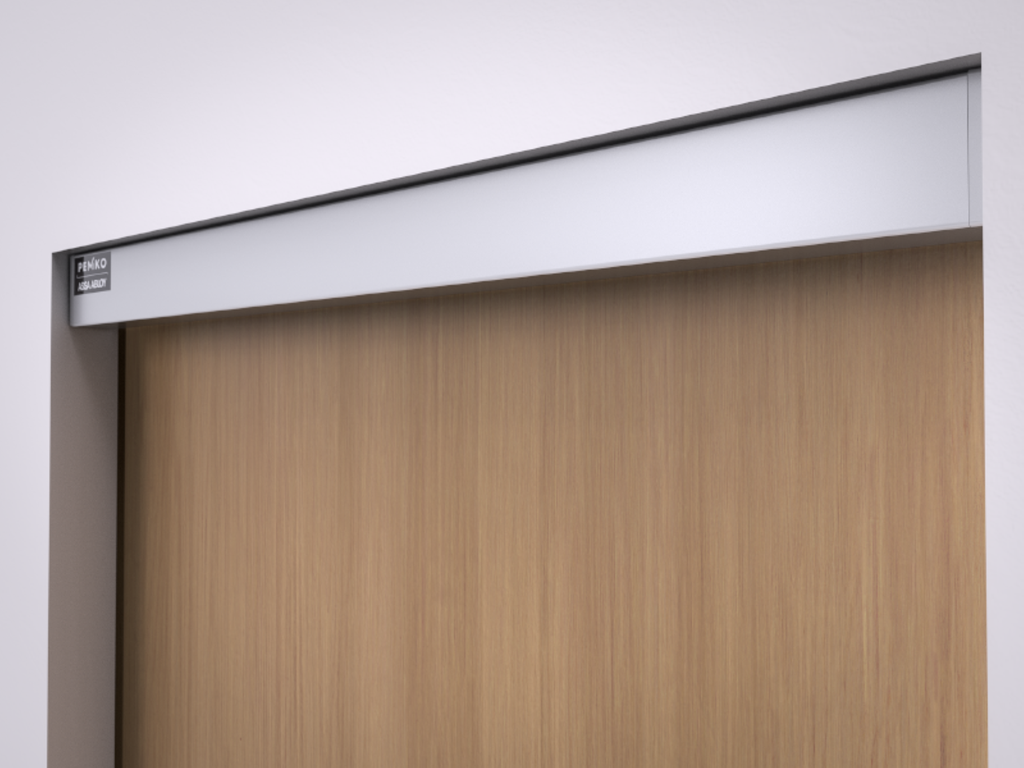

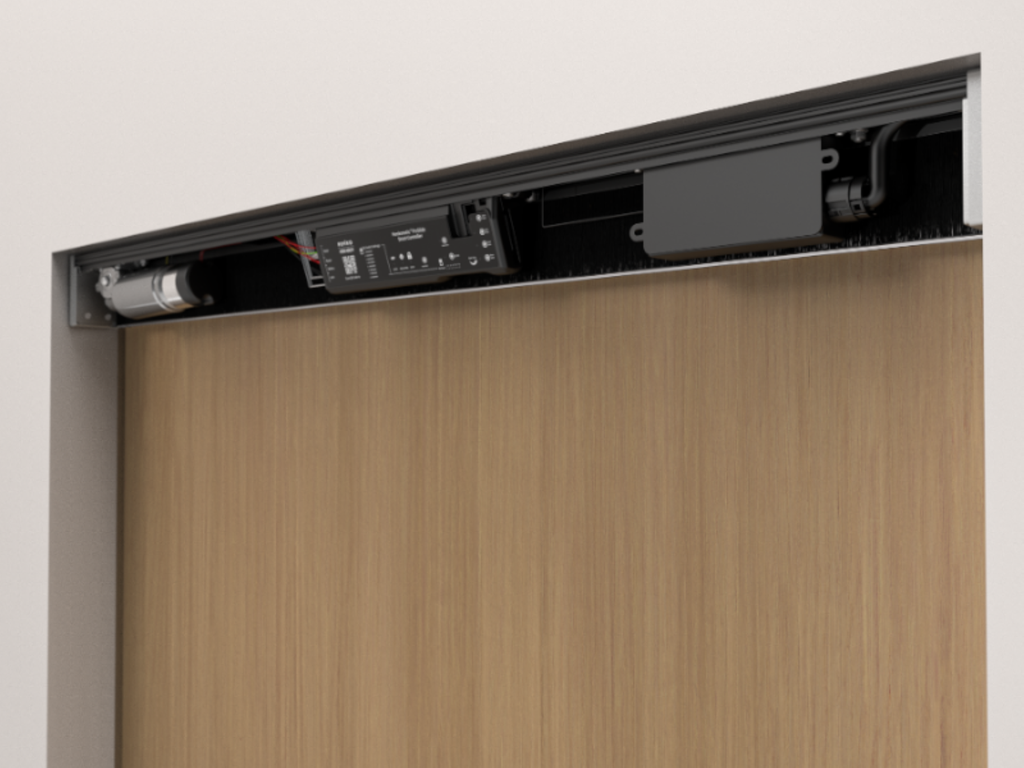

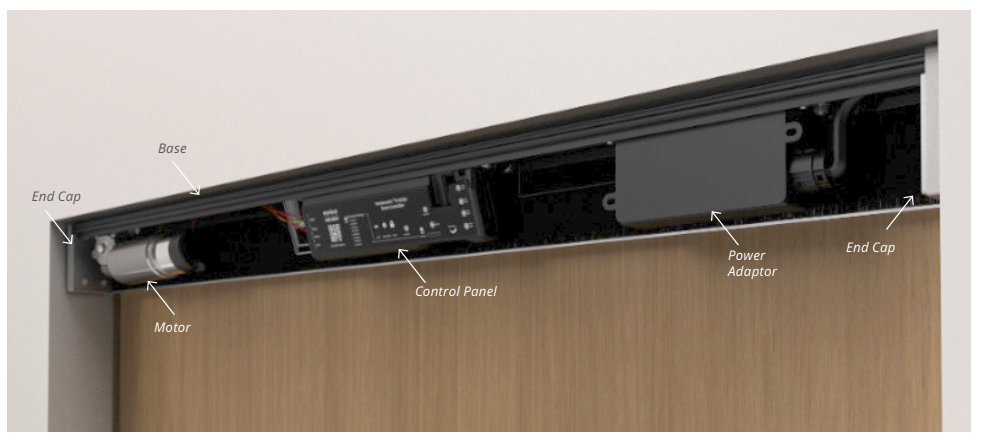

The PemkoMatic™ PSLIDE is a low-energy automatic door operating system that delivers adaptable electromechanical solutions for manual sliding doors. It includes convenient access features such as wave-to-open sensors, push buttons, and keypads. This system is designed to work seamlessly with both pocket and sliding doors, making it an excellent choice for new installations or retrofitting existing doorways. Its sleek cover enhances functionality while providing a modern, attractive look.
Features
- Can be trimmed to fit doors smaller than 36" wide for precise customization
- Supports door widths up to the maximum door weight capacity
- Two 20" tracks; additional tracks are needed for doors wider than 40"
- Optional adapter bracket available for non-header installations
- Recess into the wall for full-opening width access
- Field reversible (left-hand supplied)
- Has been tested to industry standards for cycle testing:
- Tested over 1 million cycles (in AU)
- Tested over 100,000 cycles (typical certification)
- Sliding door types: Barn Door and Pocket Doors
- Fasteners, allen key, and small screwdriver included
Benefits
- Customizable Settings: Users can adjust the system according to their specific security and accessibility needs
- Quiet Operation: Designed for smooth and silent door movement, ideal for residential and commercial settings
- Durable Construction: Built to withstand regular use while maintaining functionality and security
- User-Friendly Interface: Easy-to-use controls for operation and management of door modes

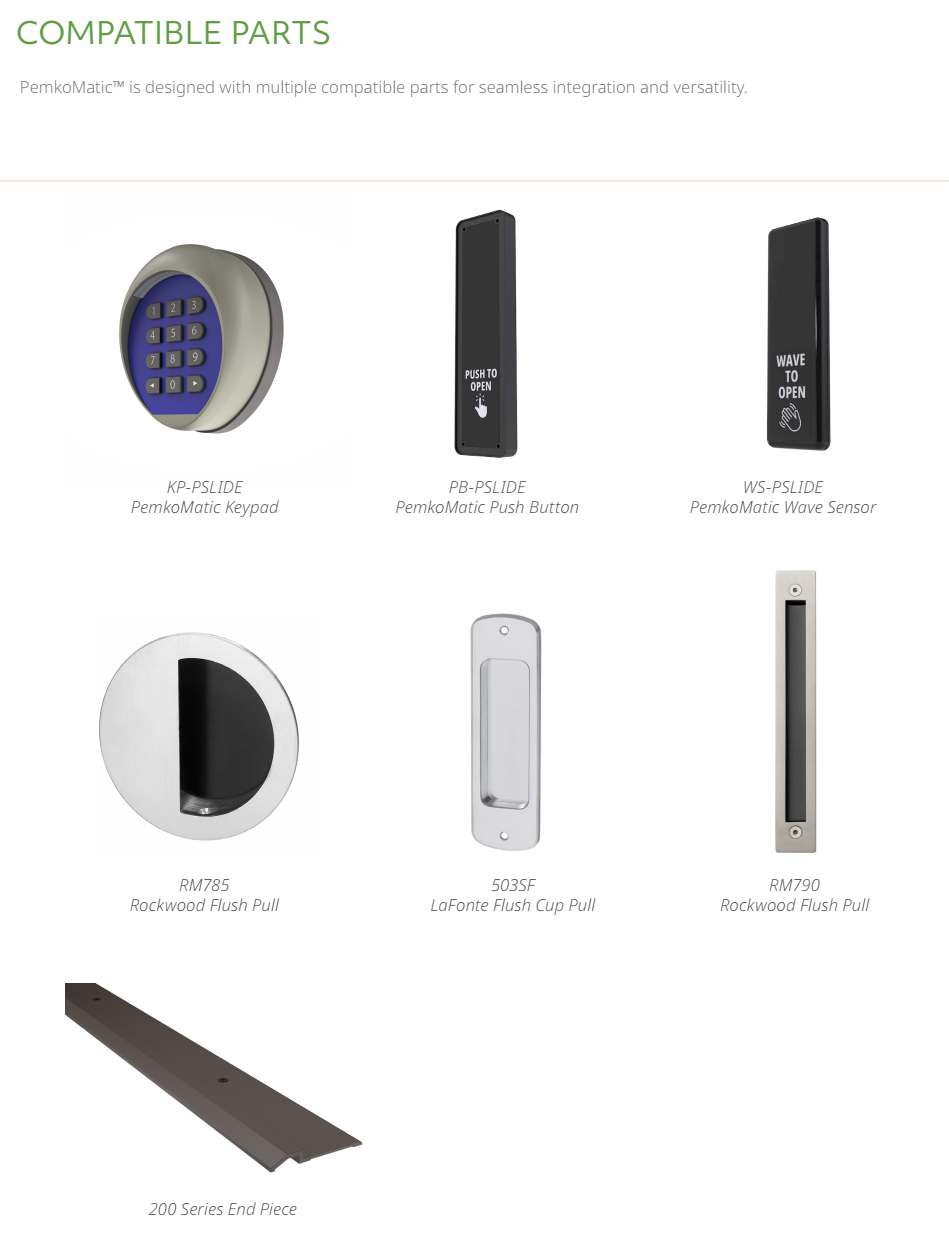

- Multiple Access Options: Access the door using a wave sensor, a numeric keypad, or a push button
- Open Time Adjustability: Can be adjusted, 0-24 seconds, via dial under the control panel
- Customizable DIP Switches: Power level for lightweight or heavy doors, slam-shut functionality, beeper alerts
Specifications
- ADA Compliant: Yes
- Door Type: Barn Door, Pocket Door
- EPD: No
- Hold Open Time: 0-24 seconds
- HPD: No
- Maximum Door Weight: 330lbs.
- Mounting Location: Face/Soffit Mount, Under Header
- Overall Height: 3"
- Overall Length: 36"
- Overall Width: 2 1/2"
- Track Length: 20"
- Track Material: Plastic
- Traffic Rating: Moderate to High Traffic
- Voltage Input: 120v AC
Certifications
- FCC Part 15 Compliant
- Americans with Disabilities Act (ADA) Compliant
- UL 325 Listed
- Tested to ANSI A156.38, Low Energy Power Operated Sliding and Folding Doors
| Finish with BHMA code | 628 - Clear Anodized Aluminum or BSP - Black Suede Powder Coat or WSP - White Suede Powder Coat |
| Brand | Pemko |
| Trackset Type | Barn Door, Operator |
