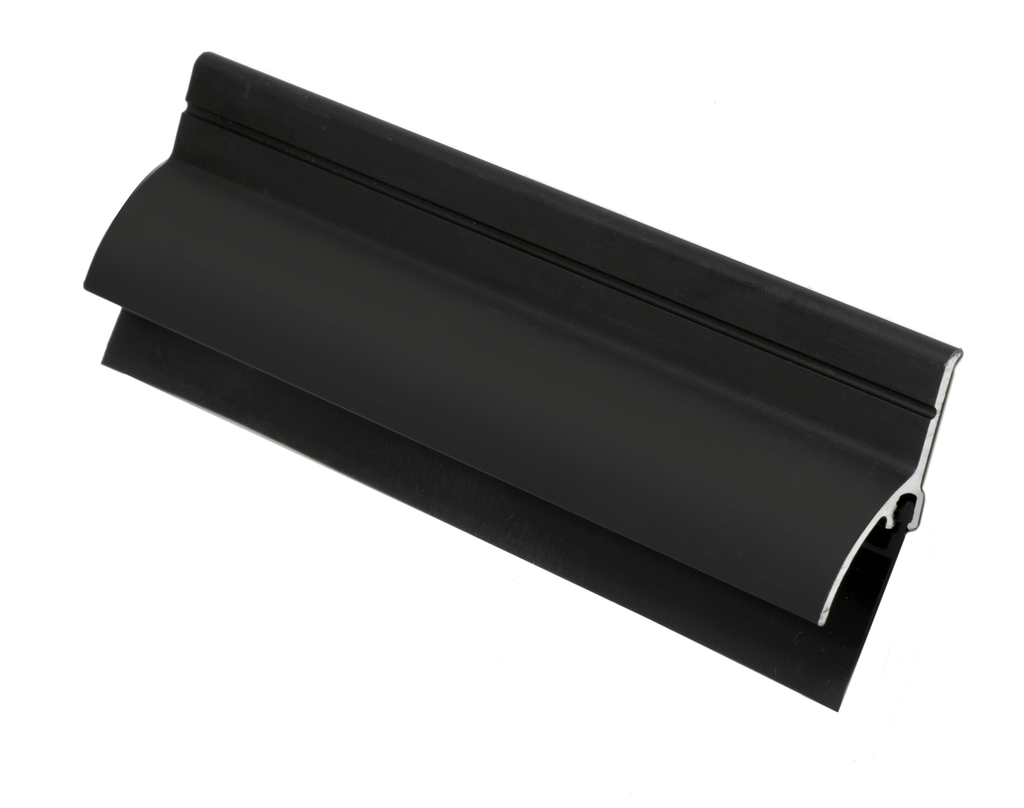

Pemko 345DV Sill Sweep with Rain Drip - Dark Bronze Anodized
The Pemko 345DV is a premium Commercial Sill Sweep engineered to provide an elite weather barrier and moisture protection for your facility. Finished in a sophisticated Dark Bronze Anodized Aluminum, this sweep features an integrated Rain Drip flange specifically designed to redirect water away from the threshold. The 345DV is equipped with a high-performance Black Eco-V Vinyl Insert that utilizes a unique "extra flap" design to lock the gasket securely within the housing, preventing the seal from pulling out during heavy use.
High-Performance & Weatherproofing Features
- Integrated Rain Drip Deflector: The exterior-facing flange sheds heavy rain away from the door-to-floor gap, preventing water from wicking into the door core or leaking into the building.
- Black Eco-V Vinyl Seal: The EV54 black vinyl insert provides a multi-fingered seal that blocks drafts, dust, and light. This material remains effective in temperatures ranging from -4° F to +122° F.
- Life Safety & Smoke Certified: Rigorously tested to meet UL 1784 smoke leakage standards and UL 10C for positive pressure, making it a critical component for fire-rated commercial openings.
- Precision Adjustability: The aluminum retainer is punched with elongated slotted holes, allowing for vertical adjustments to ensure the sweep perfectly aligns with the bevel of your threshold.
- Sustainability & Health: GREENGUARD Gold Certified for low chemical emissions, supporting healthy indoor air quality and LEED-certified building projects.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 345DV
- Retainer Dimensions: 9/16" Width x 2" Total Height (with insert)
- Finish: Dark Bronze Anodized Aluminum (D)
- Insert Material: Black Eco-V Vinyl (V)
- Standard Lengths: 36" and 48" (Furnished net length; field trimming required)
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL Listed, ANSI: R3D534.
Pro-Tip for Facility Managers
The Pemko 345DV is designed for installation on the exterior face (pull side) of outswing doors. For the most effective weather seal, the vinyl fingers should make firm contact with the threshold's bevel. If your building is located in an extreme cold-weather climate, consider a special order for the PemkoPrene (PK) insert, which maintains flexibility down to -22° F. To ensure peak performance, inspect the vinyl annually and replace it with a fresh EV54 black insert if it shows signs of stiffness or wear.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Bottom Weatherseal Type | Sill Sweep w/ Rain Drip |
| Material Length | 1/2" |
| Housing Length | 1-1/2" |
| Housing Finish | Dark Bronze |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
