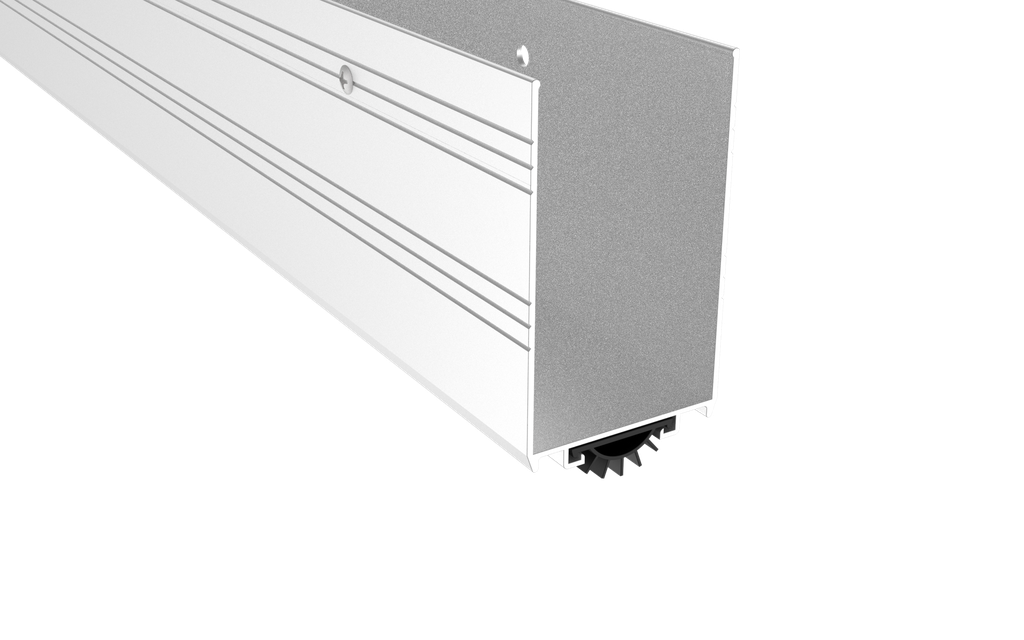

Pemko 221AV Extended Door Bottom Shoe & Kick Plate - 3" High
The Pemko 221AV is a heavy-duty U-Shaped Door Shoe and Combination Kick Plate designed for standard 1-3/4" thick doors. This specialized hardware provides a massive 3-inch high shield on both the face and back of the door, offering maximum protection against heavy traffic abuse, carts, and equipment. Beyond protection, the 221AV is the premier choice for restoring rusted or damaged doors, effectively "capping" the base to extend the life of the opening while providing a superior weather seal.
High-Performance & Restoration Features
- Integrated 3" Kick Plate: The extended aluminum casing provides a rugged barrier against physical damage, making it ideal for hospital corridors, schools, and loading docks.
- Door Restoration Solution: Perfectly covers and reinforces badly rusted or dented door bottoms, saving the high cost of full door replacement.
- Eco-V Fingered Insert: Equipped with the EV9 gray vinyl insert, featuring flexible fingers that create a multi-stage seal to block drafts, moisture, and light.
- Life Safety & Acoustic Tested: Fully certified for UL 10C Positive Pressure fire tests, UL 1784 smoke leakage, and ASTM E90 for sound attenuation.
- Adjustable Mounting: Features elongated slotted holes for easy vertical adjustment to ensure the gasket maintains a perfect seal against the threshold.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 221AV
- Casing Height: 3" (76.2 mm)
- Door Thickness: Optimized for 1-3/4" (44.5 mm)
- Finish: Mill Aluminum (A)
- Insert Material: Eco-V Gray Vinyl (V)
- Required Clearance: Maintain a 1/2" clearance from the floor or threshold for proper operation.
- Certifications: BHMA Certified (ANSI/BHMA A156.22), GREENGUARD Gold, ANSI: R3D414.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Housing Length | 3" |
| Bottom Weatherseal Type | Door Bottom |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Housing Finish | Aluminum |
| Sound Rated | Sound Rated |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
